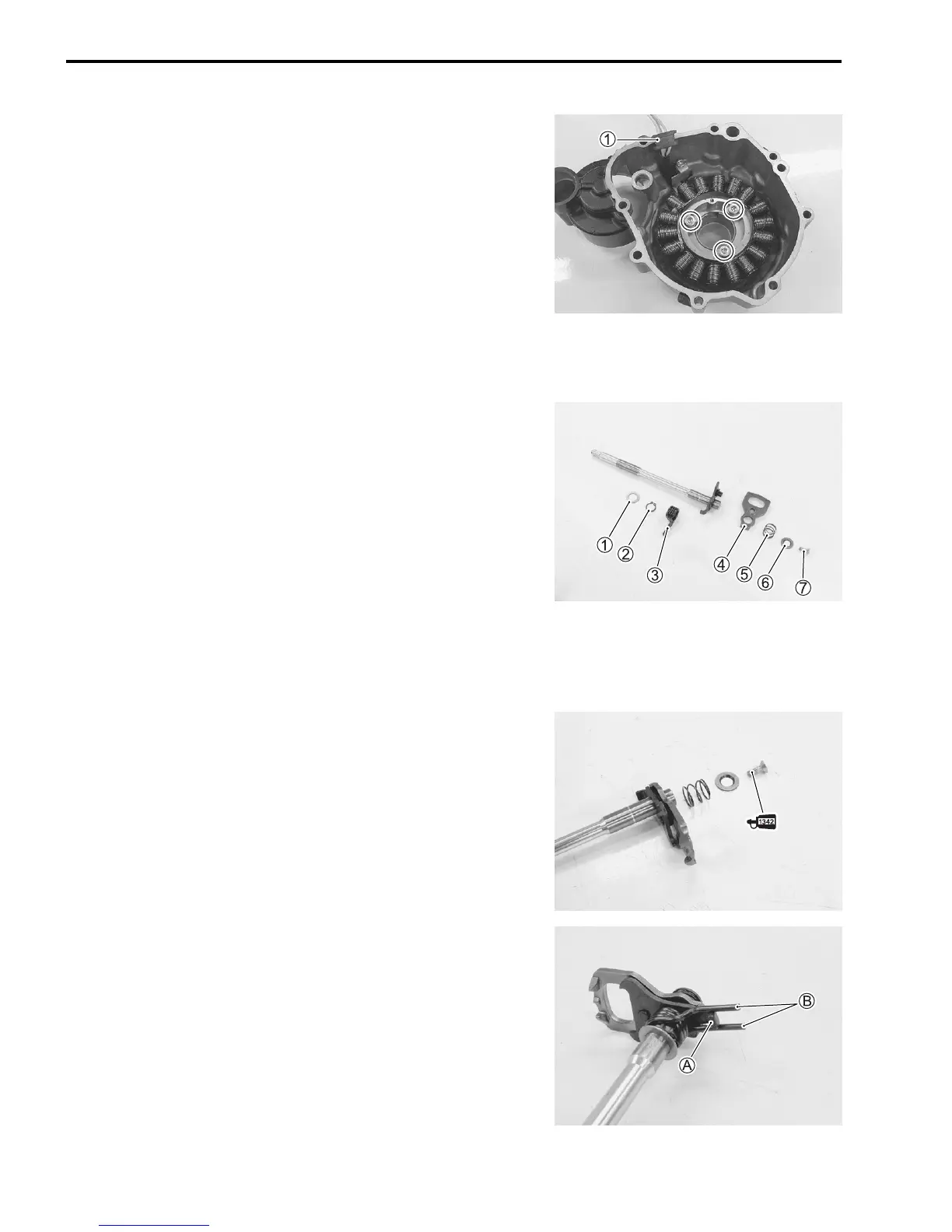

3-44 ENGINE
GENERATOR
INSPECTION (9-10)
REASSEMBLY
• When installing the generator stator set bolts, tighten them to
the specified torque.
 Generator stator set bolt: 11 N·m (1.1 kgf-m, 8.0 lb-ft)
NOTE:
Be sure to install the grommet
1 to the generator cover.
WATER PUMP
7-11
GEARSHIFT SYSTEM
GEARSHIFT SHAFT/GEARSHIFT ARM DISASSEMBLY
• Remove the following parts from the gearshift shaft/gearshift
arm.
1 Washer 5 Plate return spring
2 Snap ring 6 Washer
3 Gearshift shaft return spring 7 Screw
4 Gearshift cam drive plate
GEARSHIFT SHAFT/GEARSHIFT ARM INSPECTION
• Inspect the gearshift shaft/gearshift arm for wear or bend.
• Inspect the return springs for damage or fatigue.
• Replace the arm or spring if there is anything unusual.
GEARSHIFT SHAFT/GEARSHIFT ARM REASSEMBLY
• Apply THREAD LOCK to the gearshift shaft screw.
 99000-32050: THREAD LOCK “1342”
NOTE:
When installing the gearshift shaft return spring, position the
stopper
A of gearshift arm between the shaft return spring ends
B .

Suzuki 2006 gsxr 600 Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Bore x Stroke	67.0 mm x 42.5 mm
Compression Ratio	12.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Fuel Tank Capacity	17.0 L (4.5 US gal)
Overall Length	2, 040 mm (80.3 in)
Overall Width	715 mm (28.1 in)
Wheelbase	1, 400 mm (55.1 in)
Seat Height	810 mm (31.9 in)
Ground Clearance	130 mm (5.1 in)
Rear Suspension	Link type, oil damped
Front Tire	120/70ZR17M/C (58W)
Rear Tire	180/55ZR17M/C (73W)
