5-10 FUEL SYSTEM AND THROTTLE BODY

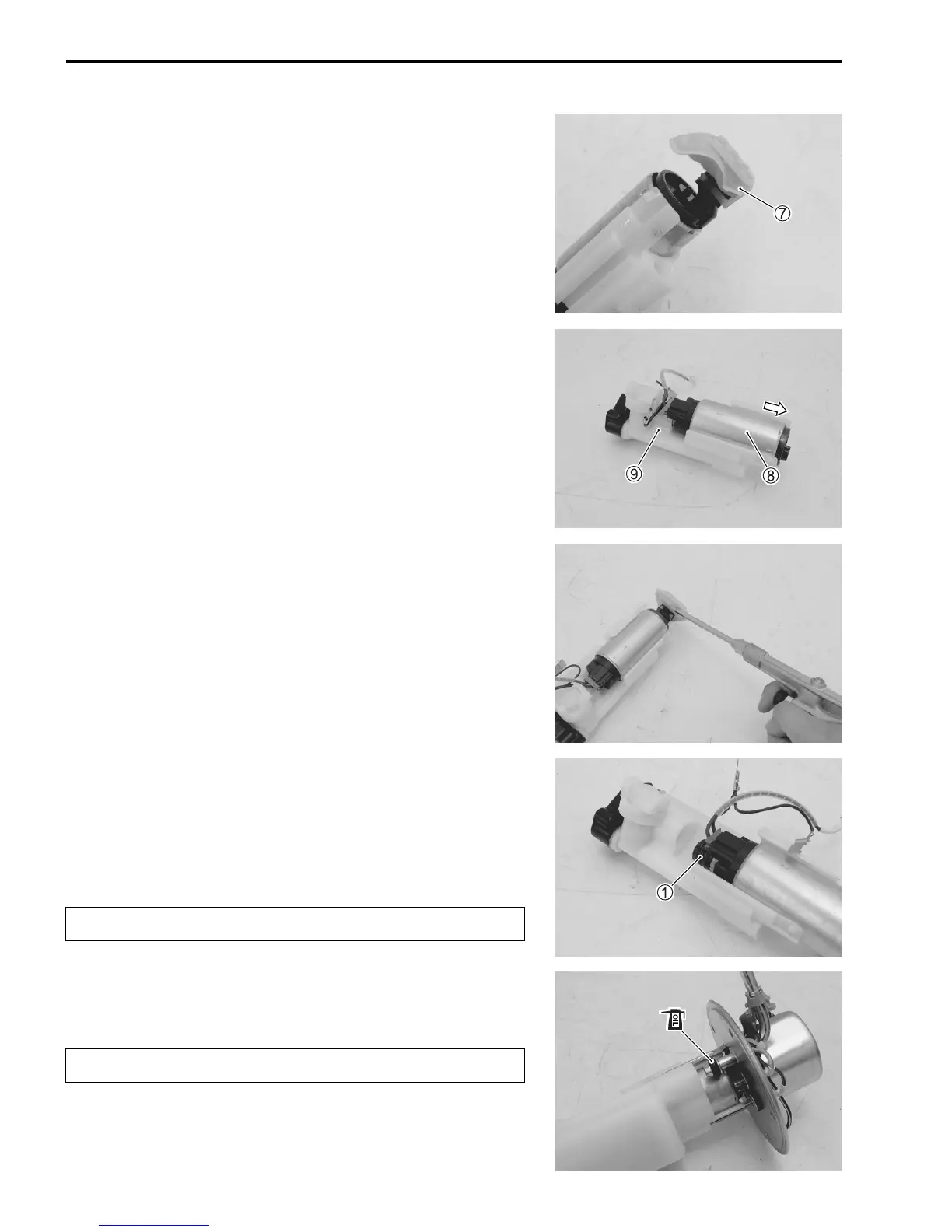

• Remove the fuel mesh filter 7.
• Remove the fuel pump 8 from the fuel pump case/fuel filter
cartridge 9.
FUEL MESH FILTER INSPECTION AND
CLEANING
If the fuel mesh filter is clogged with sediment or rust, fuel will
not flow smoothly and loss in engine power may result.
Blow the fuel mesh filter with compressed air.
NOTE:
If the fuel mesh filter is clogged with many sediment or rust,
replace the fuel filter cartridge with a new one.
FUEL PUMP AND FUEL MESH FILTER
INSTALLATION
Install the fuel pump and fuel mesh filter in the reverse order of
removal. Pay attention to the following points:
• Install new bushing 1 to the fuel pump.

• Install new O-ring to the fuel pipe.
• Apply thin coat of engine oil to the new O-ring.

Use new bushing to prevent fuel leakage.
Use new O-ring to prevent fuel leakage.

Suzuki 2006 gsxr 600 Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Bore x Stroke	67.0 mm x 42.5 mm
Compression Ratio	12.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Fuel Tank Capacity	17.0 L (4.5 US gal)
Overall Length	2, 040 mm (80.3 in)
Overall Width	715 mm (28.1 in)
Wheelbase	1, 400 mm (55.1 in)
Seat Height	810 mm (31.9 in)
Ground Clearance	130 mm (5.1 in)
Rear Suspension	Link type, oil damped
Front Tire	120/70ZR17M/C (58W)
Rear Tire	180/55ZR17M/C (73W)
