Suzuki DF100C - Over-Revolution Caution System

30
*: One flashing is corresponded to 500 hours.
After this brief check period, the monitor-
tachometer will return to their stand-by mode
and will only respond to motor conditions
requiring a caution alert.
Tot al
operating
hours
MONITOR-TACHOMETER
Needle 1
indication
REV-LIMIT
lamp 2 flashing *
0 h- (49 h) No No
50 h- 500 r/min No
60 h- 600 r/min No
:
:
:
:
:
:
540 h- 5400 r/min No
550 h- 500 r/min 1 time
560 h- 600 r/min 1 time
:
:
:
:
:
:
1040 h- 5400 r/min 1 time
1050 h- 500 r/min 2 times
:
:
:
:
:
:
1540 h- 5400 r/min 2 times
1550 h- 500 r/min 3 times
:
:
:
:
:
:
2030 h- 5300 r/min 3 times
2040 h or over 5400 r/min 3 times
NOTICE
If the Caution System is not working properly,
you may not be alerted to a condition that can
cause damage to your outboard motor.
If any of the four lamps does not come on or
the buzzer does not sound when the ignition
key is turned to the “ON” position, the lamp or
buzzer may be broken or a failure may exist in
the system circuit. Consult your authorized
Suzuki marine dealer.

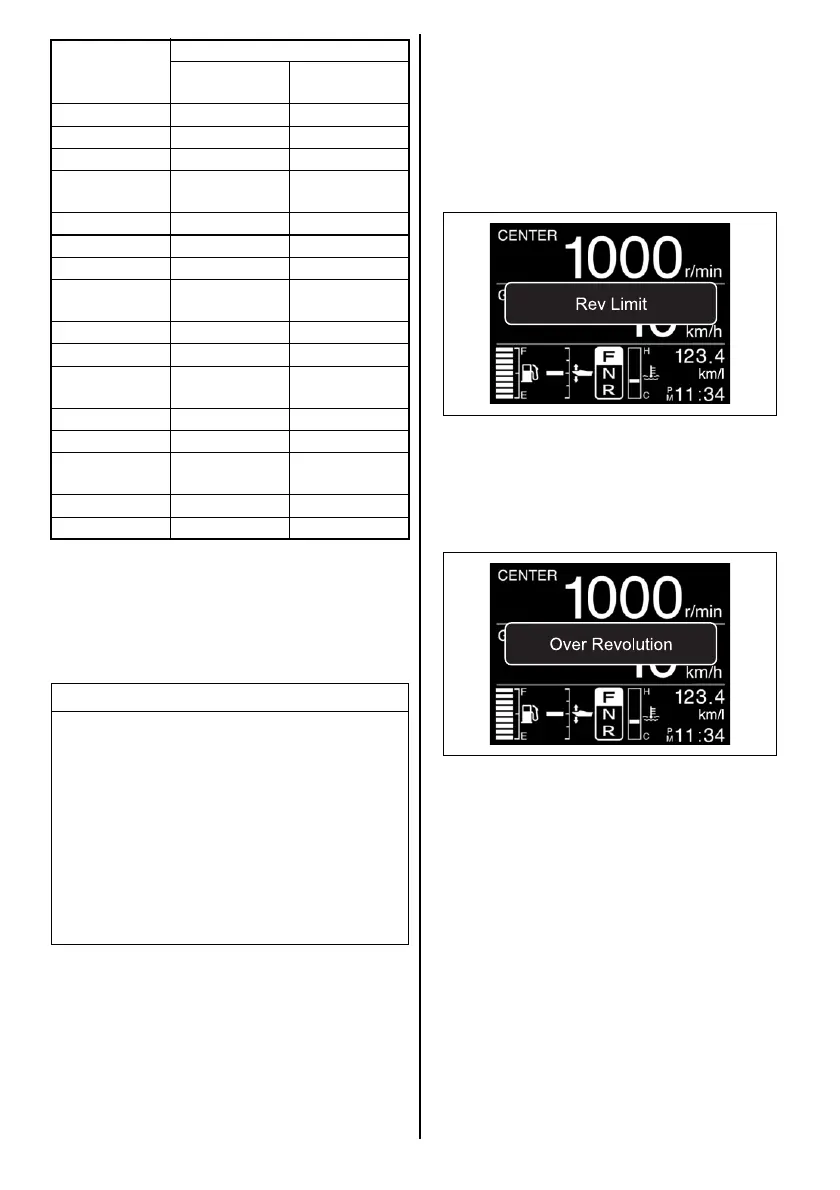

OVER-REVOLUTION CAUTION SYSTEM
This system is activated when engine speed
exceeds maximum recommended speed for
more than 10 seconds.
If equipped with multi-function gauge:
If this system activates, “Rev Limit” is displayed
on screen.
If you continue to run, engine speed will auto-
matically be reduced to approximately 3000
r/min, simultaneously the buzzer sounds. Then
the display will be changed into “Over Revolu-
tion”.
The “Over Revolution” indication clears when
any of the button is pressed in the gauge.
This system must be reset by moving the throt-
tle to the idle position for about one second to
restore full engine operation.
