To hook up the battery, first connect the red
lead from the motor to the positive battery ter-
minal, then connect the black lead to the nega-
tive battery terminal.
To remove the battery, first disconnect the black
lead from the negative terminal, then discon-
nect the red lead from the positive terminal.
Suzuki recommends that you install the termi-
nal cap on the positive battery terminal to pre-
vent an accidental short circuit of battery
terminals.
If a terminal cap is required, contact your autho-
rized Suzuki marine dealer.
NOTICE
The electrical system or its components may
be damaged if proper battery precautions are
not followed.
• Be sure to attach battery leads correctly.
• Do not disconnect battery leads from the
battery while the engine is running.

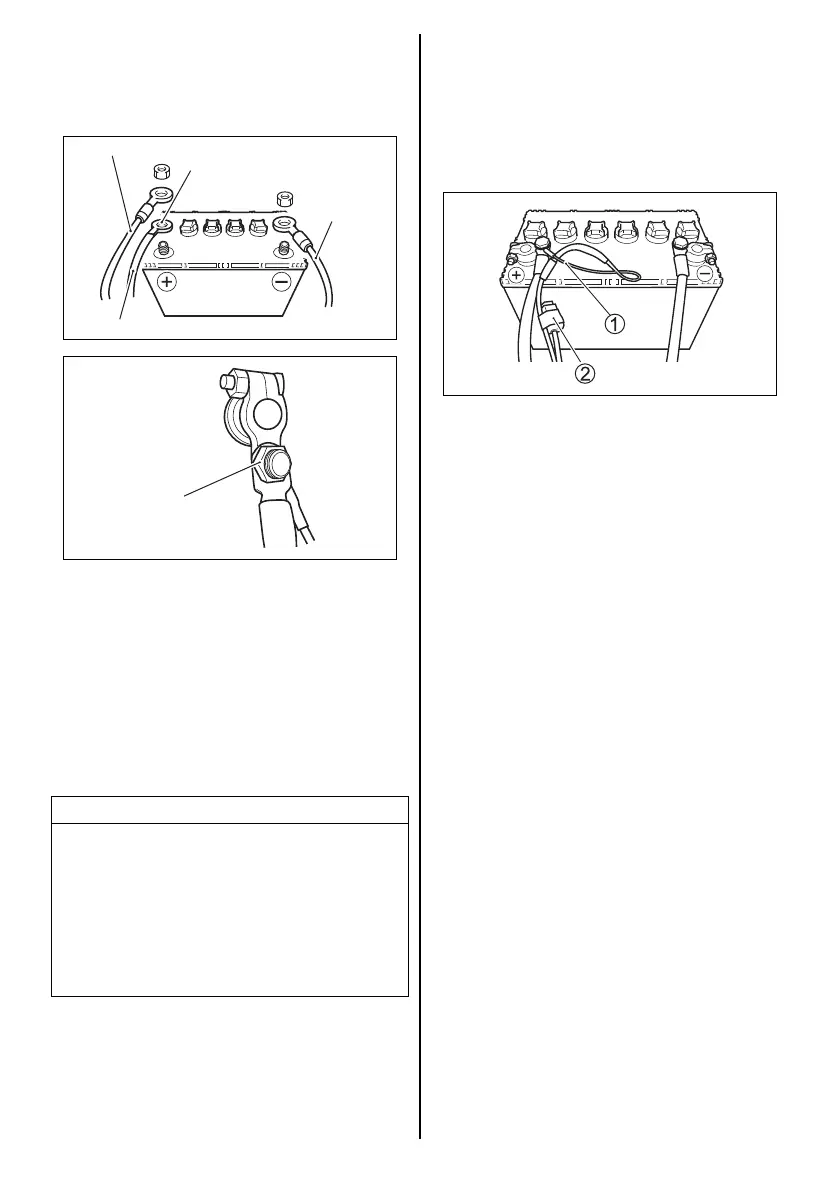

Sub battery cable
Black
lead
Red lead
White lead
Hexagon-nut
SUB BATTERY CABLE
The sub battery cable 1 is used to supply volt-
age to the engine control system. In the midst
of the cable, a 15 A fuse 2 is provided to pro-
tect the control circuit.
If the sub battery cable is not correctly con-
nected to the battery, engine cannot be started.
