POWER TRIM AND TILT 8-15

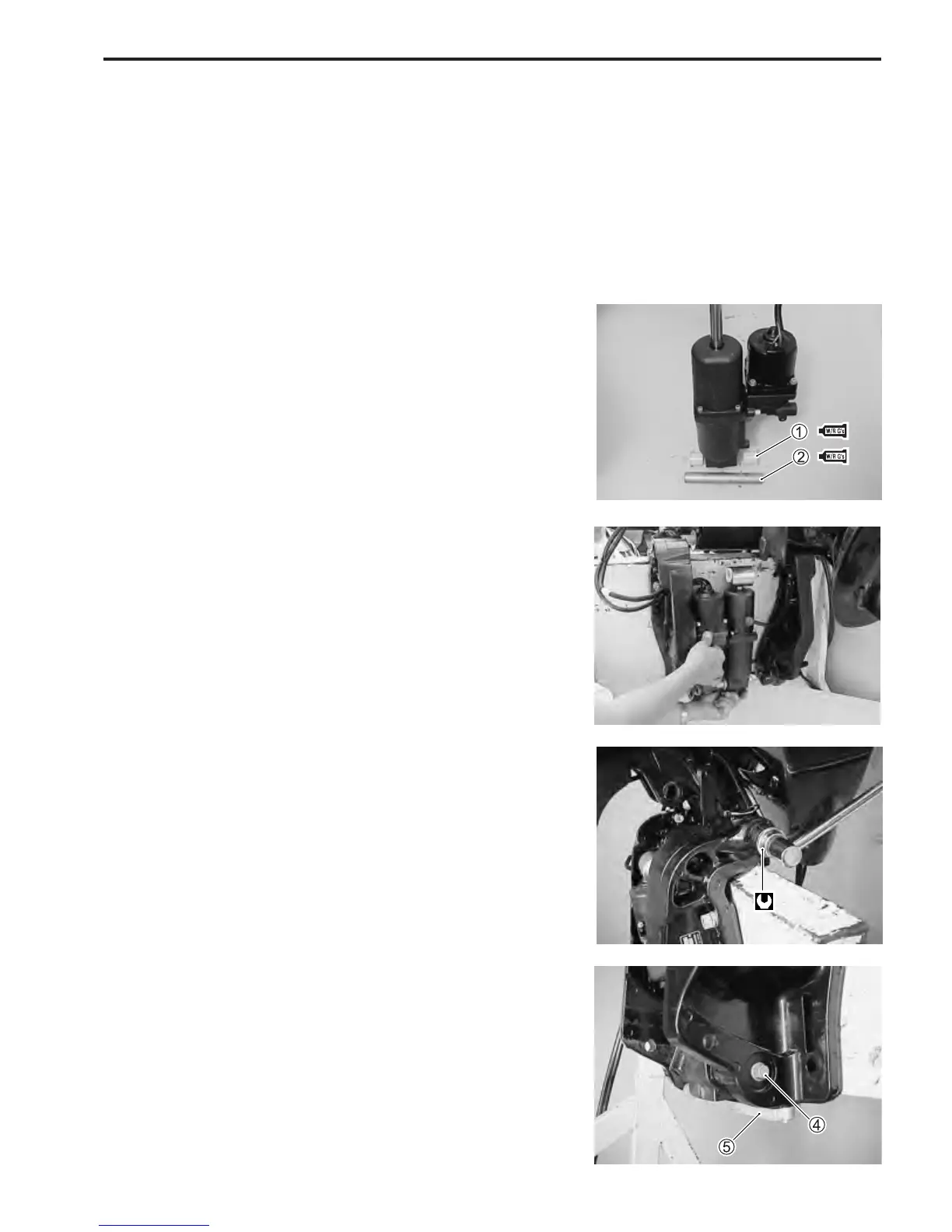

INSTALLATION
Installation is reverse order of removal with special attention to
the following steps.
1. Lower tilt rod to full down position.
2. Apply Water Resistant Grease to tilt cylinder lower shaft and
lower shaft bushes.
3. Install bushings 1 and cylinder lower shaft 2 to PTT unit.
N 99000-25161 : Water Resistant Grease
4. Place PTT unit in position, then install clamp bracket.
5. Tighten clamp bracket shaft nut to specified torque.
" Clamp bracket shaft nut :
43 N
.
m (4.3 kg-m, 31.0 lb.-ft.)
6. Tighten lower shaft bolts 4, pre-coated with thread lock, to
specified torque.
J 99000-32050 : Thread Lock “1342”
" Cylinder lower shaft bolt : 50 N
.
m (5.0 kg-m, 36.0 lb.-ft)
7. Install anode 5, then tighten bolts securely.

Suzuki DF140WT Specifications

General

Max Power	140 HP
Gear Ratio	2.59:1
Starting System	Electric
Steering	Remote
Number of Cylinders	4
Alternator Output	12V 40A
Trim Method	Power Trim and Tilt
Exhaust	Through propeller
Displacement	2, 044 cc
Shaft Length	20 in
Oil Capacity	5.0 L
Engine Type Detail	4-Stroke
Engine Type	4-Stroke DOHC 16-Valve
Fuel System	Multi-point sequential electronic fuel injection
