Suzuki DF140WT User Manual

DF90/115 “K2” (’02) MODEL 12-19

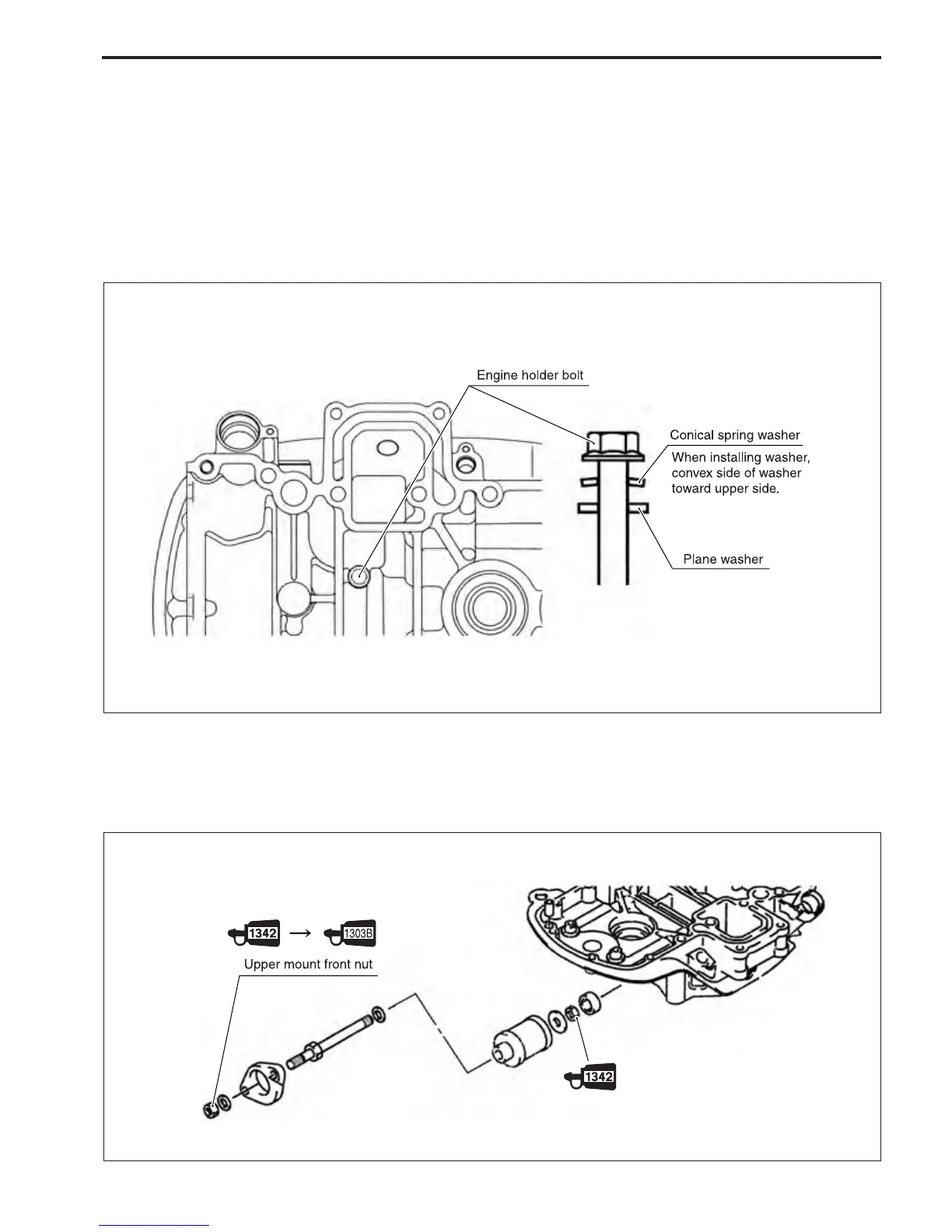

ENGINE HOLDER BOLT
The engine holder bolt has been changed from the middle of 2002 year model.
A conical spring washer and plane washer have been added.
In addition, the tightening torque of engine holder bolt also has been changed.
" Engine holder bolt
1st step 23 N
.
m (2.3 kg-m, 16.5 lb-ft)
Final step–Before installing power unit, retighten a bolt.
25 N
.
m (2.5 kg-m, 18 lb-ft)
UPPER MOUNT FRONT NUT
The thread lock has been changed.
G 99000-32030: Thread Lock Super “1303B”

Suzuki DF140WT Specifications

General

Max Power	140 HP
Gear Ratio	2.59:1
Starting System	Electric
Steering	Remote
Number of Cylinders	4
Alternator Output	12V 40A
Trim Method	Power Trim and Tilt
Exhaust	Through propeller
Displacement	2, 044 cc
Shaft Length	20 in
Oil Capacity	5.0 L
Engine Type Detail	4-Stroke
Engine Type	4-Stroke DOHC 16-Valve
Fuel System	Multi-point sequential electronic fuel injection
