Suzuki DF140WT User Manual

LOWER UNIT 9-13
55 N
.
m
(5.5 kg-m, 40.0 lb.-ft.)
ASSEMBLY & INSTALLATION

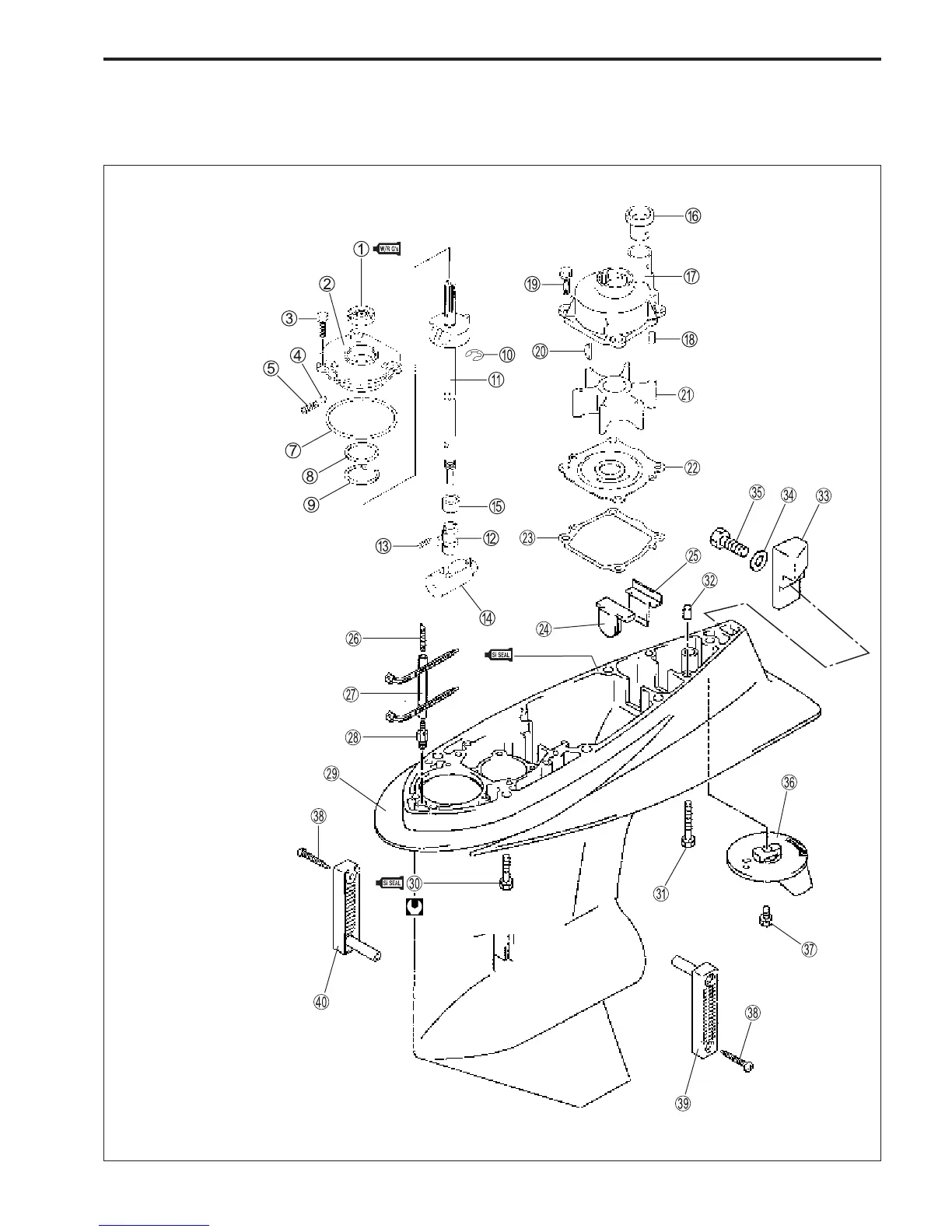

Assembly & Installation are reverse order of disassembly with
special attention to the following steps.
1 1
1 1
1 Dust seal
2 2
2 2
2 Shift rod guide housing
3 3
3 3
3 Bolt
4 4
4 4
4 Ball
5 5
5 5
5 Spring
66
66
6
7 7
7 7
7 O-ring
8 8
8 8
8 Washer
9 9
9 9
9 Circlip
0 0
0 0
0 E-ring
A A
A A
A Shift rod
B B
B B
B Shifter yoke
C C
C C
C Pin
D D
D D
D Horizontal slider
E E
E E
E Magneto
F F
F F
F Grommet
G G
G G
G Water pump case
H H
H H
H Pin
I I
I I
I Bolt
J J
J J
J Key
K K
K K
K Water pump impeller
L L
L L
L Pump case under panel
M M
M M
M Gasket
N N
N N
N Exhaust seal
O O
O O
O Exhaust seal plate
P P
P P
P Union
Q Q
Q Q
Q Hose
R R
R R
R Nipple
S S
S S
S Gearcase
T T
T T
T Bolt
U U
U U
U Bolt
V V
V V
V Pin
W W
W W
W Anode
X X
X X
X Washer
Y Y
Y Y
Y Bolt
Z Z
Z Z
Z Trim tab
[ [
[ [
[ Bolt
\ \
\ \
\ Screw
] ]
] ]
] Water filter PORT
^ ^
^ ^
^ Water filter STBD

Suzuki DF140WT Specifications

General

Max Power	140 HP
Gear Ratio	2.59:1
Starting System	Electric
Steering	Remote
Number of Cylinders	4
Alternator Output	12V 40A
Trim Method	Power Trim and Tilt
Exhaust	Through propeller
Displacement	2, 044 cc
Shaft Length	20 in
Oil Capacity	5.0 L
Engine Type Detail	4-Stroke
Engine Type	4-Stroke DOHC 16-Valve
Fuel System	Multi-point sequential electronic fuel injection
