Suzuki DF140WT User Manual

15-20 DF90/115/140 “K5” (’05) MODEL

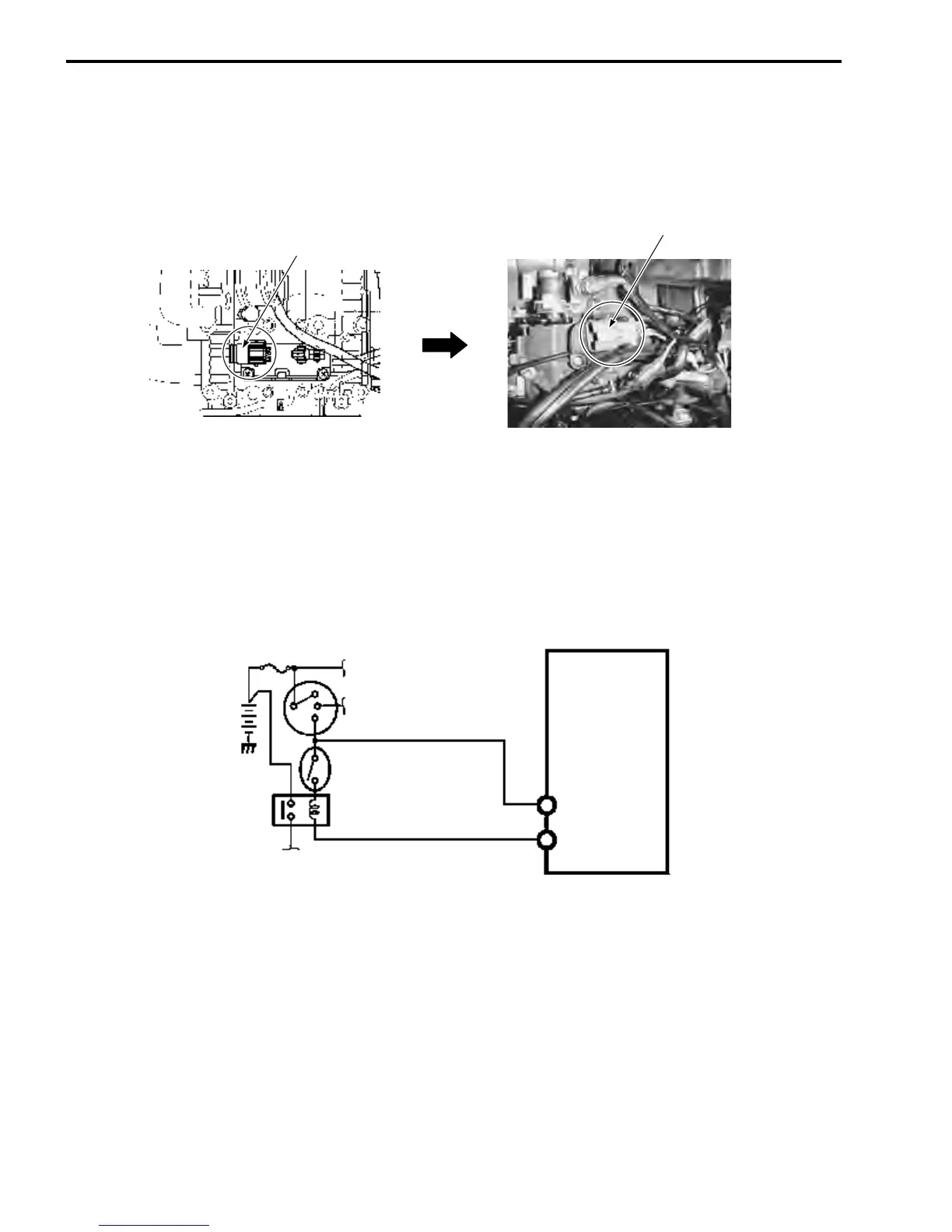

ENGINE WIRING HARNESS
The connectors of engine wiring harness have been changed from 8-pin to 16-pin type connector.
In accordance with this change, the connector holder has been changed and Monitor-Tachometer wire has
been eliminated.
SAFETY RELAY SYSTEM
This system is to avoid operating the starter motor when the engine is already operating.
The starter motor relay will only engage when the ignition switch is turned to the “START” position if the all of
the following conditions are satisfied:
• Lock plate is attached to emergency stop switch.
• Neutral switch is in “ON” position.
• Engine is not already operating.
8-pin connector
16-pin connector
Ignition switch
Neutral switch
Starter motor relay
ECM
