DF140 “K2” (’02) MODEL 11-27

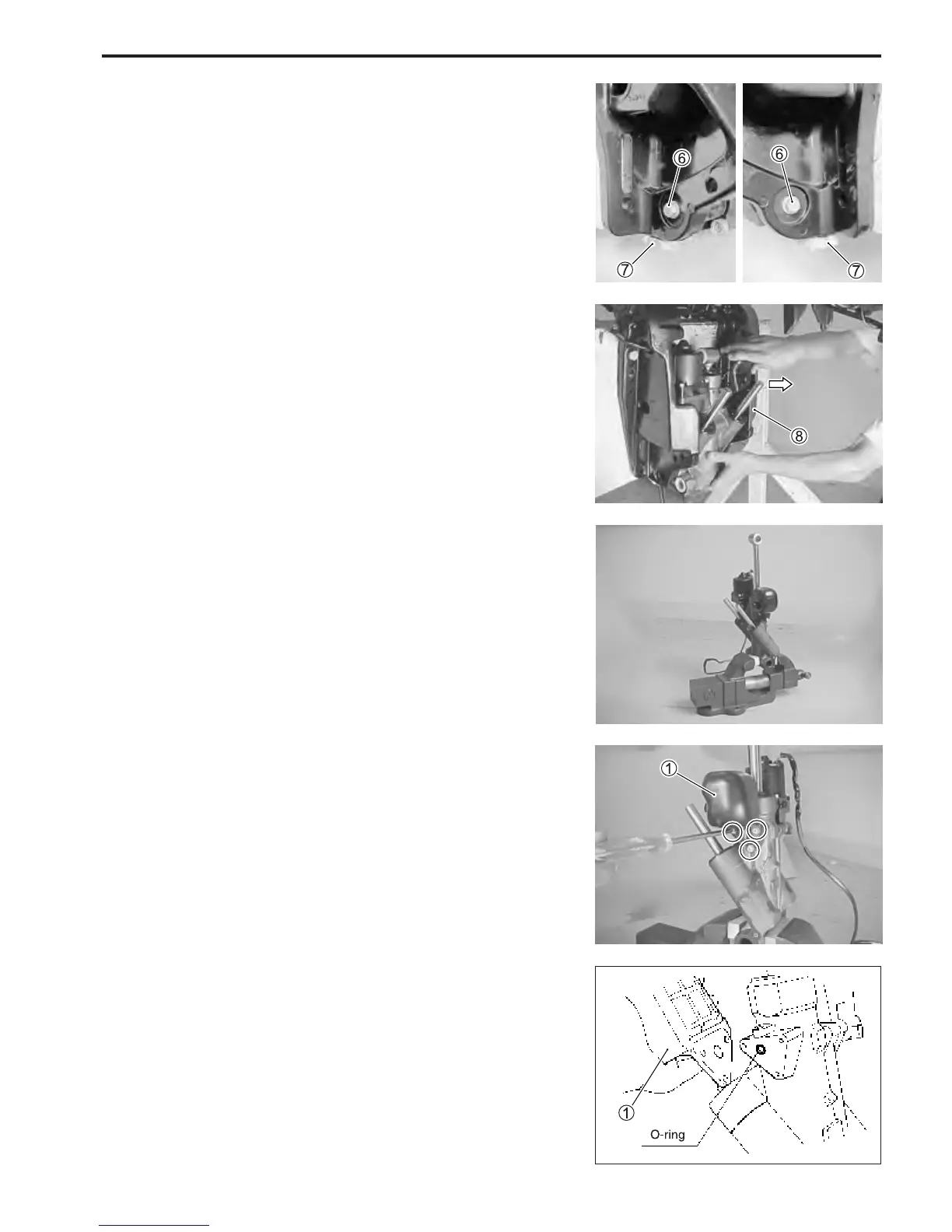

Remove the PTT cylinder lower shaft bolts 6.
Remove the two (2) bolts and anode 7.
DISASSEMBLY
NOTE:
Before disassembly, wash the PTT body with a stiff bristle brush
and hot, soapy water to remove sand or dirt and dry the PTT
body with compressed air.
Place the lower mounting eye of the PTT cylinder in a vise. Tighten
the vise only enough to secure the PTT unit, do not over tighten.
NOTE:
To prevent damage to the PTT cylinder use wood blocks, vise
jaw protectors, etc., between the vise jaws and PTT compo-
nents before tightening vise.
Connect the PTT motor cable leads (G, Bl) to battery and oper-
ate PTT motor until tilt piston rod is at maximum stroke.
(full-tilt up position)
Unscrew the fill plug and drain PTT oil into suitable container.
Remove the three (3) screws securing reservoir 1, then de-
tach the reservoir from cylinder body.
Note the position of O-ring and remove it.
Slide the STBD clamp bracket 8 off the clamp bracket shaft,
then remove the PTT unit.

Suzuki DF140WT Specifications

General

Max Power	140 HP
Gear Ratio	2.59:1
Starting System	Electric
Steering	Remote
Number of Cylinders	4
Alternator Output	12V 40A
Trim Method	Power Trim and Tilt
Exhaust	Through propeller
Displacement	2, 044 cc
Shaft Length	20 in
Oil Capacity	5.0 L
Engine Type Detail	4-Stroke
Engine Type	4-Stroke DOHC 16-Valve
Fuel System	Multi-point sequential electronic fuel injection
