IGNITION AND ELECTRICAL 3-31

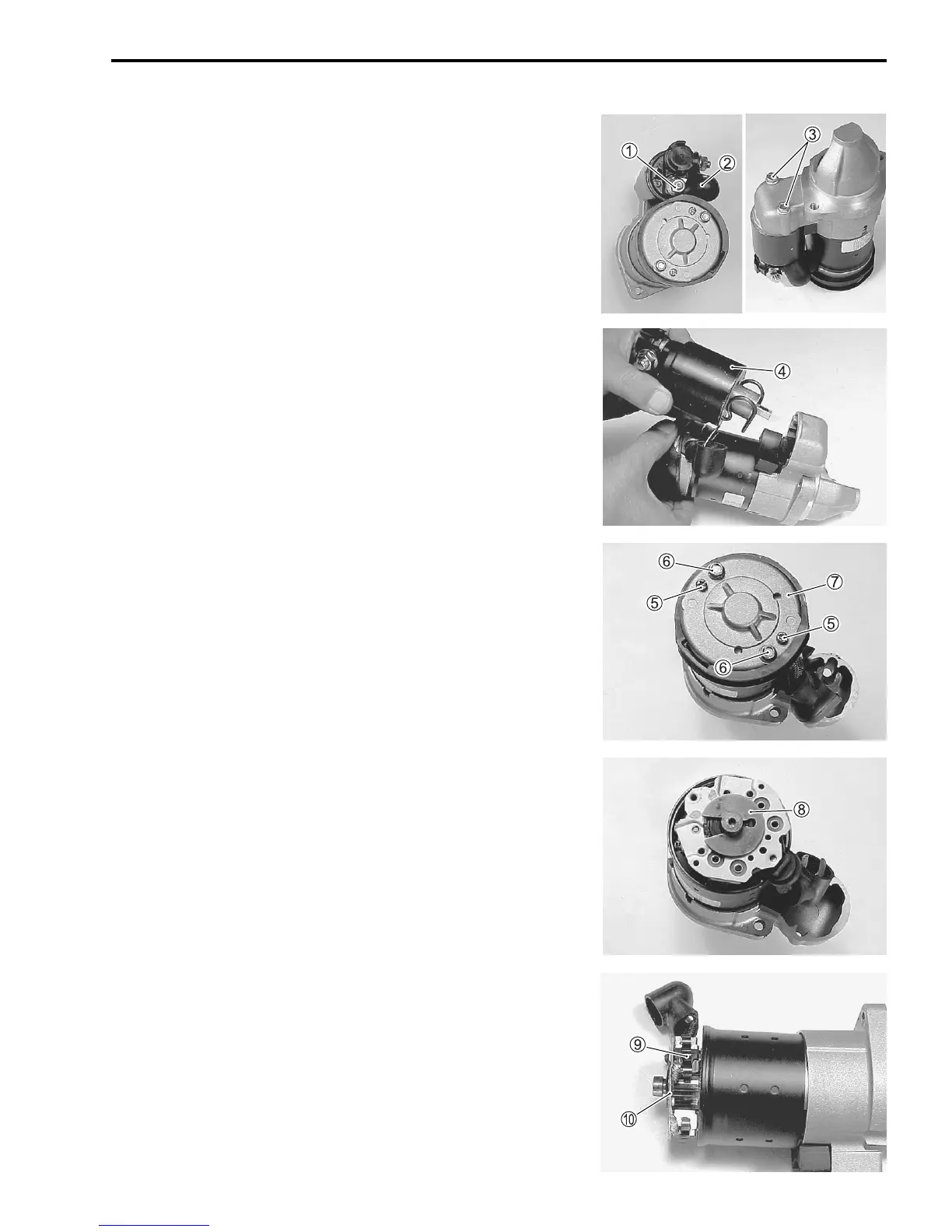

1. Remove nut 1 from magnetic switch, then disconnect the
connecting wire 2.
2. Remove two bolts 3 securing magnetic switch.
3. Remove the magnetic switch 4.
4. Remove screws 5, long through bolts 6 and rear cover 7.
5. Remove thrust washer 8 with screwdriver.
6. Pull the brush spring 9 up to separate the brush from the
surface of the commutator, then remove the brush holder 0.
