2-10
If the tachometer needle does not
point to zero, follow the procedure
below to reset the tachometer.
1. Press and hold the ADJUST but-
ton 1 and turn on the ignition
switch.
2. Hold the ADJUST button 1 for 3 –
5 seconds.
3. Release the ADJUST button 1.
Rap the ADJUST button twice.
NOTE: Reset procedure, from step 1
to step 3, should be performed within
10 seconds.

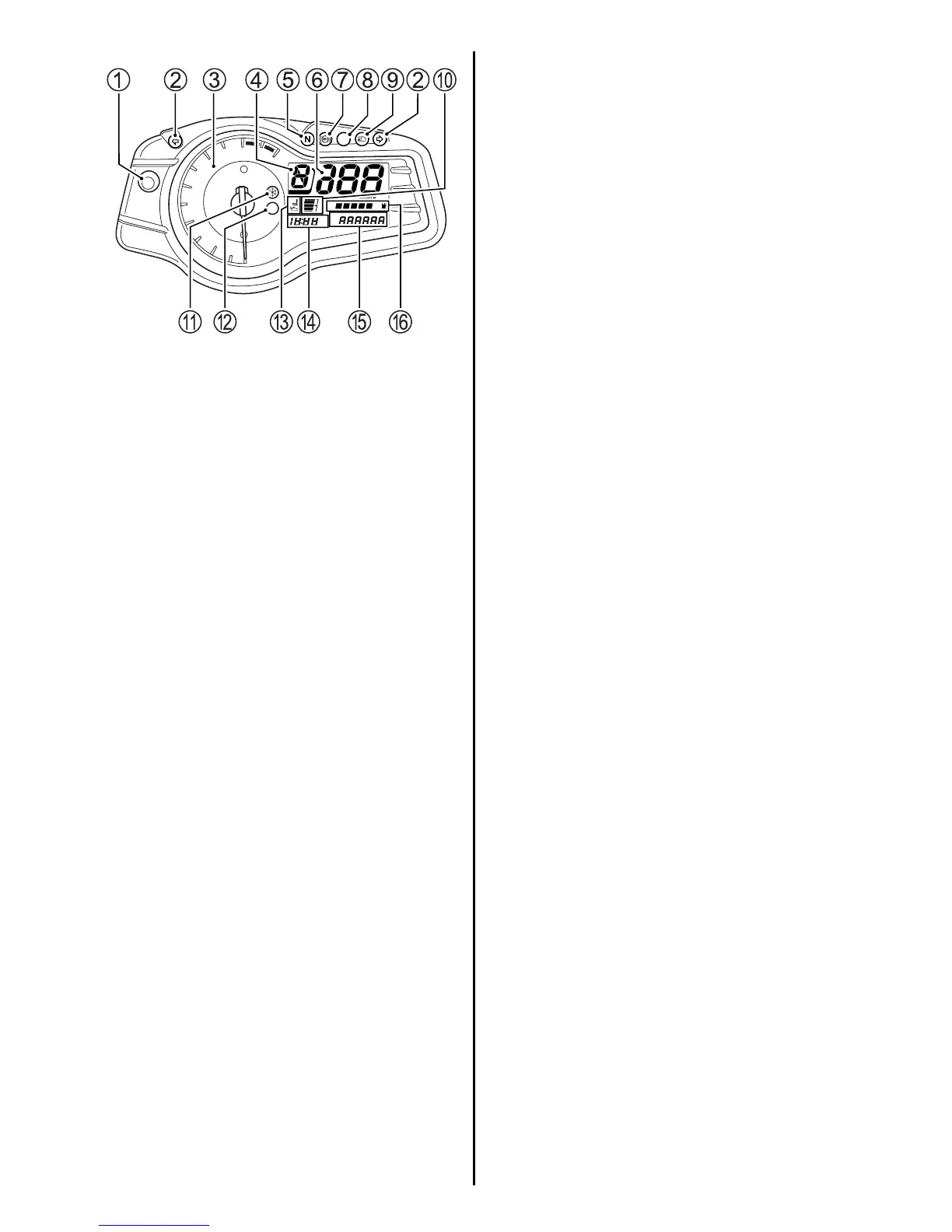

TURN SIGNAL INDICATOR LIGHT
“” 2
When the turn signals are being oper-
ated either to the right or to the left,
the indicator light will blink intermit-
tently.
NOTE: If a turn signal light is not
operating properly due to bulb fila-
ment or circuit failure, the indicator
light blinks more quickly to notify the
rider of the existence of a problem.
TACHOMETER 3
The tachometer indicates the engine
speed in revolutions per minute (r/min).
GEAR POSITION INDICATOR 4
The gear position indicator indicates
gear position. This indicator displays
“N” when the transmission is in neu-
tral.
NOTE: When the display indicates
“CHEC”, the gear position indicator
does not indicate a number but indi-
cates “–”.
NEUTRAL INDICATOR LIGHT “N”
5
The green light will come on when the
transmission is in neutral. The light
will go out when you shift into any
gear other than neutral.
SPEEDOMETER 6
The speedometer indicates the road
speed in kilometers per hour and/or
miles per hour.
NOTE:
• Set the meter to odometer, then
press and hold the ADJUST but-
ton 1 for 2 seconds to switch
between km/h and mph.
• Select km/h or mph, as appropri-
ate, to comply with traffic regula-
tions.
• Check km/h and mph display after
adjusting the instrument panel dis-
play.
FI
H
GEAR
C
EF
mph
TRIP
AIR
1
2
L/100kmkm/LMPG USIMP
km/h
˚C
ADJUST
