2-31

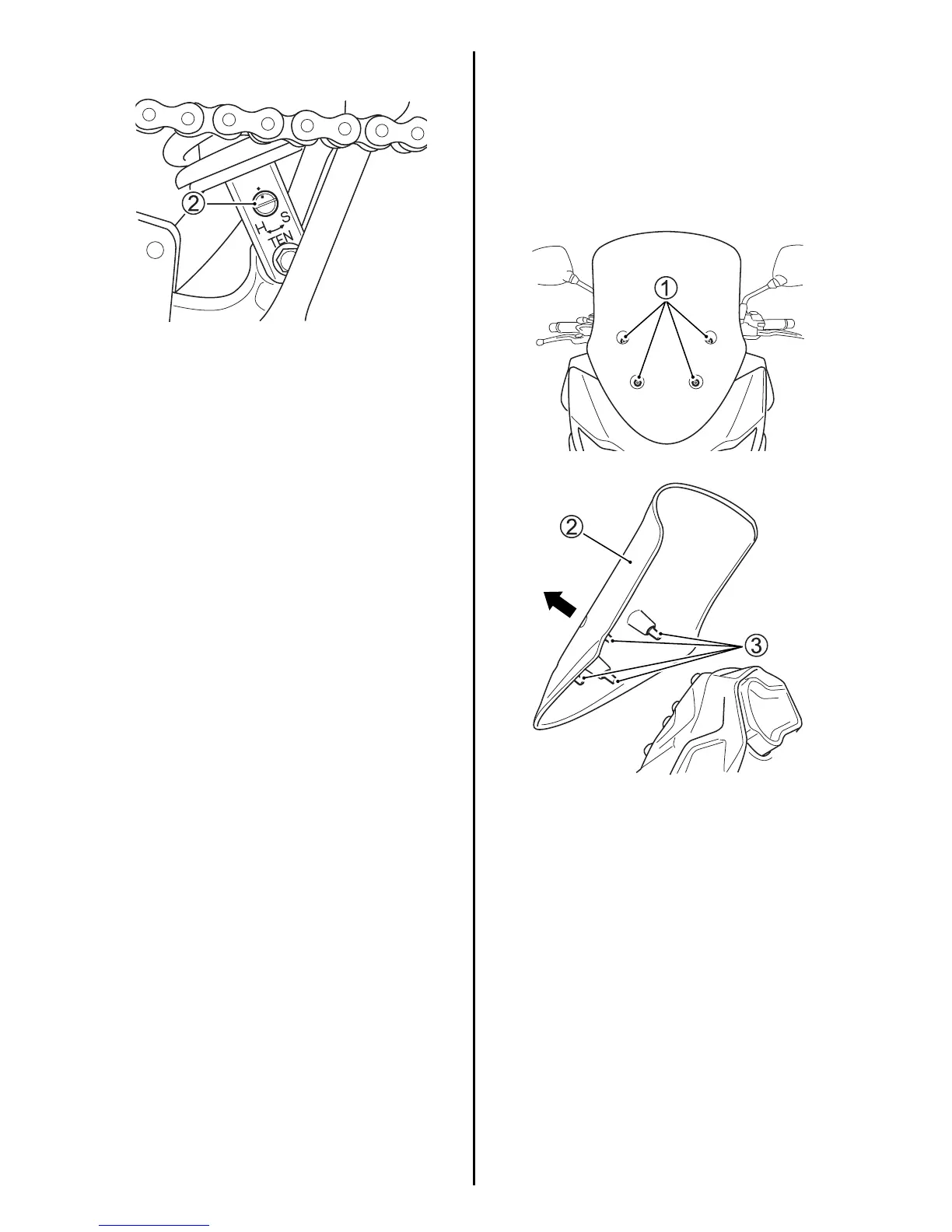

Damping Force Adjustment
The rebound damping force adjuster
2 is located at the bottom of the rear
suspension damper unit. To adjust the
damping force, set the adjuster to the
standard setting first and then adjust
it to the desired position. To set the
damping force adjuster to the stan-
dard position:
1. Turn the adjuster clockwise until it
stops.
2. Turn the adjuster counterclock-
wise 2 turns until the two punch
marks align.
Turn the adjuster clockwise to stiffen
the damping force and turn it counter-
clockwise to soften the damping
force.
WINDSHIELD HEIGHT
ADJUSTMENT
The windshield height can be
adjusted in 3 positions. To change
windshield height, follow the proce-
dure below.
1. Remove the bolts 1 and remove
the windshield 2 with nuts 3.
NOTE: When the windshield is
removed, nuts may remain on the
motorcycle. In such case, remove the
nuts from the motorcycle and install
them on the windshield.
To Next Page
