ENGINE MECHANICAL (H25 ENGINE) 6A2-57
Camshaft and Valve Lash Adjuster

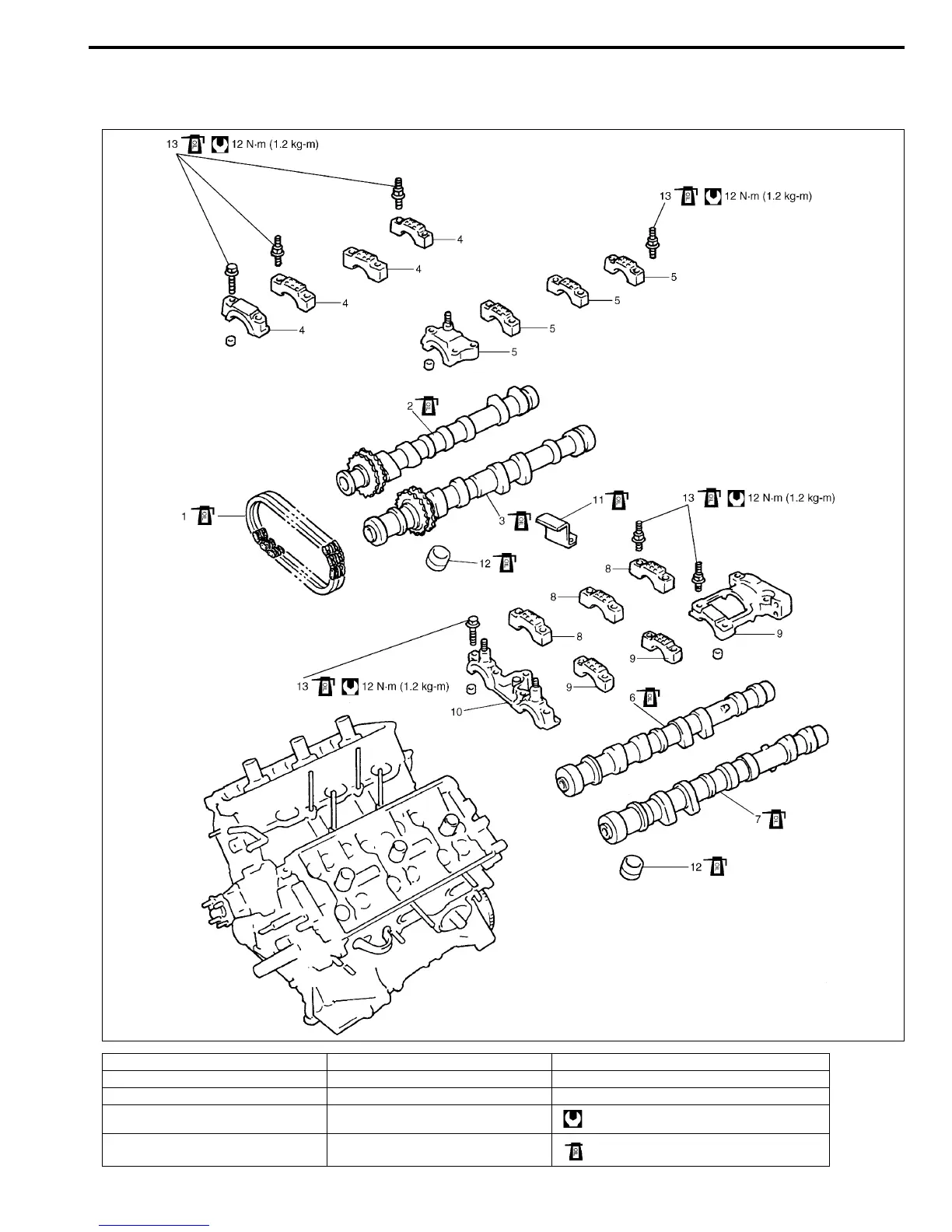

COMPONENTS
1. RH bank 2nd timing chain 6. LH bank intake camshaft 11. Timing chain guide No.5
2. RH bank exhaust camshaft 7. LH bank exhaust camshaft 12. Valve lash adjuster
3. RH bank intake camshaft 8. LH bank intake camshaft holder 13. Camshaft housing bolt
4. RH bank exhaust camshaft holder 9. LH bank exhaust camshaft holder Tightening Torque
5. RH bank intake camshaft holder 10. LH bank camshaft holder Apply engine oil to sliding surface of each parts.
