6A4-20 ENGINE MECHANICAL (J20 ENGINE)
Oil Pump

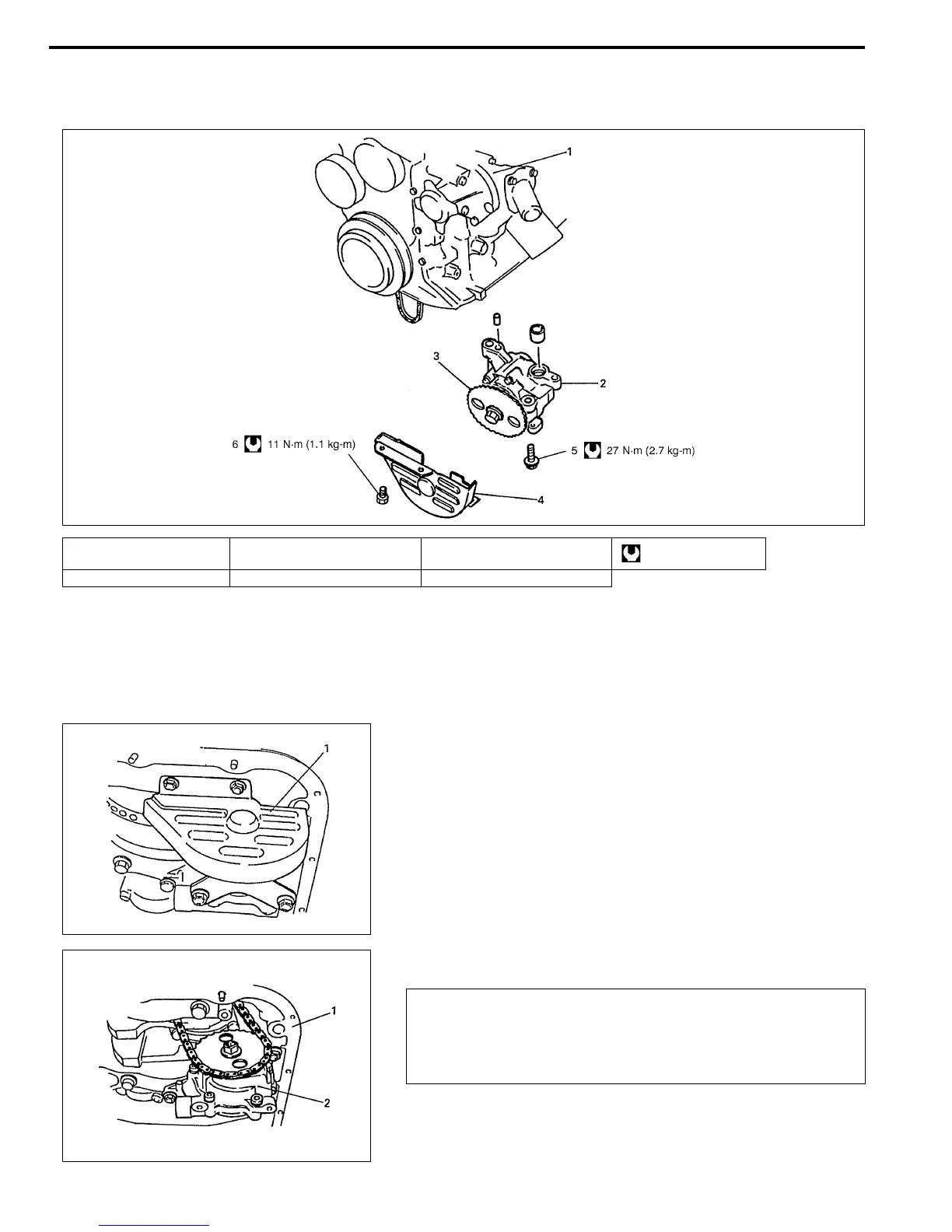

COMPONENTS
REMOVAL
1) Disconnect negative cable at battery.
2) Drain engine oil.
3) Remove oil pan and oil pump strainer.
Refer to “Oil Pan and Oil Pump Strainer” in this section.
4) Remove oil pump sprocket cover (1).
5) Remove oil pump (2) from lower crankcase (1).
1. Cylinder block 3. Oil pump sprocket 5. Oil pump bolt Tightening torque
2. Oil pump 4. Oil pump sprocket cover 6. Oil pump sprocket cover bolt
CAUTION:
Don’t remove sprocket out of oil pump. Or damage of oil
pump center shaft and abnormal operation of oil pump
could result.
