ENGINE AND EMISSION CONTROL SYSTEM (G16/J20 ENGINES) 6E1-25

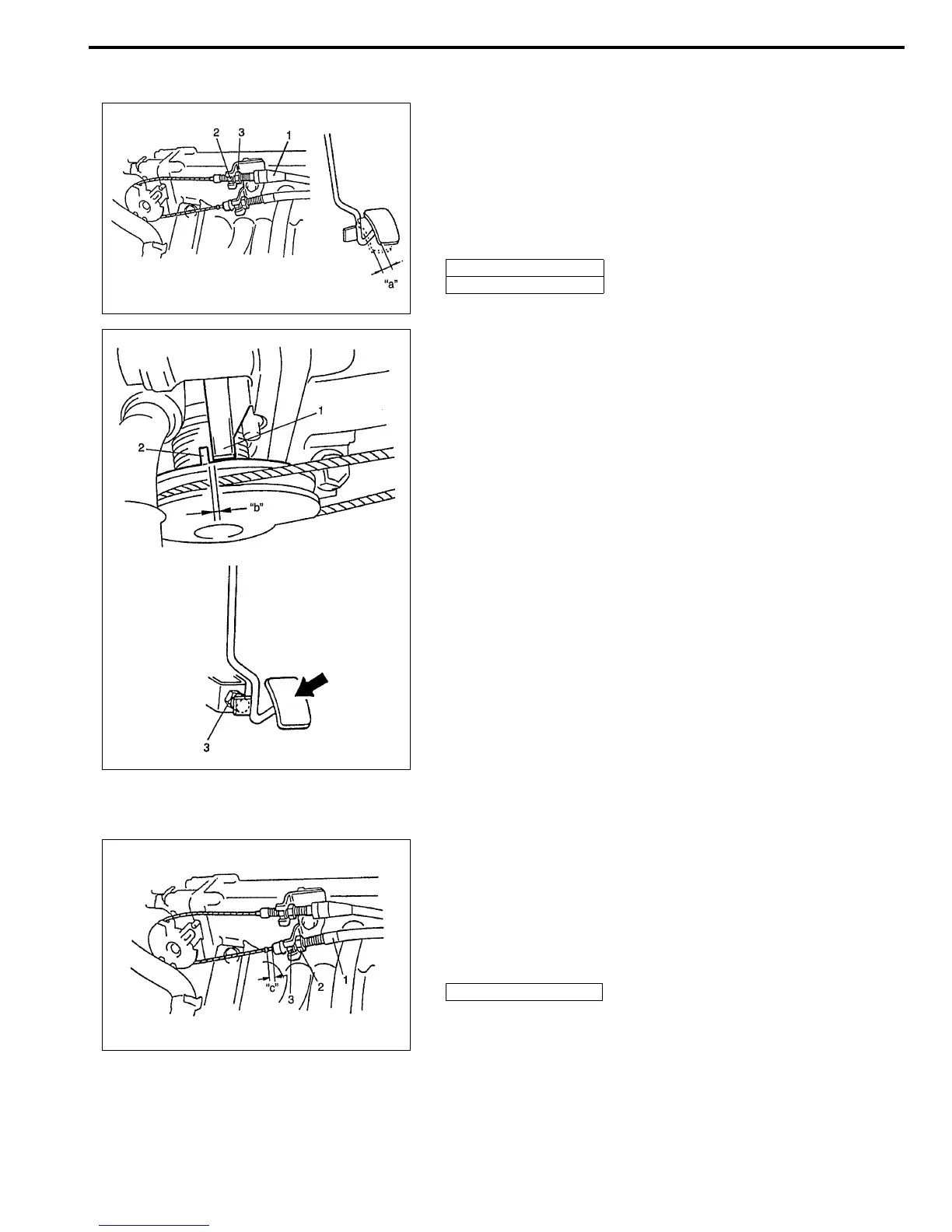

Accelerator Cable Adjustment
1) With throttle valve closed, check accelerator pedal play
which should be within following specification.
If measured value is out of specification, adjust it to specifi-
cation with cable adjusting nut (2).
Accelerator pedal play
“a” : 2 – 5 mm (0.08 – 0.19 in.)
2) With accelerator pedal depressed fully, check clearance
between throttle lever (2) and lever stopper (throttle body) (1)
which should be within following specification.
If measured value is out of specification, adjust it to specifi-
cation by changing height of pedal stopper bolt (3).
Accelerator cable adjustment clearance (with accelerator
pedal depressed fully)
“b” : 0.5 – 2.0 mm (0.02 – 0.07 in.)
A/T Throttle Cable Adjustment
1) Make sure that accelerator cable is adjusted as specified.
2) Check clearance “c”. If it is out of specification, adjust it by
turning cable adjusting nut (2).
A/T throttle cable adjustment clearance
“c” : 0.8 – 1.5 mm (0.03 – 0.05 in.)
3) Tighten lock nut (3) securely.
1. Accelerator cable
3. Lock nut
1. A/T throttle cable
