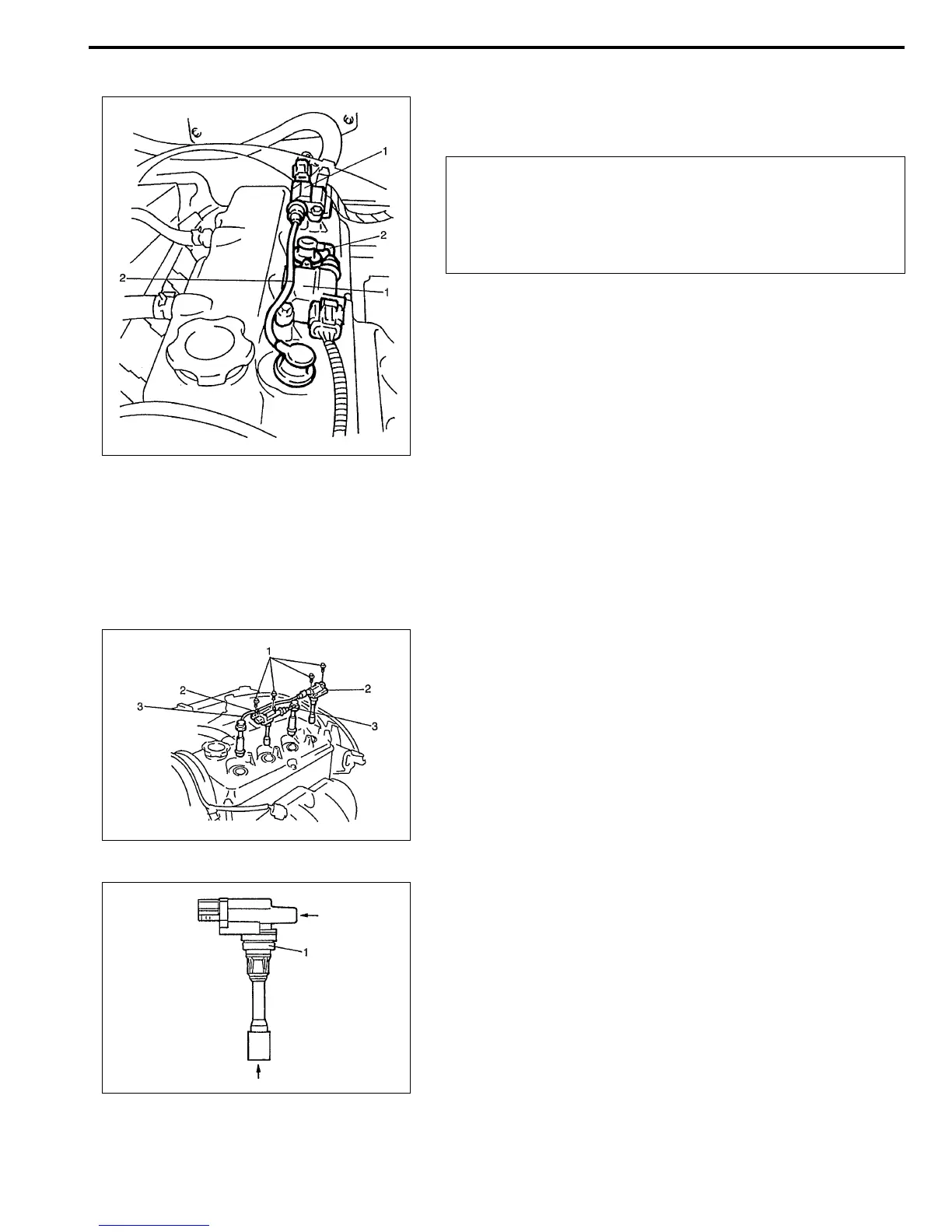

IGNITION SYSTEM (FOR G16 ENGINE) 6F1-11
INSTALLATION
1) Install high-tension cord (2) to spark plug and ignition coil
assembly (1) while gripping its cap.
Ignition Coil Assembly (Igniter and Ignition
Coil)
REMOVAL
1) Disconnect ignition coil coupler.
2) Disconnect high-tension cord (3) from ignition coil assembly
(2).
3) Remove ignition coil bolt (1), and then pull out ignition coil
assembly (2).
INSPECTION
Check for damage, deterioration and terminal corrosion.
If check result is not satisfactory, replace ignition coil assembly
(1).
CAUTION:
• Never attempt to use metal conductor high-tension
cord(s) as replacing parts.
• Insert each cap potion fully when installing high-ten-
sion cords.
