ENGINE COOLING 6B-23

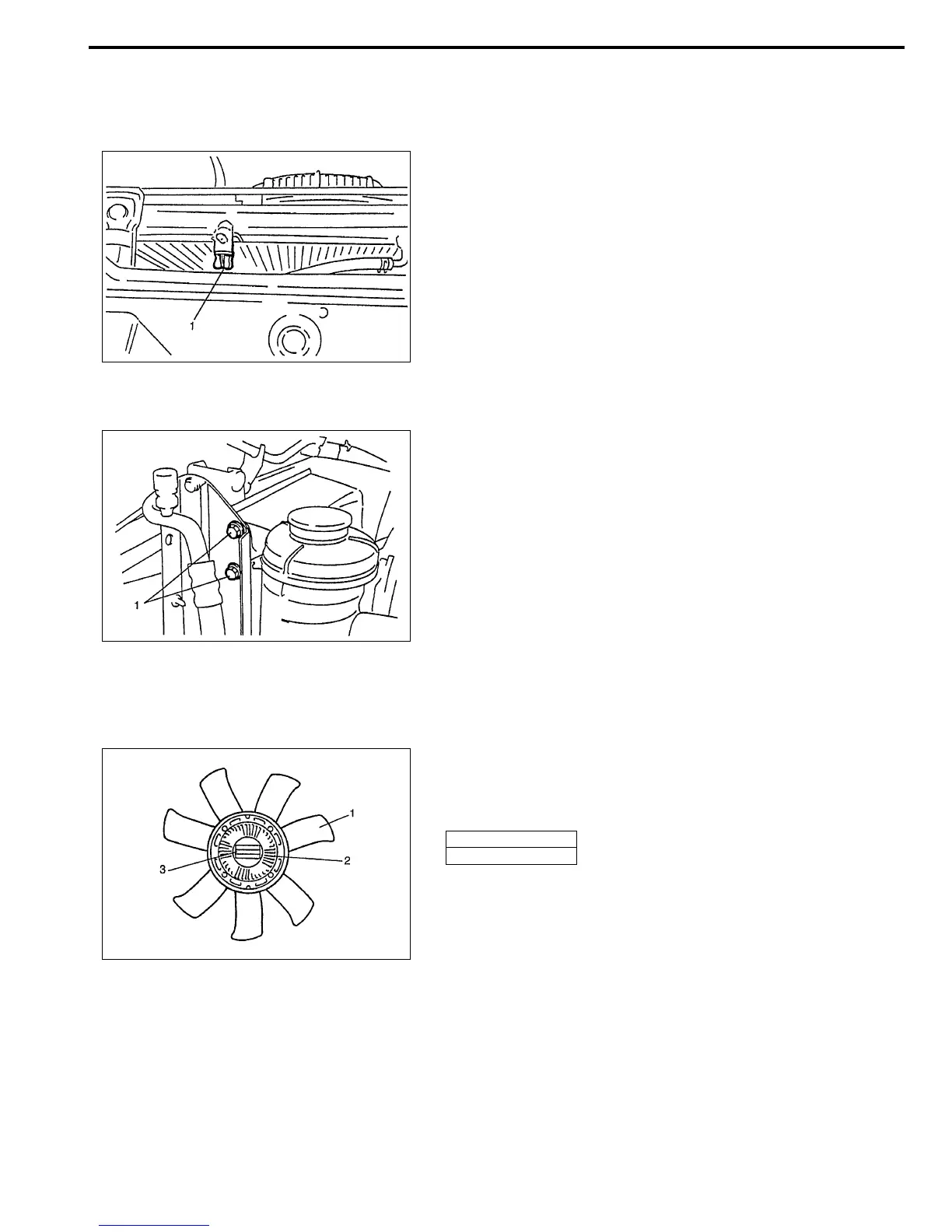

Cooling Fan and Fan Clutch
REMOVAL
1) Disconnect negative (–) cable at battery.
2) Drain cooling system by loosing drain plug (1) of radiator.
3) Disconnect radiator inlet hose from radiator.
4) Loosen cooling fan/clutch nuts.
5) Remove P/S fluid reserver stay bolts (1) from radiator stay
(G16 and H25 engines only).
6) Remove radiator shroud securing clips.
7) Then remove cooling fan/clutch and radiator shroud.
INSPECTION
Inspect fluid coupling for oil leakage.
If necessary, replace fan clutch (2) assembly. Do not disassemble
clutch assembly.
INSTALLATION
Install removed parts in reverse order of removal procedure.
• Refill cooling system with proper coolant referring to “Cool-
ant” and “Cooling System Flush and Refill” in this section.
• After installation, check each joint for leakage.
1. Cooling fan
3. Bimetal
To Next Page
