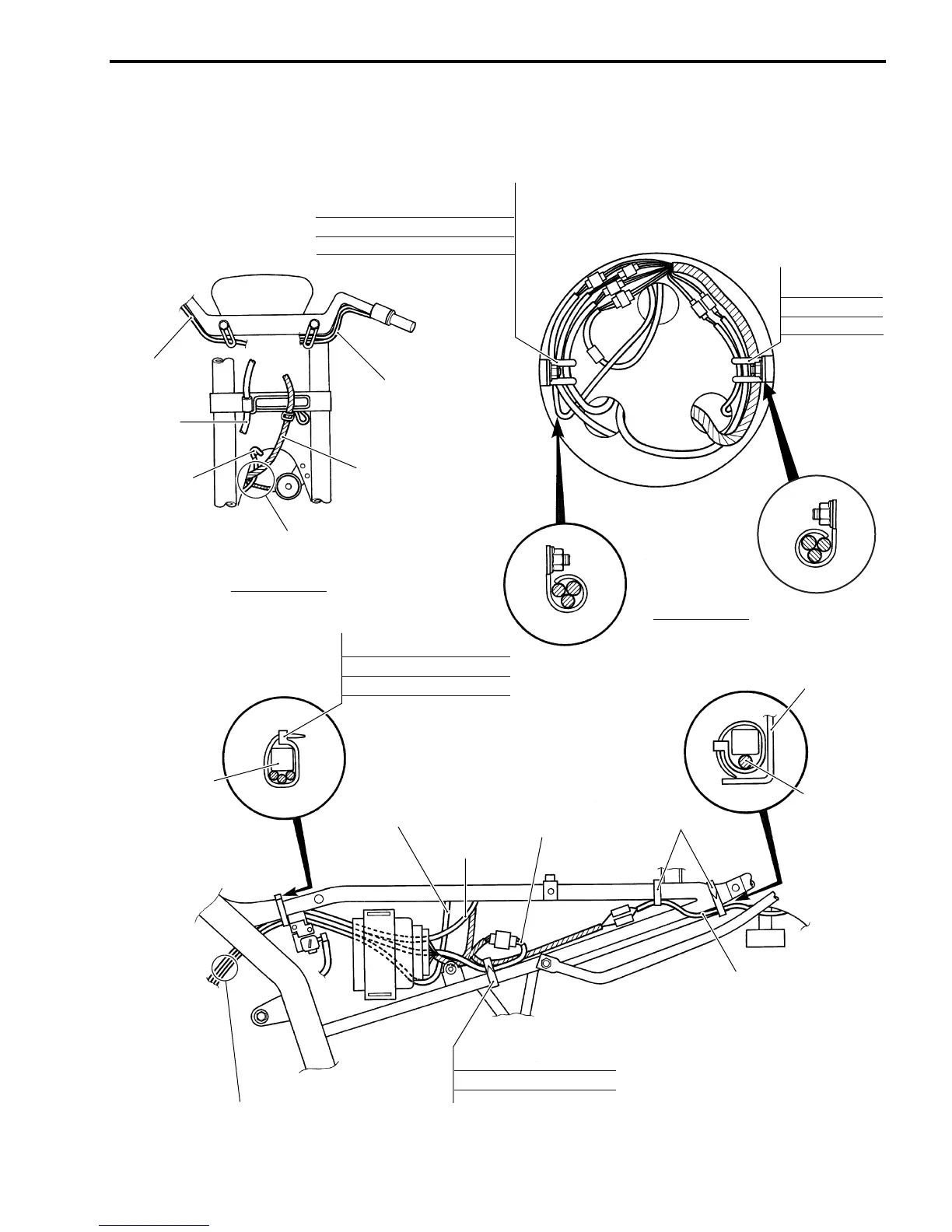

GS500K3 (’03-MODEL) 19-29
Right handlebar
switch lead wire
Brake
hose
Wiring harness
Signal generator lead wire
Wiring
harness
guide
Left handlebar
switch lead wire
Wiring harness
Pass the horn lead wire behind
the wiring harness guide.
Clamp
Ignition switch lead wire
Left handlebar switch lead wire
Right handlebar switch lead wire
Clamp
Left turn signal
Right turn signal
Wiring harness
VIEW OF A
Frame
Clamp
Clamp
Clamp
Signal generator lead wire
Battery lead wire -
Magneto lead wire
Battery
lead wire -
Turn signal
lead wire
Rear fender
VIEW OF B
Magneto
lead wire
Signal generator
lead wire
Pass the turn signal light
lead wire between the frame
and rear fender. No slack.
Pass the lead wires
inside of all drain hoses.
