6-2 FUEL SYSTEM AND THROTTLE BODY
FUEL DELIVERY SYSTEM
The fuel delivery system consists of the fuel tank, fuel pump, fuel filters, fuel feed hose, fuel delivery pipe
(including fuel injectors) and fuel pressure regulator. There is no fuel return hose. The fuel in the fuel tank is
pumped up by the fuel pump and pressurized fuel flows into the injector installed in the fuel delivery pipe.
Fuel pressure is regulated by the fuel pressure regulator. As the fuel pressure applied to the fuel injector (the
fuel pressure in the fuel delivery pipe) is always kept at absolute fuel pressure of 3.0 kgf/cm
2
(300 kPa, 43
psi), the fuel is injected into the throttle body in conic dispersion when the injector opens according to the
injection signal from the ECM.
The fuel relieved by the fuel pressure regulator flows back to the fuel tank.

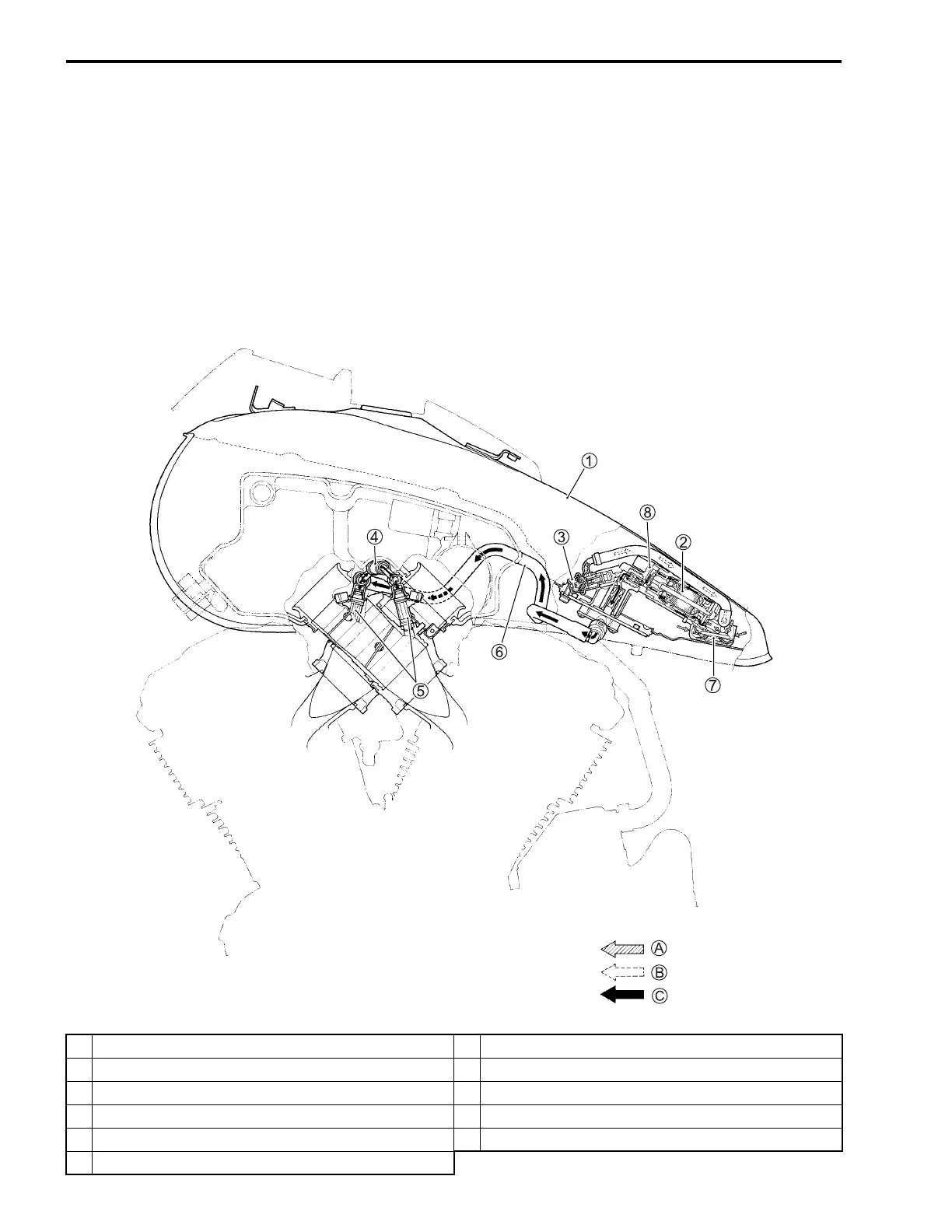

1 Fuel tank 7 Fuel mesh filter (For low pressure)
2 Fuel filter (For high pressure) 8 Fuel pump
3 Fuel pressure regulator A Before-pressurized fuel
4 Fuel delivery pipe B Relieved fuel
5 Fuel injector C Pressurized fuel
6 Fuel feed hose

Suzuki VZR1800 2007 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, 54-degree V-twin
Transmission	5-speed
Front Tire	130/70R18M/C 63H
Overall Height	1185 mm
Seat Height	705 mm
Torque	160 Nm @ 3200 rpm
Ground Clearance	140mm
Overall Length	2485 mm (97.8 in)
Power	125 hp (93 kW) @ 6200 rpm
