SV106A User Manual
1. INTRODUCTION

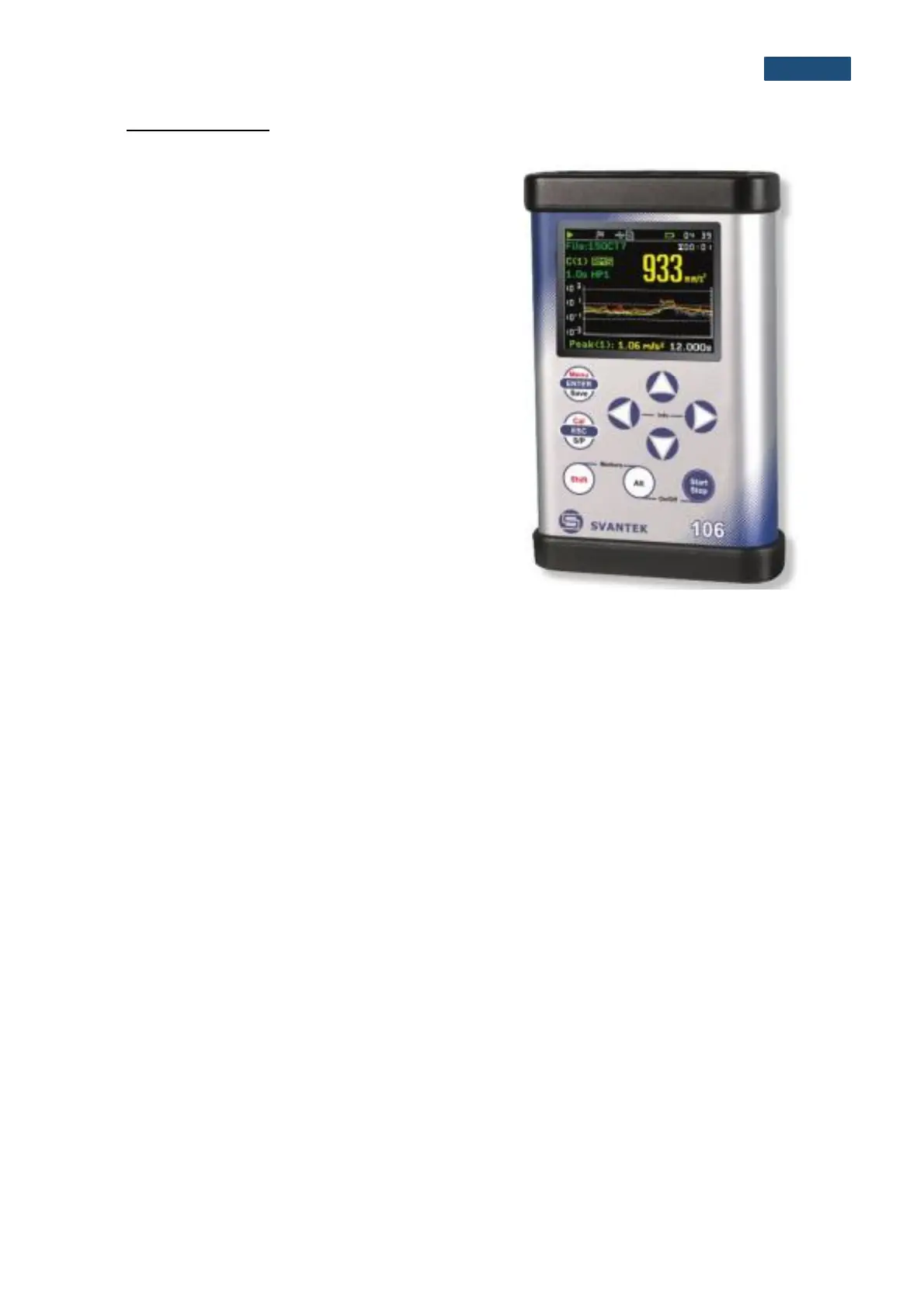

The SV 106A is a six-channel human (Whole-Body and
Hand-Arm) vibration meter and analyser. The instrument
meets the ISO 8041:2005 standard and it is an ideal
choice for measurements according to ISO 2631-1,2&5,
ISO 10326, ISO 5349-1&2 and EU Directive 2002/44/EC.
This small-size instrument performs simultaneous
measurements with two triaxial accelerometers (e.g.
both-hands vibration or triaxial SEAT transmission
measurements are possible). The RMS, VDV, CRF, OVL,
PEAK, P–P, MTVV, MAX, VECTOR, A(8), ELV, EAV
results with all required weighting filters for the HVM
measurements are available with this instrument.
Using the computational power of its digital signal
processor the instrument can, simultaneously to the
broad band meter mode, perform real time 1/1 Octave or
1/3 Octave analysis (optional).
Advanced time-history logging and time-domain signal
recording (according to ISO 2631-5) to the built-in Micro
SD flash card give almost unlimited capabilities of data
storage. Results can be easily downloaded to PC using
the USB interface and the Supervisor software.
The SV 106A can be supplied with a choice of Svantek accelerometers: SV 105A for hand-arm vibration
measurements or SV 38V for whole-body vibration measurements.
Evaluation of the grip force is possible with the dedicated “integrated adapter” SV 105AF.
Fast USB 1.1 interface (12 MHz) creates real time link for the PC "front-end" application of the SV 106A
instrument. The measurement results can be downloaded to PC using the above-mentioned interfaces.
The instrument is powered from four AA standard alkaline or rechargeable batteries (i.e. NiMH – a separate
charger is required). Powering the instrument from the USB interface is also possible. Robust and lightweight
design accomplishes the exceptional features of this new generation human vibration exposure instrument.
1.1. SV106 main features
• Human Vibration meter meeting ISO 8041:2005,
• Measurements in accordance with ISO 2631-1,2&5 (including VDV and MTVV) and ISO 5349-1&2
• Six channels for acceleration and two channels for force measurements
• Whole-Body measurements with:
- SV 38V low power seat accelerometer
• Hand-Arm measurements with:
- SV 105A integrated triaxial accelerometer including hand straps
- SV 105AF integrated triaxial accelerometer including hand straps and grip force sensor
- SV 150 triaxial accelerometer with adapter for direct attaching to hand-held power tools
• SEAT transmissibility measurements with SV 151 integrated tri-axial accelerometer
• Ground / building vibration measurements with SV 84 tri-axial IEPE accelerometer
• Time-domain signal waveform recording (meeting ISO 2631-5) as option
• 1/1 octave and 1/3 octave spectral calculations (as option)
• Advanced data logger including spectral analysis
• Micro SD flash card for almost unlimited mass data storage
