CONNECTING & CONTROLLING YOUR SUBWOOFER

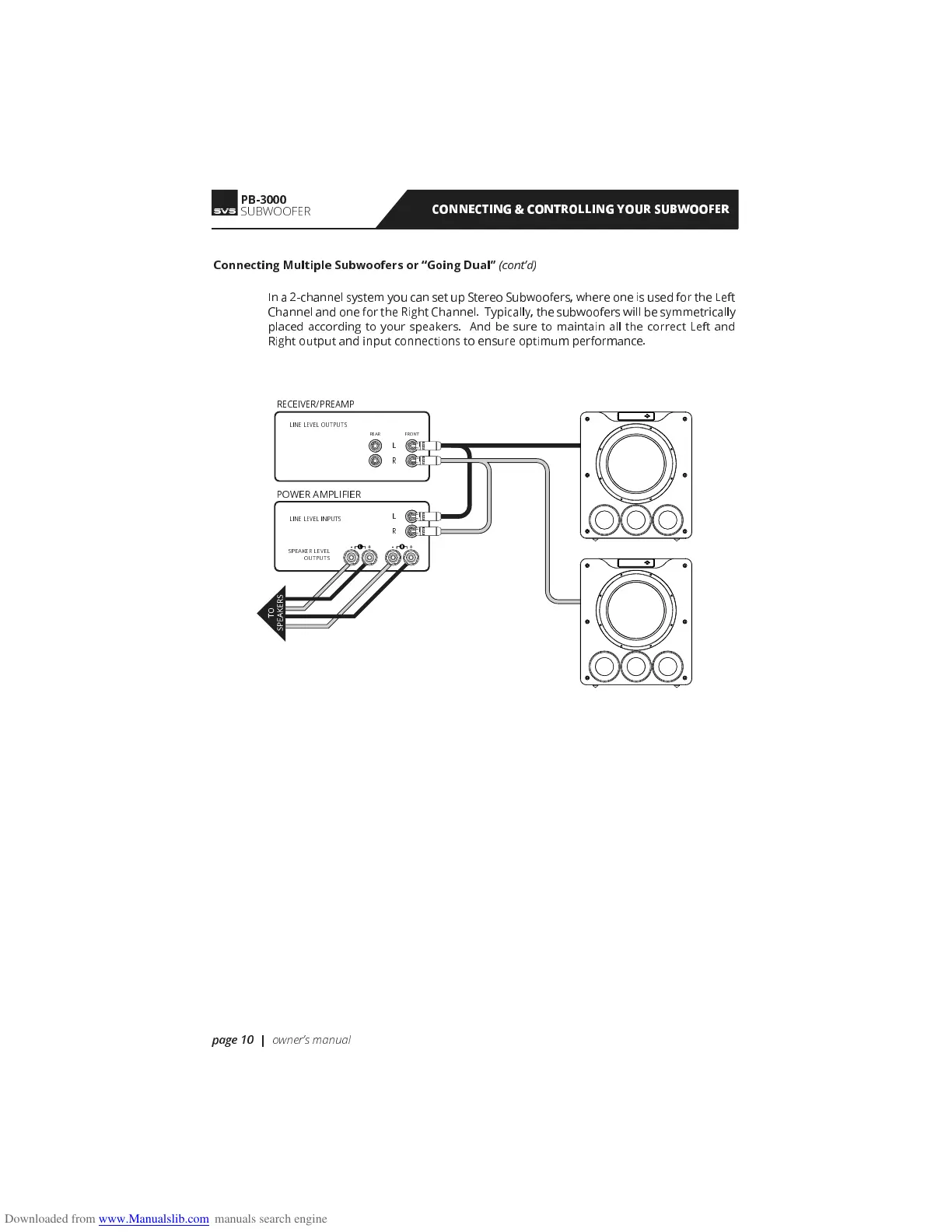

Connecting Multiple Subwoofers or Going Dual
(contd)
In a 2-channel system you can set up Stereo Subwoofers, where one is used for the Left
Channel and one for the Right Channel. Typically, the subwoofers will be symmetrically
placed according to your speakers. And be sure to maintain all the correct Left and
Right output and input connections to ensure optimum performance.
LINE LEVEL OUTPUTS
REAR FRONT
R
L
RECEIVER/PREAMP
LINE LEVEL INPUTS
SPEAKER LEVEL
OUTPUTS
R
L
POWER AMPLIFIER
PB-3000
SUBWOOFER
page 10 |
owners manual
