AC Power Connection
Connect the subwoofer power cord to the subwoofer ampli er and directly into an AC outlet.
Convenience outlets located on the rear panel of some AV receivers or pre/pros are NOT recom-
mended for your PB-3000 as these outlets are not meant for high power devices.

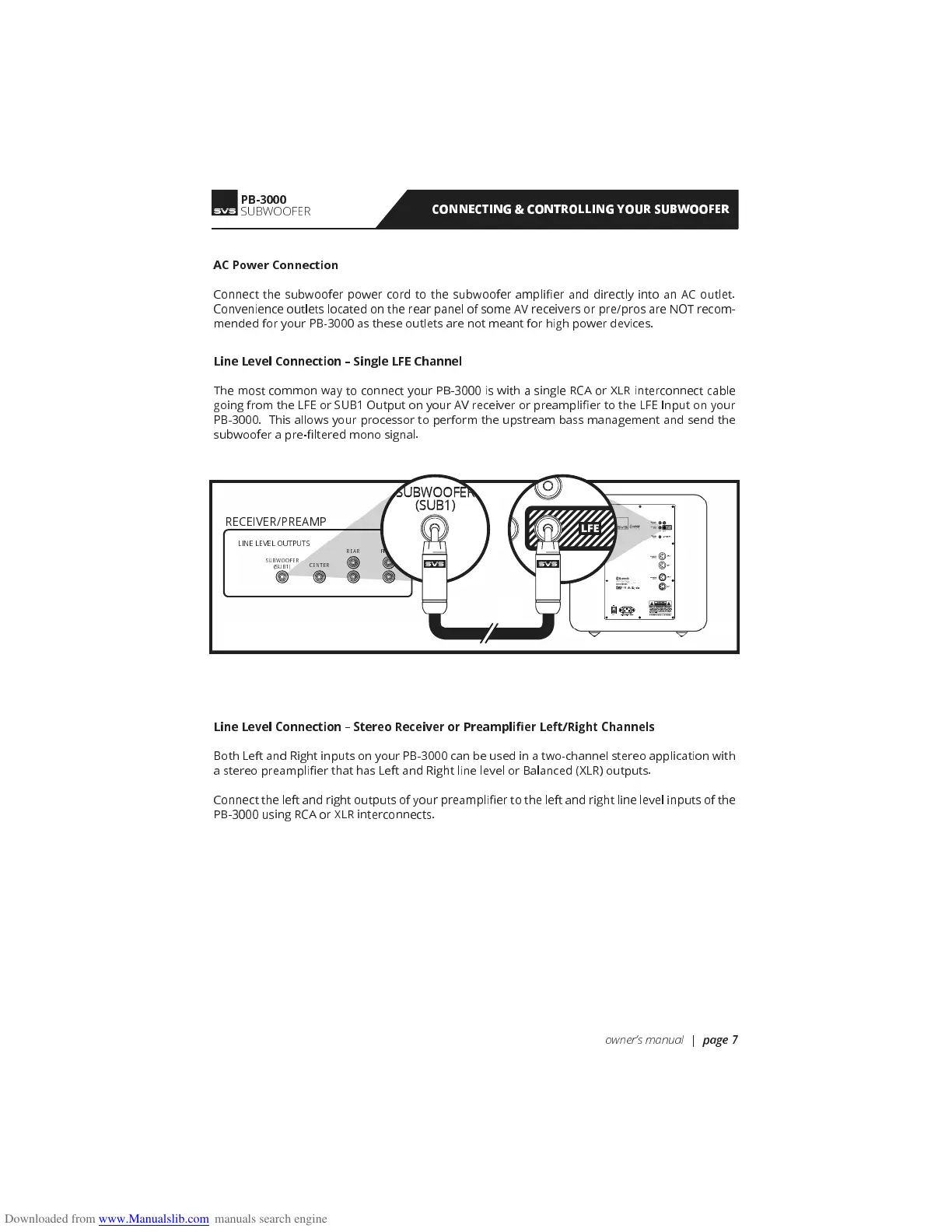

Line Level Connection  Single LFE Channel
The most common way to connect your PB-3000 is with a single RCA or XLR interconnect cable
going from the LFE or SUB1 Output on your AV receiver or preampli er to the LFE Input on your
PB-3000. This allows your processor to perform the upstream bass management and send the
subwoofer a pre- ltered mono signal.
CENTER
REAR FRONT
SUBWOOFER
(SUB1)
LINE LEVEL OUTPUTS
RECEIVER/PREAMP
CONNECTING & CONTROLLING YOUR SUBWOOFER
Line Level Connection  Stereo Receiver or Preampli er Left/Right Channels
Both Left and Right inputs on your PB-3000 can be used in a two-channel stereo application with
a stereo preampli er that has Left and Right line level or Balanced (XLR) outputs.
Connect the left and right outputs of your preampli er to the left and right line level inputs of the
PB-3000 using RCA or XLR interconnects.
PB-3000
SUBWOOFER
owners manual | page 7
