CONNECTING & CONTROLLING YOUR SUBWOOFER
Enable and adjust the on-board low pass lter of the PB-3000 for a smooth blend with the main
speakers.
NOTE: For additional guidance on speaker/subwoofer crossover settings, please consult our Sound
Experts or our Merlin subwoofer matching tool at www.svsound.com/merlin.
www.svsound.com  custservice@svsound.com  (877) 626-5623
3V-12V Trigger Input
This feature will automatically turn the subwoofer on/o when a signal is sent to the trigger input
from another component in the system (typically the pre/pro or AV receiver). The other compo-
nent in the system must be equipped with a trigger output feature and requires a TS 1/8 mono
cable (pictured below).
LINE LEVEL OUTPUTS
REAR FRONT
R
L
RECEIVER/PREAMP

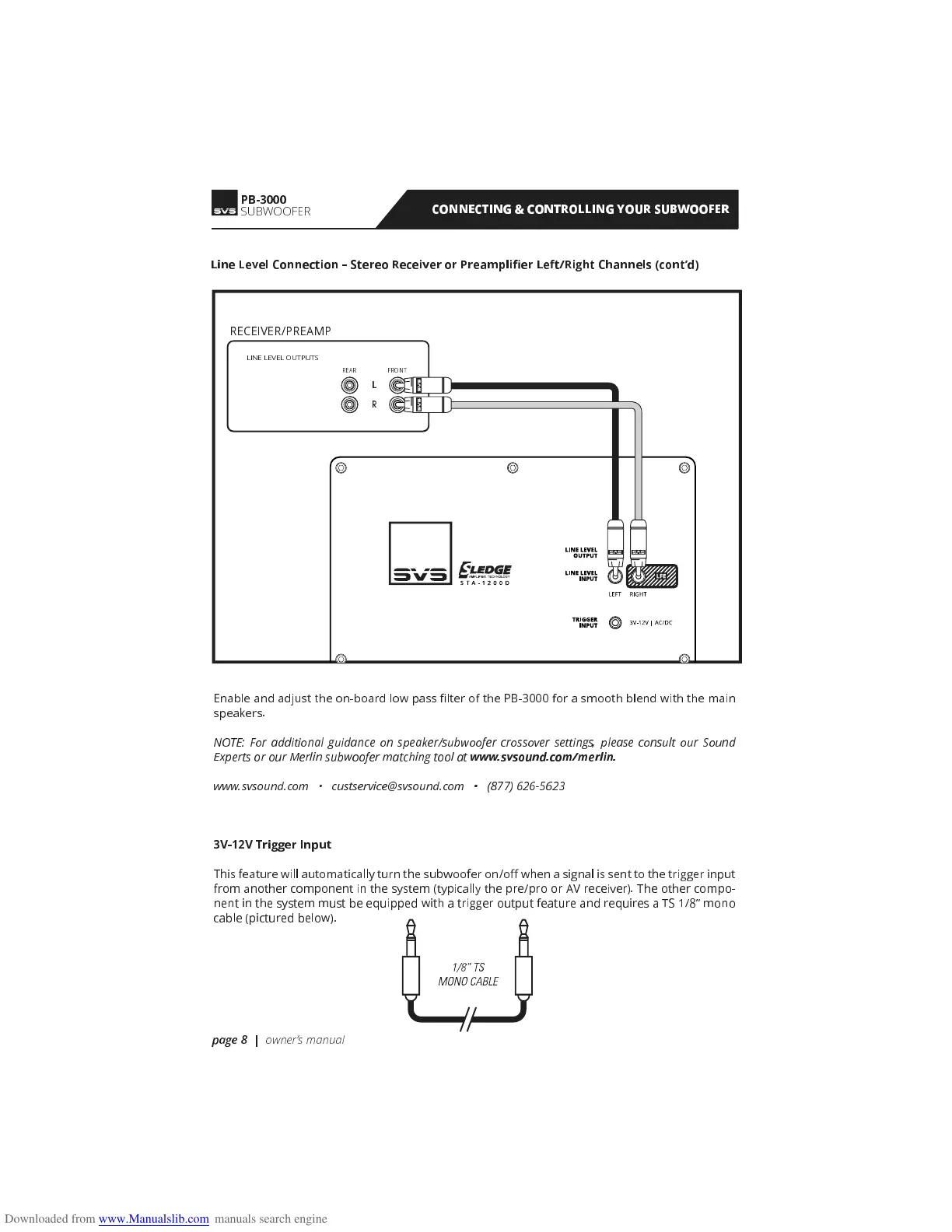

Line Level Connection  Stereo Receiver or Preampli er Left/Right Channels (contd)
PB-3000
SUBWOOFER
page 8 | owners manual
