66
3
1
2
5

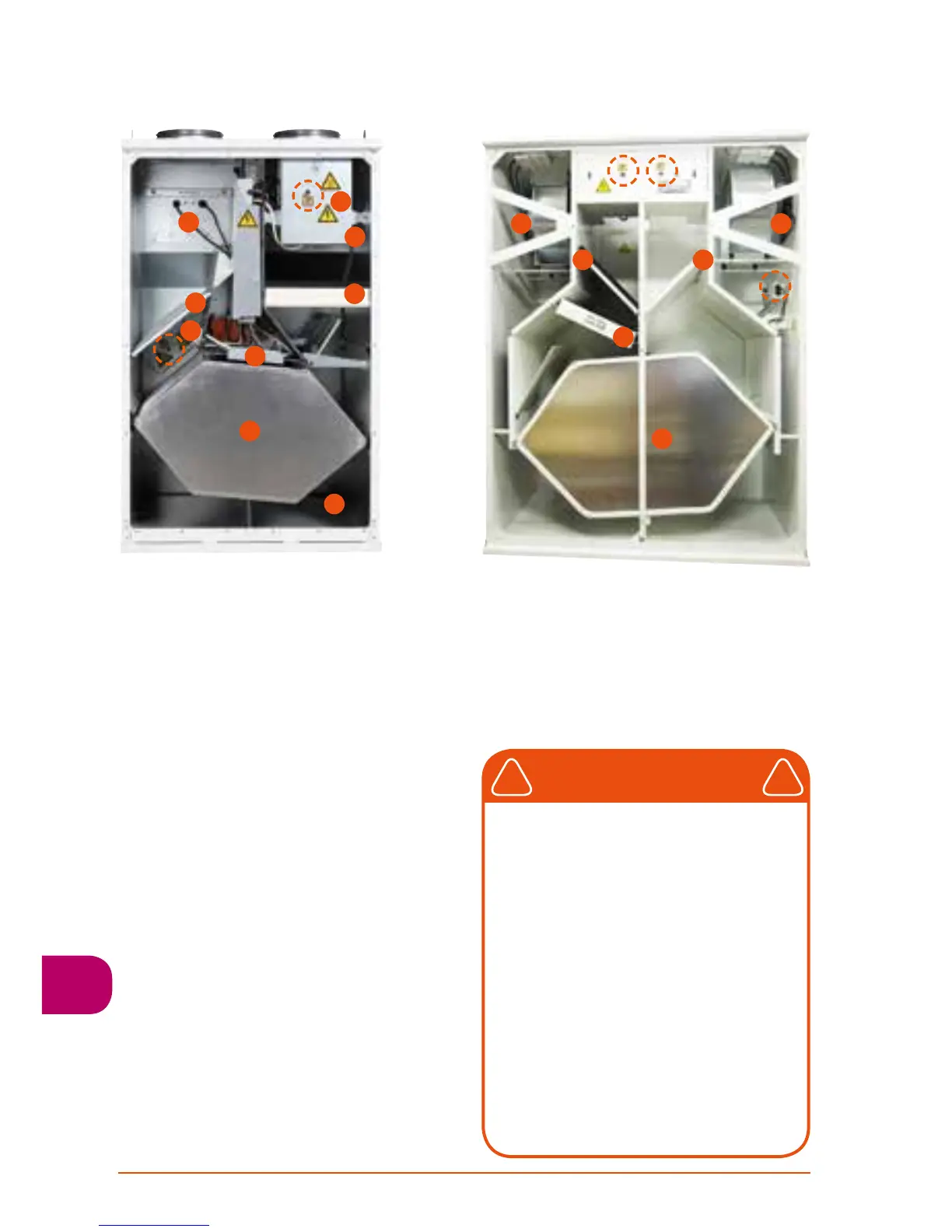

1. Supply air filter
2. Extract air filter
3. Heat exchanger
4. Supply air fan
5. Extract air fan
1
4
1. Supply air filter
2. Extract air filter
3. Heat exchanger
4. Heat exchanger’s sealing plate
5. Condensate discharge
6. Air heater, pre-heating
7. Air heater, reheating
8. Supply air fan’s mounting plate (behind the
air heater for preheating)
9. Extract air fan’s mounting plate
1
2
3
4
5
6
7
8
9
CASA
®
W5 Smart
CASA
®
W9 Smart
Important
You must not change the settings
when cleaning the supply air dif-
fuser and extract air diffuser. The
air diffusers have be adjusted in
conjunction with commissioning
of the ventilation system.
A qualified technician sets the fan
speeds in accordance with na-
tional regulations in conjunction
with the commissioning of the
ventilation system. You should
not change the air flow yourself
as this may disruption system
functionality.
!!
