6. List of components and accessories W3/W4
Accessories, installation
• Set of filters F7 +2 pcs. G3: W304FS
• Smart control panel: SC10*
• Modular cable, 20 m: PMK20*
• Wall mounting bracket: WRWMB*
• Ceiling mounting frame (W3): PW080KA
Ceiling mounting frame (W4): PW100KA
• Mounting frame with vapour barrier (W3):
PW080YP
Mounting frame with vapour barrier (W4):
PW100YP
• Condensate discharge tube: CDH3*
• Water trap: UVL
2
9
10
6
4
7
5
3
6
11
2
1
12

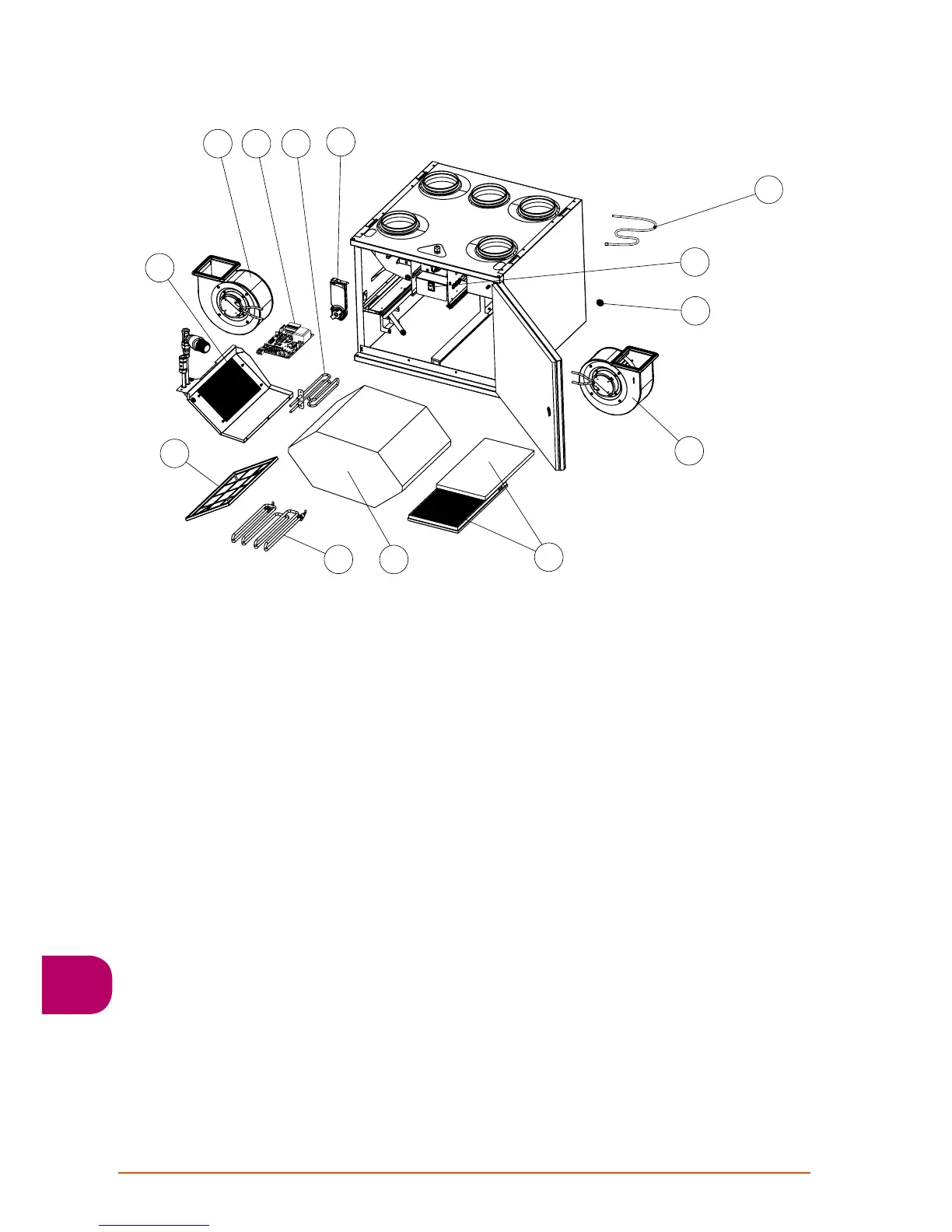

1. Temperature sensor
2. Fan panel (W3, R-model):
- Supply air fan: PEC119L
- Extract air fan: PEC119R
Fan package (W3, L-model):
- Supply air fan: PEC119R
- Extract air fan: PEC119L
Fan package (W4, R-model):
- Supply air fan PWEC175L
- Extract air fan: PEC119R
Fan package (W4, L-model):
- Supply air fan: PWEC175R
- Extract air fan: PEC119L
3. Air heater, preheating, 1,000 W: 60369
Air heater, preheating 500 W: 50269 **
4. Air heater, reheating: 50269
5. EC circuit card: 6030107
6. Set of filters: W304FS
7. Heat exchanger: 61033
8. Door: DWN304RL
9. Damper motor: 60348
- Release magnet: 60347
10. Air heater, reheating (Econo, R model): 620220
Air heater, reheating (Econo, L model): 620221
11. Service switch: 50319
12. Anti-vibration mountings (2 pcs.): 60791
*) Included in the delivery
*) W4 models W04VR05S110A
W04VL05S110A
W04VREES110A
W04VLEES110A
**) W3 models W03VR05SL00A
W03VL05SL00A
To Next Page
