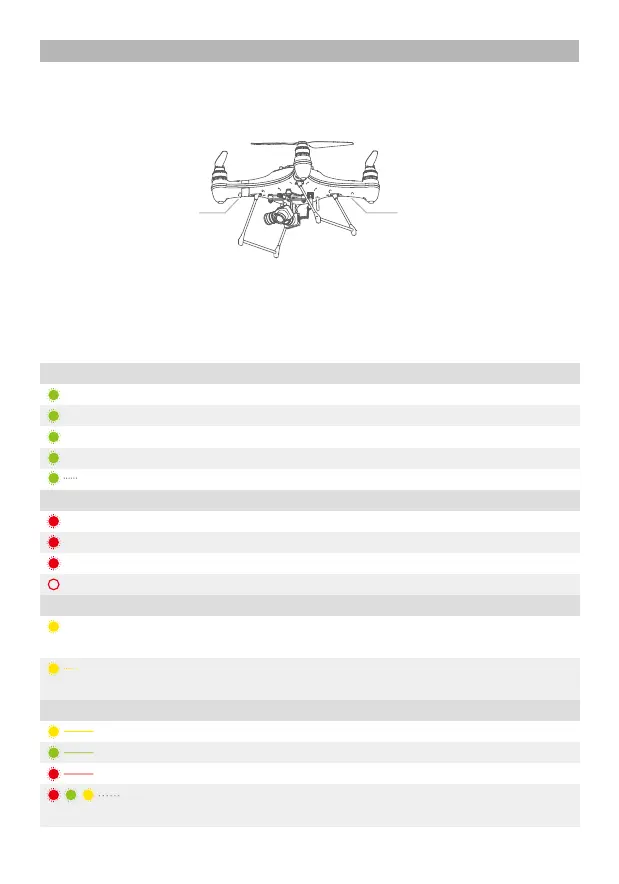

The fuselage of the drone includes a pair of nose LED indicator lights, and the drone status
indicator lights on the rear arms. Their positions are shown below:
The nose LED indicator lights are used to indicate the direction of the nose of the drone. The
rear aircraft status indicator lights indicate the status of the current flight control system.
Please refer to the following table for the different flash modes for the flight control system.
Drone Indication Lights
Drone status indicator
Flight Mode
x1 One Green Flash
Two Green Flashes
Three Green Flashes
Four Green Flashes
Green Fast Flashing
ATTI Mode
GPS Mode
Circling flight & Smart Cruise (Optional)
Cruise Flight
APP control/ Return Home
Nose indication Lights
Drone Status Indicator Lights
x2
x3
x4
GPS Status
x3 Three Red Flashes
Two Red Flashes
One Red Flash
No Red Flash
No GPS connection, or no GPS signal
Poor GPS signal
Satisfactory GPS signal
Good GPS signal
x2
x1
Two-Sided compass calibration
Yellow ON
Green ON
Red ON
Alternating - Red, Green,
Yellow slow flashing
Horizontal Calibration
Vertical Calibration
Calibration Failure
Calibration Success
Low battery warning
x3 Three Yellow Flashes
Yellow Fast Flashing
First level low battery warning, for safety,
land as soon as possible.
Second level low battery warning, the
drone will start it’s auto landing sequence.
