The Towing Code
11

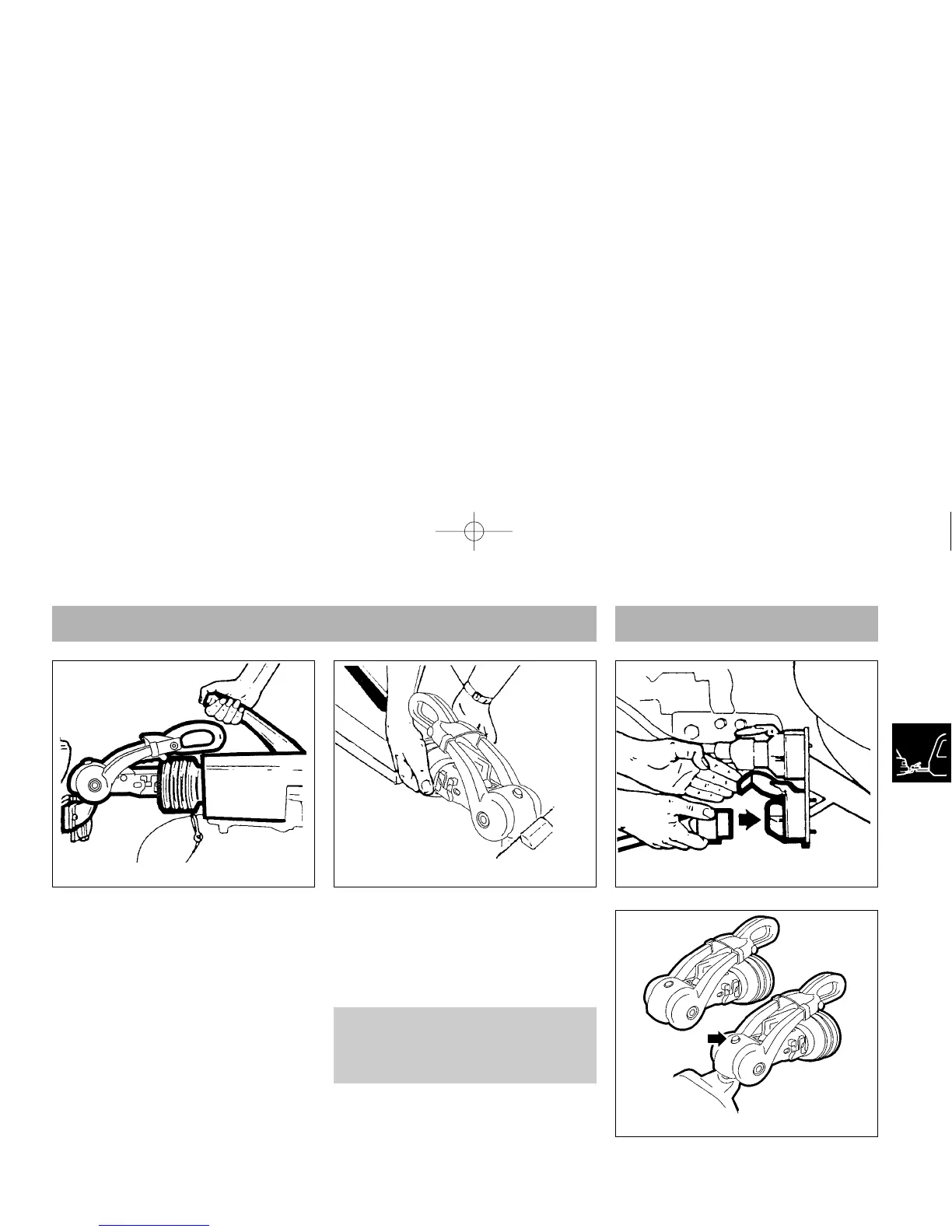

Fig. B Checking Secure Attachment Fig. C Connections - 7 pin PlugFig. A Handbrake
Adjust jockey wheel to lower cup on to the
ball. A click indicates it is fully engaged. Ensure
black handle has returned to its free position.
Secure caravan handbrake. (Fig. A)
Connect breakaway cable as described on
page 13.
Fig. D Hitch Head Visual Indicator
Lock the caravan exterior door.
An assistant can help in the hitching
operation by standing on the left hand side
of the drawbar (facing rear of car) and
extending an arm horizontally to indicate
position of the coupling. When reversing aim
the towball of the car directly at the caravan
drawbar. Remove towball cover and keep in
car.
Adjust the jockey wheel to ensure the cup is
high enough to slide over the towball.
Release caravan handbrake.
Position cup over the ungreased towball,
release and lift forward the large red
stabiliser handle (Fig. B, Page 10), lift forward
the exposed smaller black handle (Fig. B,
Page 10), until it clicks up. The hitch head is
fitted with a visual indicator to show whether
or not it is properly connected to the towball.
A green band will show immediately below
the red indicator button on the hitch head
when a proper connection has been made.
(See Fig. D)
WARNING: If the green band is showing
when the hitch head is not connected
to the towball there is a fault - contact
your Dealer.
