Fitted Equipment
76

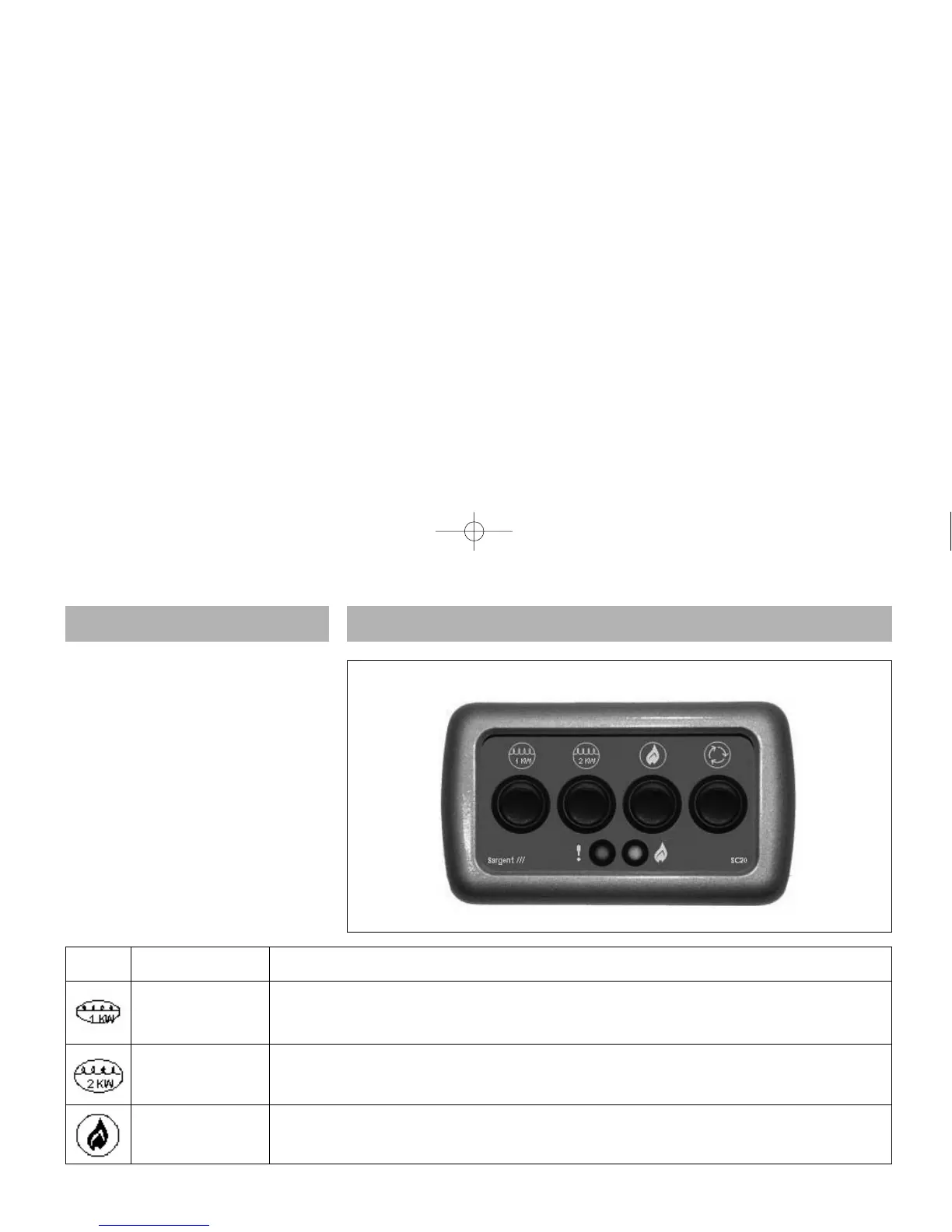

SC20 Control Panel
Symbol
Function
Description
1kW Heating
230V heating cartridge switched on/of
f.
Element On/Off
2kW Heating
230V heating cartridge switched on/off.
Element On/Off
6kW Gas Burner
LPG boiler switched on/off.
On/Off
ALDE COMP
ACT 3000
OPERA
TING INSTRUCTIONS
T
o be read in conjunction with the Alde
Manual
SC20 OPERA
TION
1711 Caravan Owners Hbook 2006 21/7/05 6:04 pm Page 76
80
82
