Electrics
51

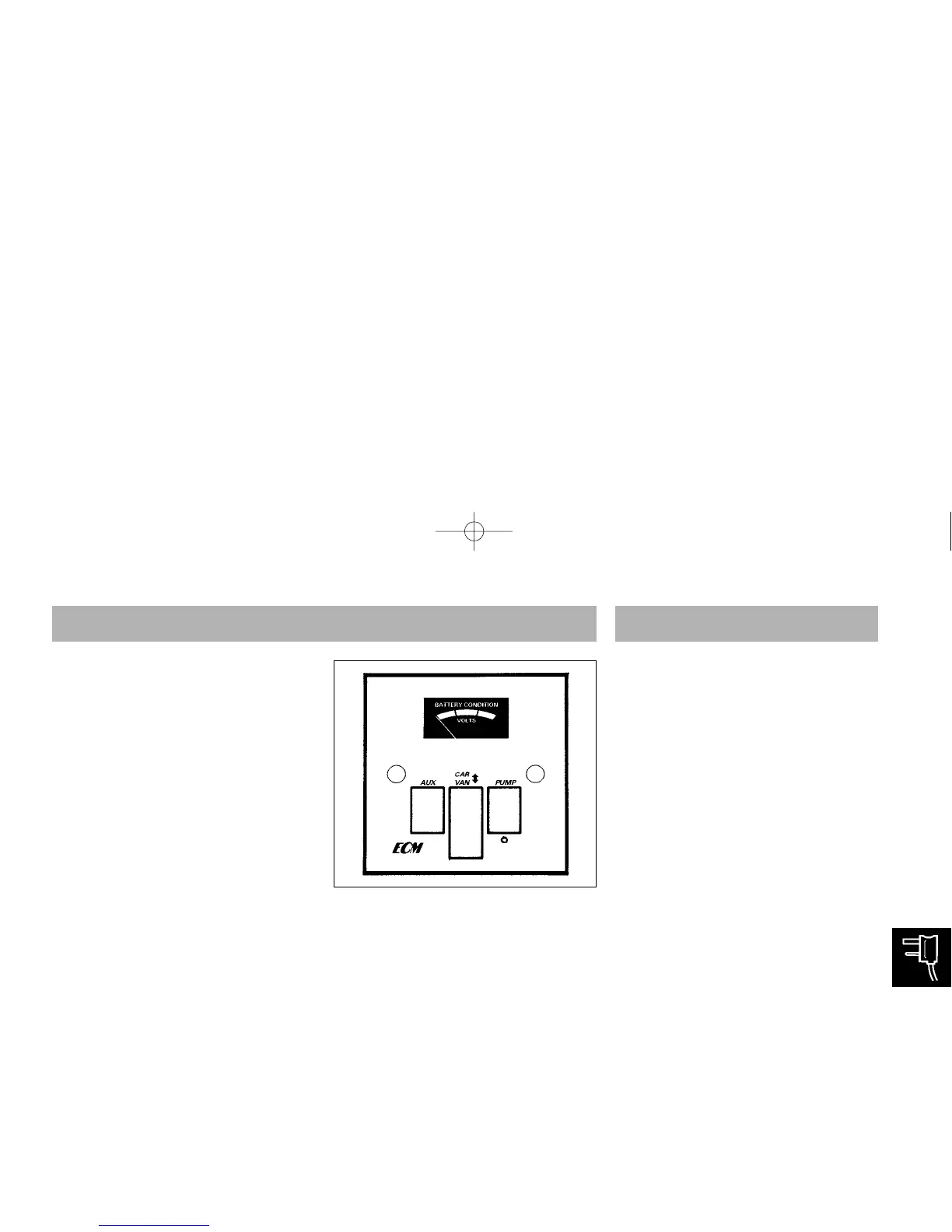

ECM ELECTRICAL CONTROL
MODULE
PUMP SWITCH AND INDICATOR
Included on this panel is a pump isolation
switch and pump running indicator. The
pump isolation switch is used to isolate
power to the water pump in the event of a
pump fault or merely as a safeguard against
unwanted pump operation. The red pump
running indicator will light up as a warning
when the water pump has been activated.
AUX SWITCH
This switch may be used to power any
auxiliary DC circuits the user may wish to
have added to the system.
Battery Condition Meter
This meter indicates the power remaining in
your caravan battery.
Readings should be taken as follows:
Green region - Fully charged
(no charge necessary
Yellow region - Adequate charge
(re-charge if desired)
Red region - Low charge
(turn on charger switch
to re-charge)
A car/caravan changeover switch is provided
in this module and should be used in the
following way:
Caravan Position
When in this position DC power is available
from the caravan battery to power all 12V
circuits. If the charger is switched ON the
caravan battery will be charged up via the
charger/transformer unit.
Central Position
When in this position with the charger switch
ON, power is provided to all 12V circuits via
the charger/transformer only. With the
charger OFF all DC circuits are isolated.
SUPPORT SERVICE
PLUG-IN SYSTEMS LIMITED PROVIDE AN
ON-CALL SERVICE FOR WARRANTY OR
NON-WARRANTY REPAIRS.
IF YOU WISH TO TAKE ADVANTAGE OF
THIS SERVICE FOR PLUG-IN-SYSTEMS
ONLY
Telephone (01482) 652523 and ask for
PRODUCT SUPPORT SERVICE.
