Electrics
46

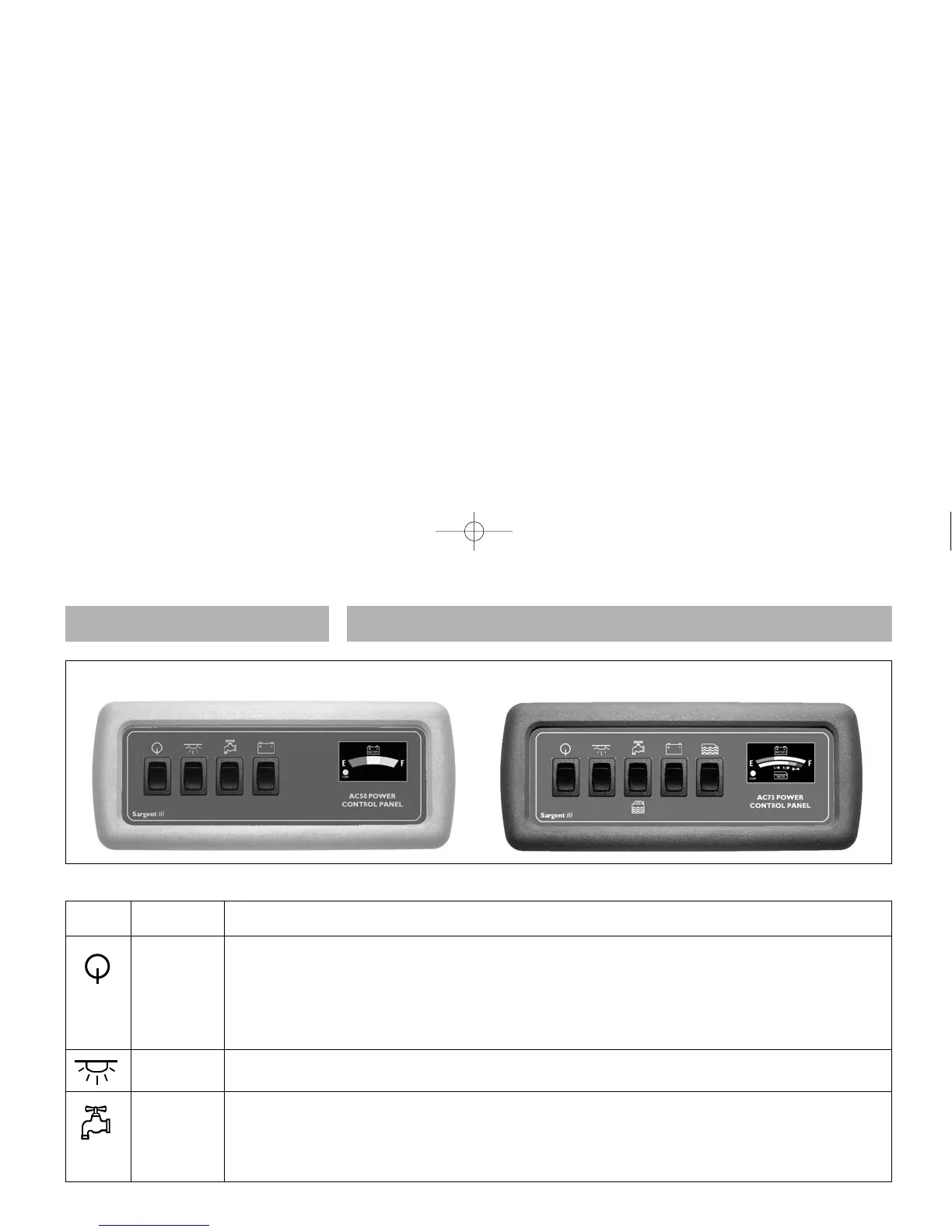

AC50 Control Panel
AC75 Control Panel
Symbol Function Description
12V Power This switch turns on (or off) the 12V power to all circuits.
On/Off
Note: as this switch works in conjunction with a relay (that uses around 40mA to operate), it should only be used
for relatively short periods of time while using the caravan (i.e. when going out for the day).
For long-term isolation of the 12V power, please place the Car / Van selector switch on the ESM2004 power
supply unit in the centre (Off) position (i.e. during storage).
Entry light This switch operates the internal entry light (usually the first light within the caravan).
Water Pump This switch turns on power to the water pump ready for use. It can be used to turn off the pump over night to
(AC50 only) avoid any noise from the pump (down on, up off).
Note: A green indicator lamp will illuminate within the bottom left corner of the battery gauge when the pump
motor is running.
