The Towing Code
14
ROAD LIGHTING
For your information the wiring diagram of
the 12N and 12S connectors is shown
opposite. These should be checked regularly
and if in any doubt a qualified electrician
consulted.
Some European cars may be equipped with
Volta, Jeager, West or multi-con sockets, an
adaptor or replacement sockets may be
required. If so consult your dealer or qualified
electrician.
The wiring allocations were changed in 1998
and it is important that you check the car to
caravan connections are compatible prior to
coupling up to the car.
WARNING: Always disconnect the
electrical connector between the
towing vehicle and the caravan before
connecting a low voltage supply to the
caravan (mains) and before charging
the battery (EN 1648-1).
• All road lights must be in working order.
• Lenses and reflectors must be in good
condition
• Bulbs must be of correct wattage for the
application (see Service handbook).
TERMINAL COLOUR 12N PLUG
1 YELLOW L/H INDICATOR
2 BLUE REAR FOG LAMP
3 WHITE COMMON RETURN (1-7)
4 GREEN R/H INDICATOR
5 BROWN R/H SIDE TAIL & No PLATE LIGHT
6 RED STOP LAMP
7 BLACK L/H SIDE TAIL & No PLATE LIGHT
TERMINAL COLOUR 12S PLUG
1 YELLOW REVERSING LIGHT
2 BLUE NO ALLOCATION
3 WHITE NEGATIVE PIN 4
4 GREEN CONTINUOUS POWER SUPPLY
5 BROWN NO ALLOCATION
6 RED FRIDGE
7 BLACK RETURN FOR FRIDGE

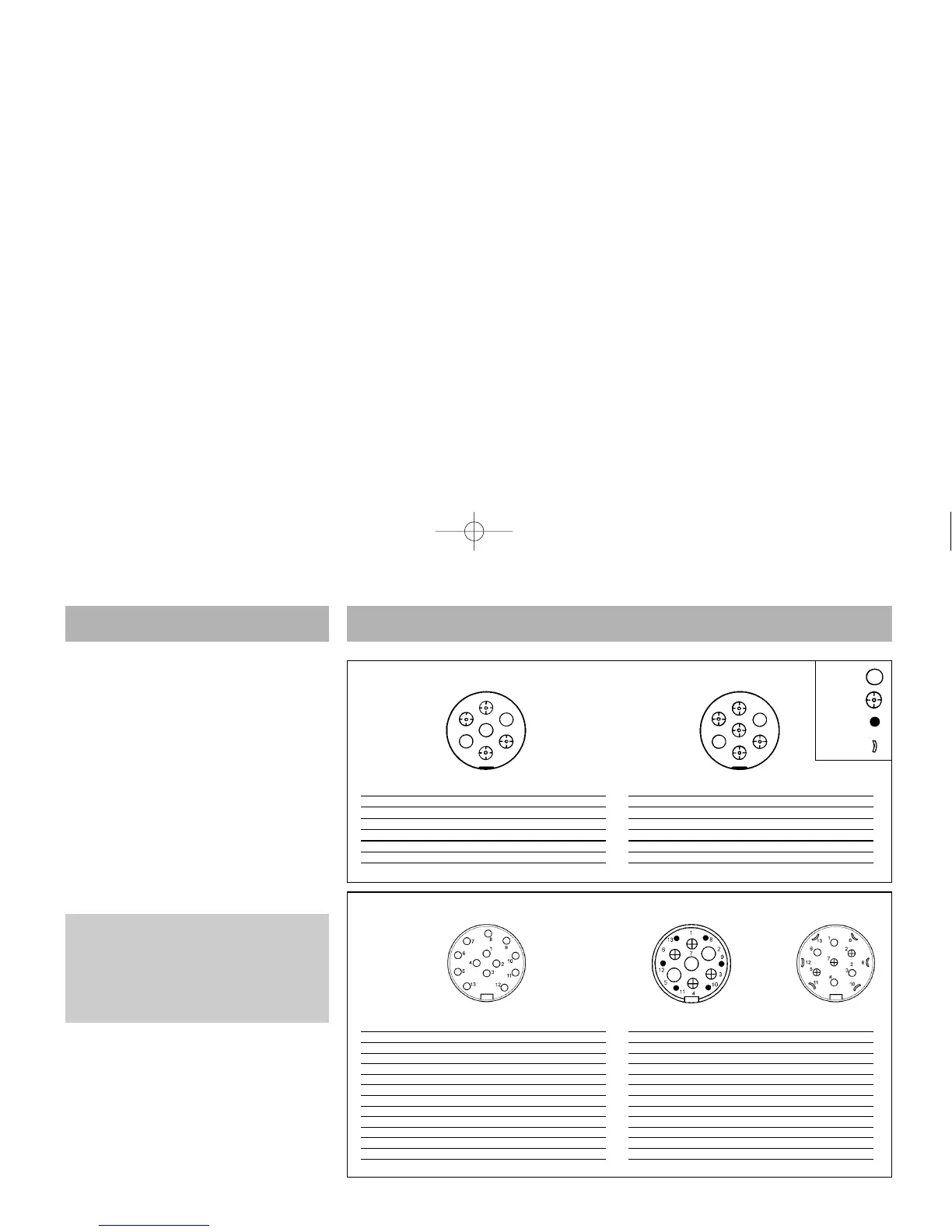

12N AND 12S VIEWED FROM REAR OF PLUG
12N (BLACK) 12S (GREY)
TUBES
PINS
PINS
STRIPS
PIN NO COLOUR DESCRIPTION
1 YELLOW LEFT FLASHER
2 BLUE FOG HAZARD LIGHT
3 WHITE EARTH FOR 1-8
4 GREEN RIGHT FLASHER
5 BROWN RIGHT TAIL LIGHT
6 RED STOP LIGHTS
7 BLACK LEFT TAIL LIGHT
8 ORANGE REVERSE LIGHTS
9 BROWN/BLUE CAR +
10 BROWN/RED FRIDGE
11 WHITE/BLACK EARTH FOR 10
12 NOT YET ALLOCATED
13 WHITE/GREEN EARTH FOR 9
PIN NO COLOUR DESCRIPTION
1 YELLOW LEFT FLASHER
2 BLUE FOG HAZARD LIGHT
3 WHITE EARTH FOR 1-8
4 GREEN RIGHT FLASHER
5 BROWN RIGHT TAIL LIGHT
6 RED STOP LIGHTS
7 BLACK LEFT TAIL LIGHT
8 ORANGE REVERSE LIGHTS
9 BROWN/BLUE CAR +
10 BROWN/RED FRIDGE
11 WHITE/BLACK EARTH FOR 10
12 NOT YET ALLOCATED
13 WHITE/GREEN EARTH FOR 9
VOLTA/JEAGER & MULTICON FEDER 13 PIN PLUGS (viewed from rear)
VOLTA/JEAGER WEST
MULTICON
FEDER 13K
