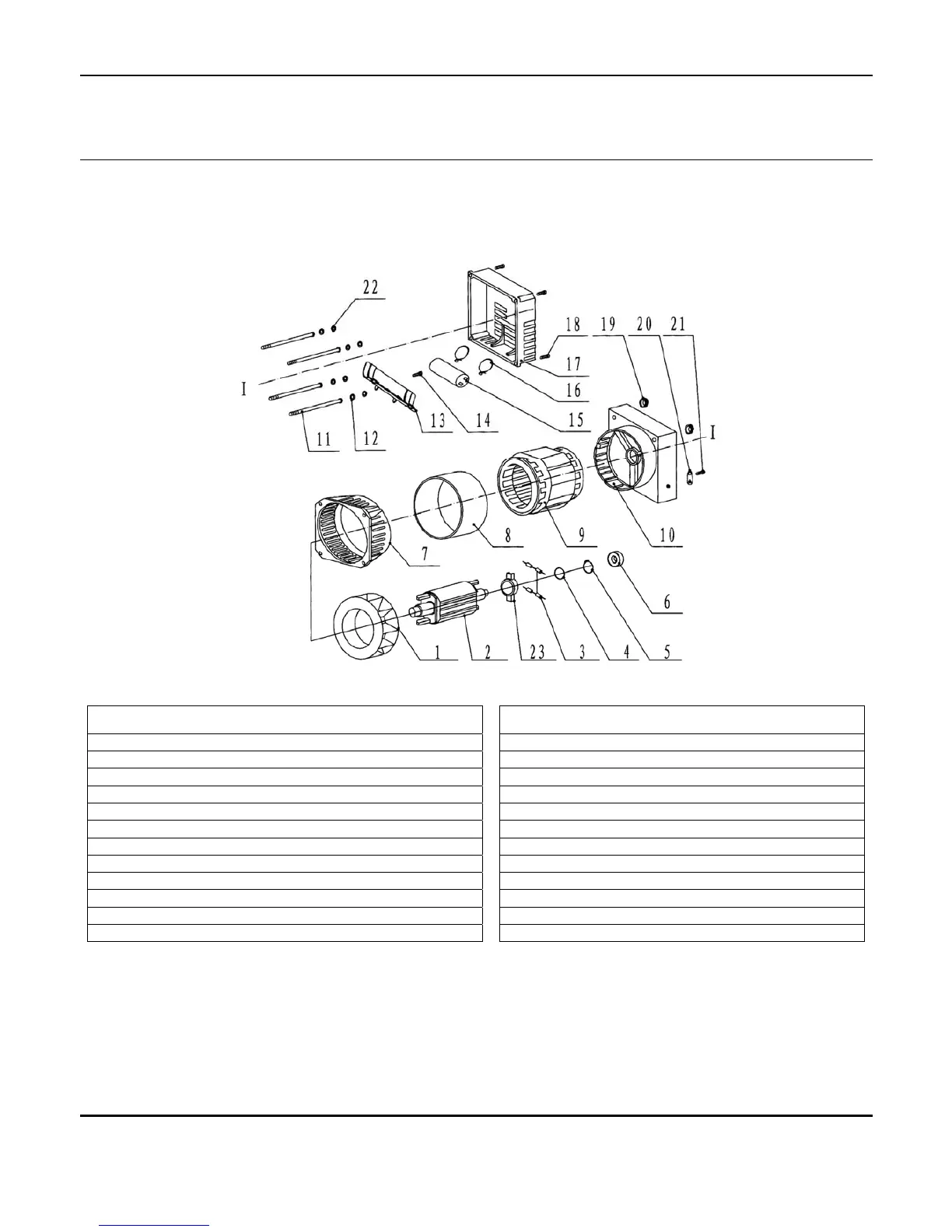

Sycamore 6000L - Generator Parts Listing - Figure B

6000 Watt Generator
Generator Parts Listing
Figure B
ITEM
NO.
DESCRIPTION PSYCG # QTY.
ITEM
NO.
DESCRIPTION PSYCG # QTY.
B01 COOLING FAN PSYCG7000EB01 1
B13 CAPACITOR SHELF PSYCG7000EB13 1
B02 ROTOR PSYCG6000LB02 1
B14 OVAL HEAD BOLT M5x8 PSYCG7000EB14 1
B03 DIODE PSYCG7000EB03 4
B15 CAPACITOR PSYCG6000LB15 1
B04 Ø32 WASHER PSYCG7000EB04 1
B16 CAPACITOR FASTENER PSYCG7000EB16 2
B05 Ø32 CLAMP PSYCG7000EB05 1
B17 ALTENATOR COVER PSYCG7000EB17 1
B06 BEARING PSYCG7000EB06 1
B18 OVAL HEAD BOLT M5x12 PSYCG7000EB18 4
B07 DRIVE END BRACKET PSYCG7000EB07 1
B19 RUBBER PAD PSYCG7000EB29 2
B08 ENCLOSING BAND PSYCG6000LB08 1
B20 GROUND PLATE PSYCG7000EB30 1
B09 STATOR PSYCG6000LB09 1
B21 OVAL HEAD BOLT M5x6 PSYCG7000EB31 1
B10 ALTERNATOR BACK COVER PSYCG7000EB10 1
B22 SPRING WASHER Ø8.2 PSYCG7000EA05 4
B11 HEX BOLT M8x210 PSYCG6000LB11 4
B23 DIODE FRAME PSYCG7000EB28 1
B12 WASHER Ø8.2 x Ø16 PSYCG7000EB12 4
