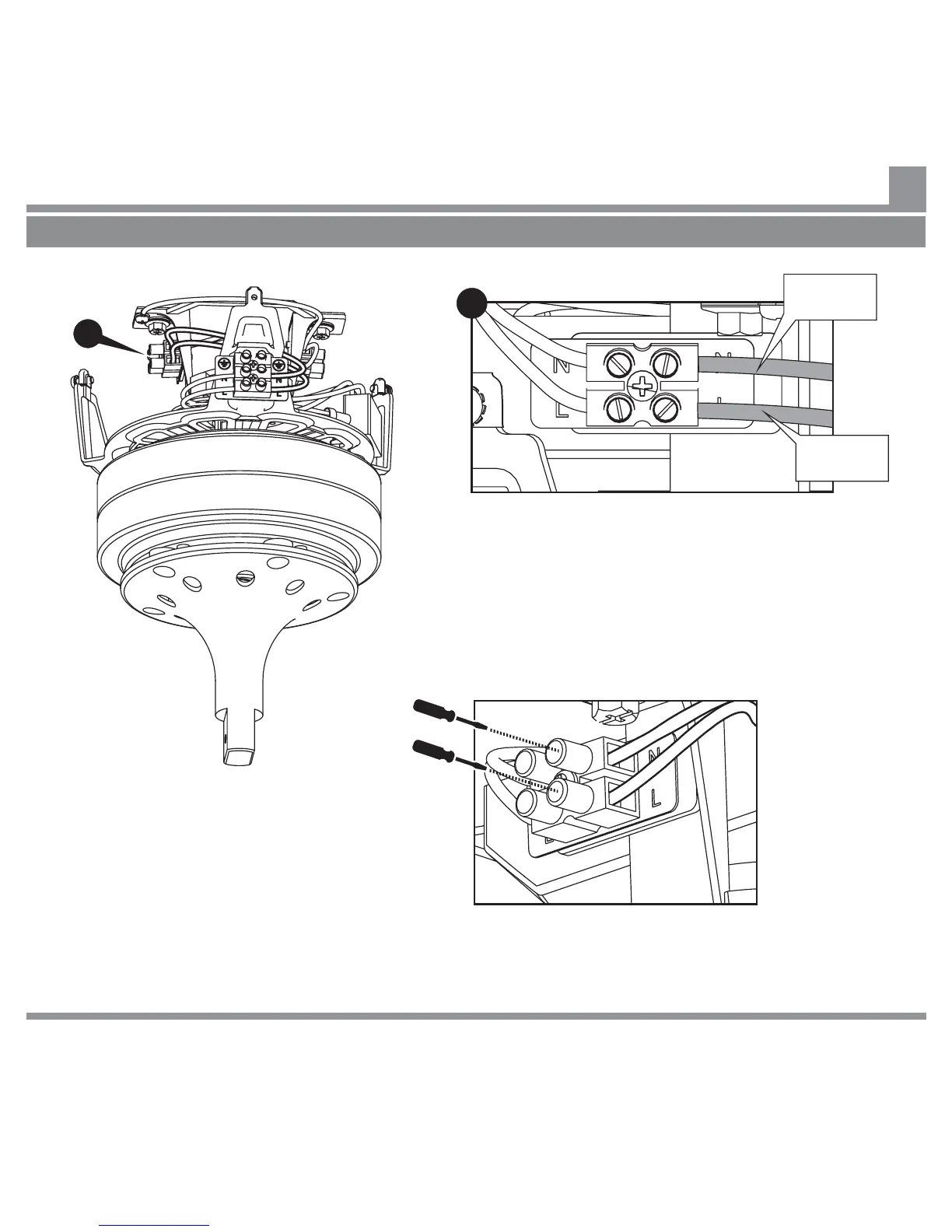

Make LIVE (Brown) and NEUTRAL (Blue)
connections from Fan Motor Assembly to
appropriate terminals on Hanger Bracket using pre-
installed wires on right side of Chassis terminal
block, as shown.
IF THERE ARE ANY PROBLEMS DURING INSTALLATION OF THE FAN, THE INSTALLER MUST CONTACT THE
HUNTER PACIFIC INTERNATIONAL WARRANTY LINE . TEL: 1300 360 280BEFORE LEAVING THE WORK SITE
If you are using a Remote Control, skip this step and go to page 18.
B
Connecting Live and Neutral Wires from Fan Motor Assembly to Hanger Bracket - Wall Controller
13
Ensure that electrical connections are good, and
terminal block screws are secure.
B
LIVE
(Brown)
NEUTRAL
(Blue)
To Next Page
