Attaching Fan Motor Housing to Fan Motor Assembly
27

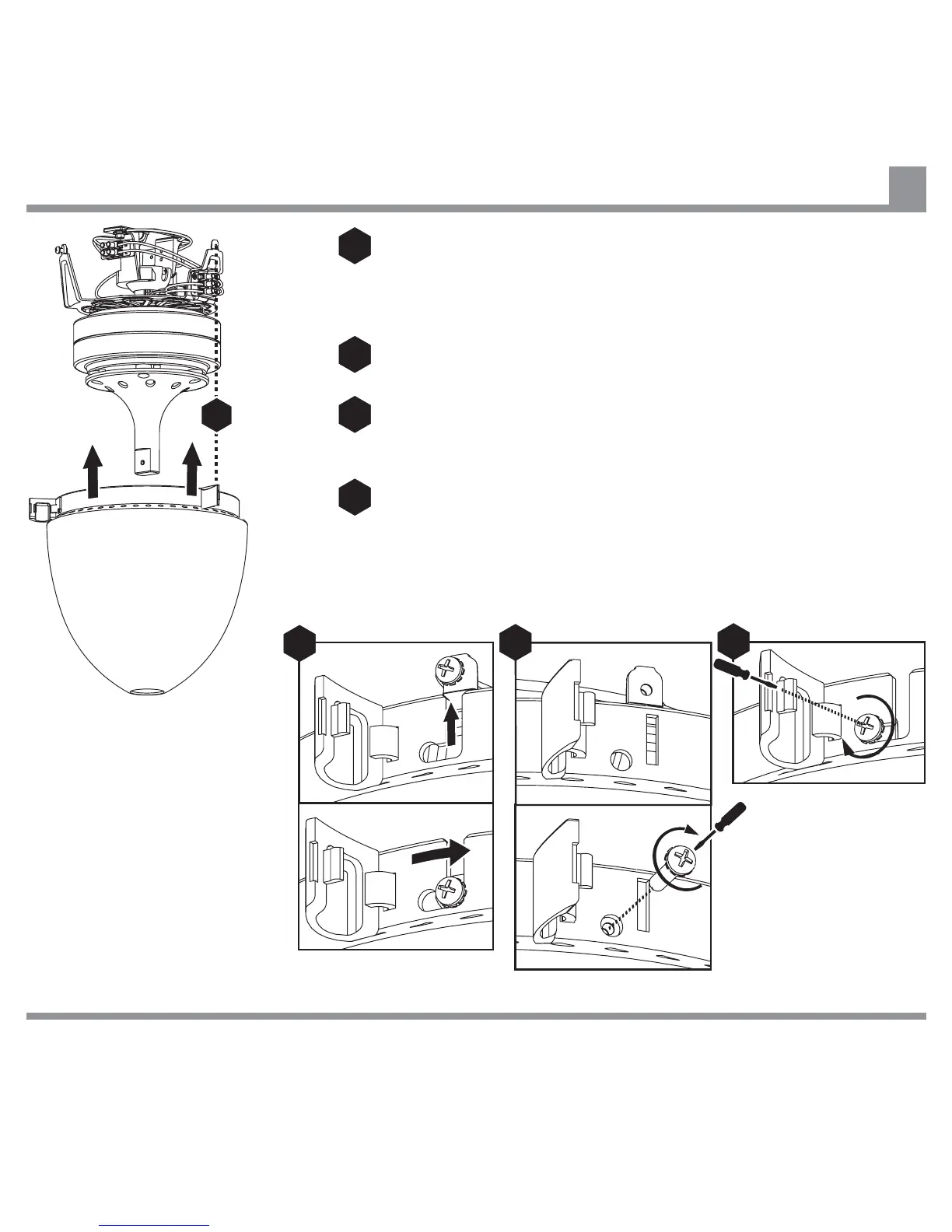

Ensure that Fan Motor Housing fixing point with hole (not
bayonet slot) is aligned with Chassis arm from which fixing
screw was removed (see page 10).
Install Fan Motor Housing using a clockwise bayonet action.
Line up fixing hole in Fan Motor Housing with screw hole in
Chassis arm and install fixing screw removed on page 10.
Secure Fan Motor Housing, ensuring all three screws are tight
but not over tight.
IF THERE ARE ANY PROBLEMS DURING INSTALLATION OF THE FAN, THE INSTALLER MUST CONTACT THE
HUNTER PACIFIC INTERNATIONAL WARRANTY LINE . TEL: 1300 360 280BEFORE LEAVING THE WORK SITE
