13. BODY COVERS
13-6

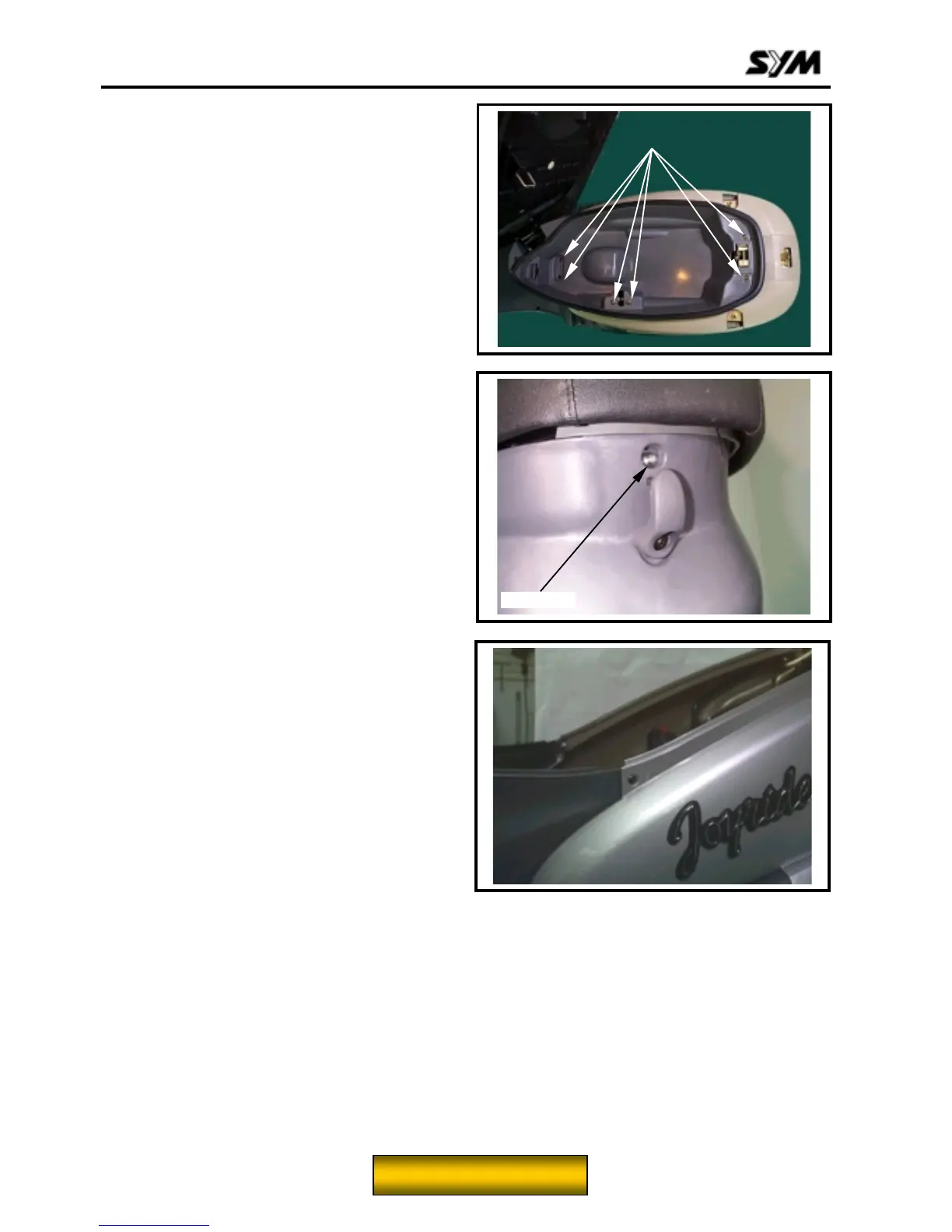

Luggage Box
Disassembly
Lift up the seat saddle
Loosen six bolts inside the luggage box.
(Bolt x 6)
Loosen one hook screw on the center cover
(Screw x 1)
Hold the front end of the luggage box and lift it
upward to take off from the frame
Assembly
In reverse order of the disassembly.
Screw x 1
Bolt x 6
