Sym Joyride200 - Battery

17.ELECTRICAL SYSTEM
17-5
Charging System
Charging Circuit
Current Leakage Test
Current Leakage Inspection
Turn the main switch to OFF position, and
remove the negative cable terminal (-) from the
battery.
Connect an ammeter between the negative cable
terminal and the battery negative terminal.
Caution
If the leaked current exceeds the specified value,
it may indicate a short circuit.
Allowable current leakage: Less than 1 mA
Disconnect each cable one by one and take
measurement of the current of each cable to
locate the short circuit.

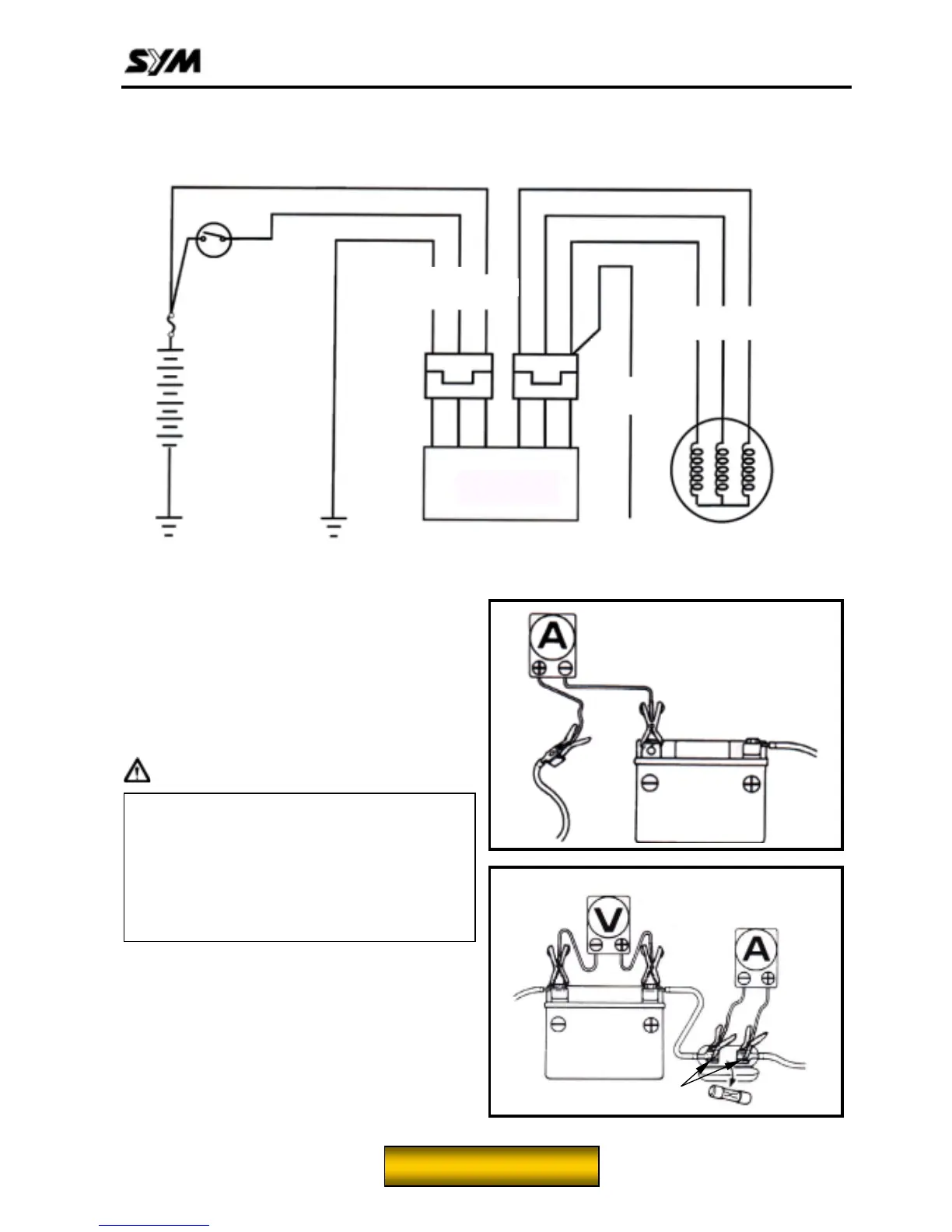

Generator
Auto by-pass
starter
Regulator rectifier
Main Switch
Fuse 20A
Battery
Green
Red
Black
Yellow
Yellow
Yellow
Yellow
z In the current leakage test, set the
current range at the largest scale, then
gradually decrease to the lower scale as
the test process goes to avoid possible
damage to the ammeter and the fuse.
z Do not turn the main switch to ON
position during test.
Battery negative
terminal
Ground
cable
Digital voltmeter
Ammeter
Fuse connector
