15. STEERING/FRONT WHEEL/FRONT BRAKE/FRONT CUSHION
15-9

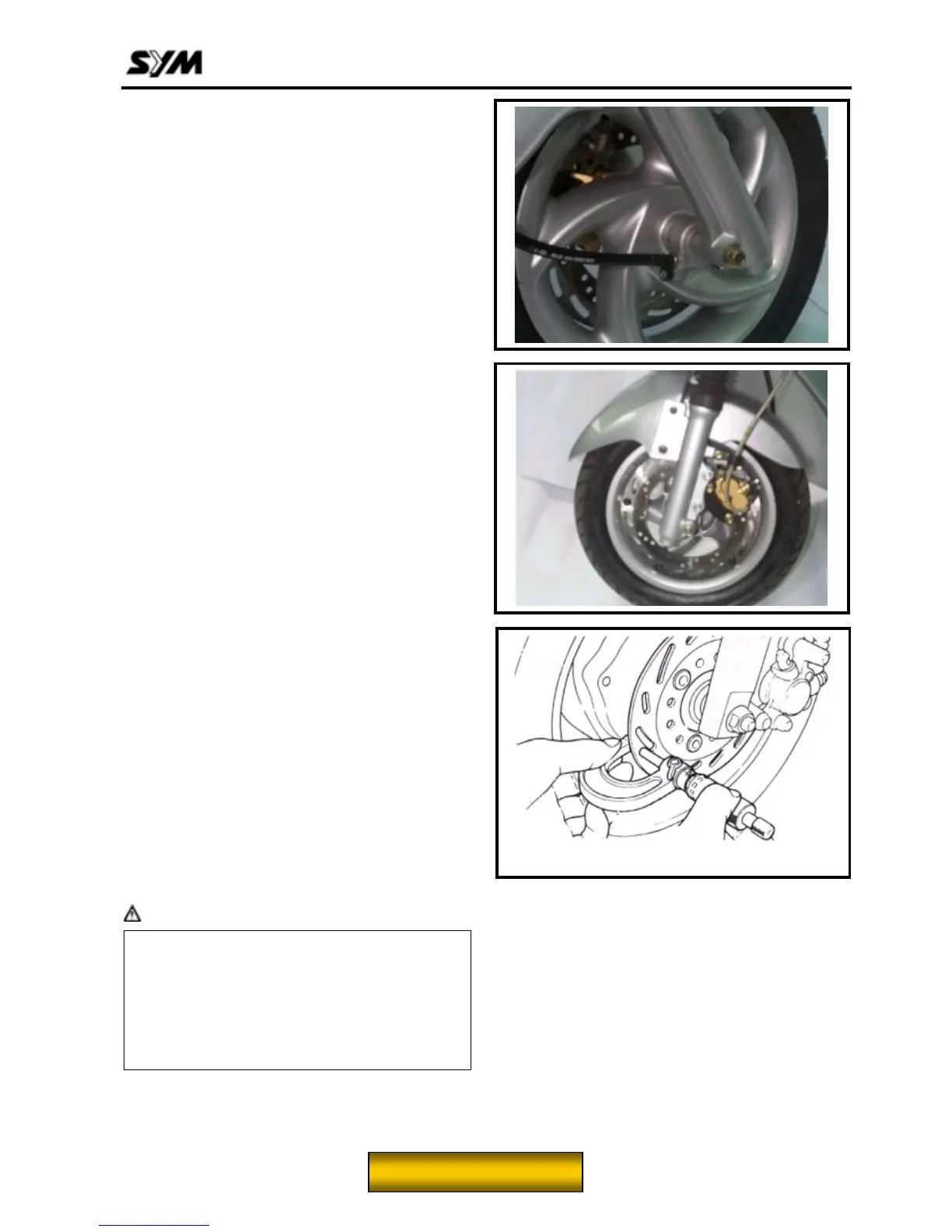

Install the speedometer cable.
Press the brake pad to open.
Install the brake caliper and tighten the lock
screw.
Torque value: 3.3 kgf-m
Front Brake
Remove the front wheel.
Loosen the lock screws and remove the brake
disk.
Inspection
Check the brake disk for smoothness, damage
and deformation. Measure the thickness of the
disk.
Allowable minimum thickness: 2.5 mm
Even the disk has an even wear, but the disk
shall not be less than the allowable minimum
thickness.
Warning
z
Never contaminate the brake disk with
grease. The contaminated brake disk
will reduce it performance.
z
Preferably, the operator shall wear
respirator and gloves, and use the
vacuum cleaner to clean the brake.
