Sym MAXSYM 400i - Page 153

9. Final Drive Mechanism
9-2

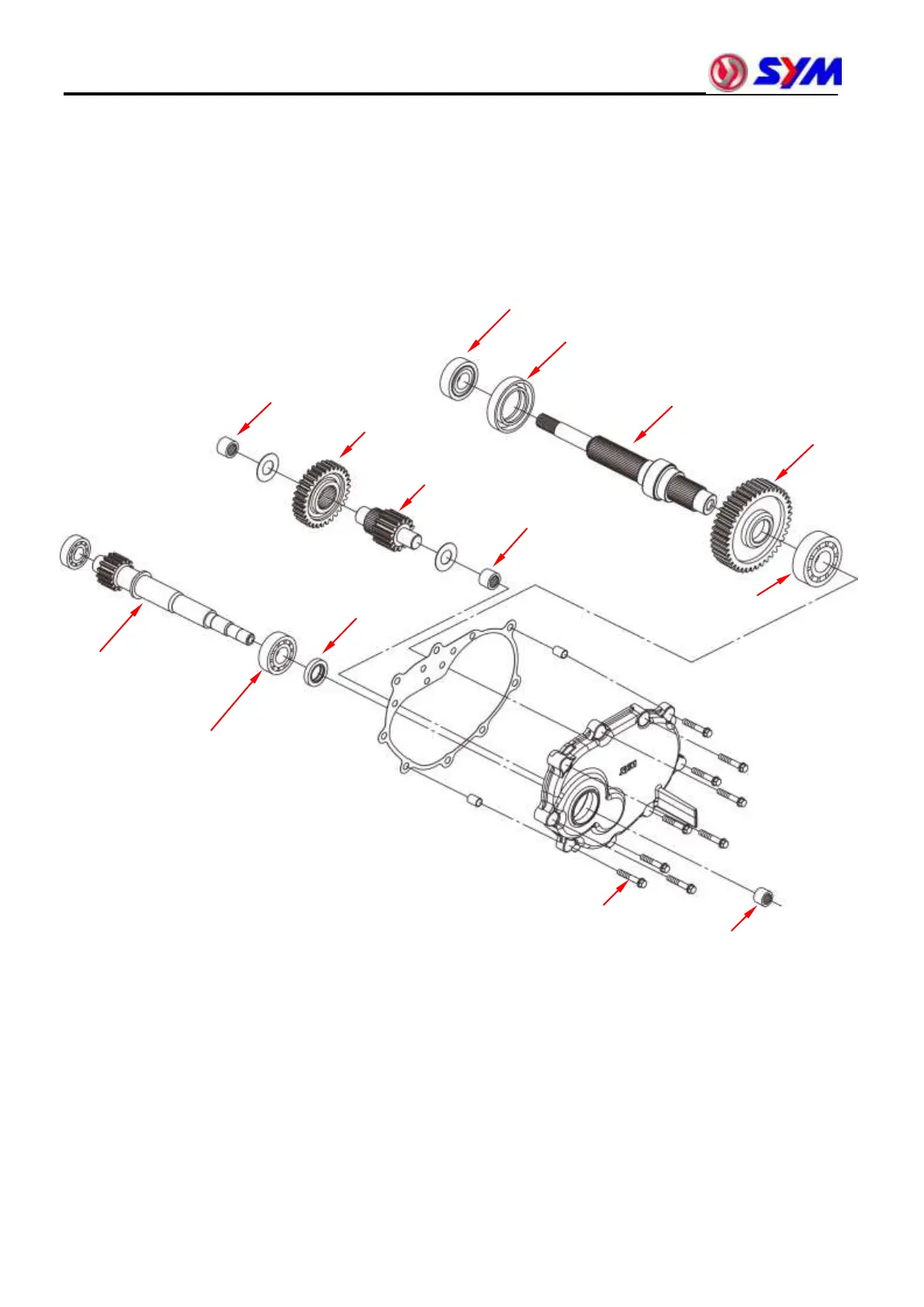

Mechanism Diagram – LX60A
Homepage
Contents
Final shaft
Oil seal 45*65*10
Radial ball bearing 6206 UU
Final gear
Radial ball bearing 6305
Counter gear
Counter shaft
Needle bearing NK22/20R
Needle bearing HKS 25*33*18
Oil seal 25*40*7
Radial ball bearing CSB305C
Drive shaft
2.4~3.0 kgf-m
Needle bearing NK22/20R
