Sym MAXSYM 400i User Manual

9. Final Drive Mechanism
9-1
Mechanism Diagram ............................ 9-1
Precautions in Operation .................... 9-3
Troubleshooting ................................... 9-3
Final Drive Mechanism Disassembly . 9-4
Final Drive Mechanism Inspection ..... 9-4
Bearing Replacement .......................... 9-5
Final Drive Mechanism Reassembly .. 9-7

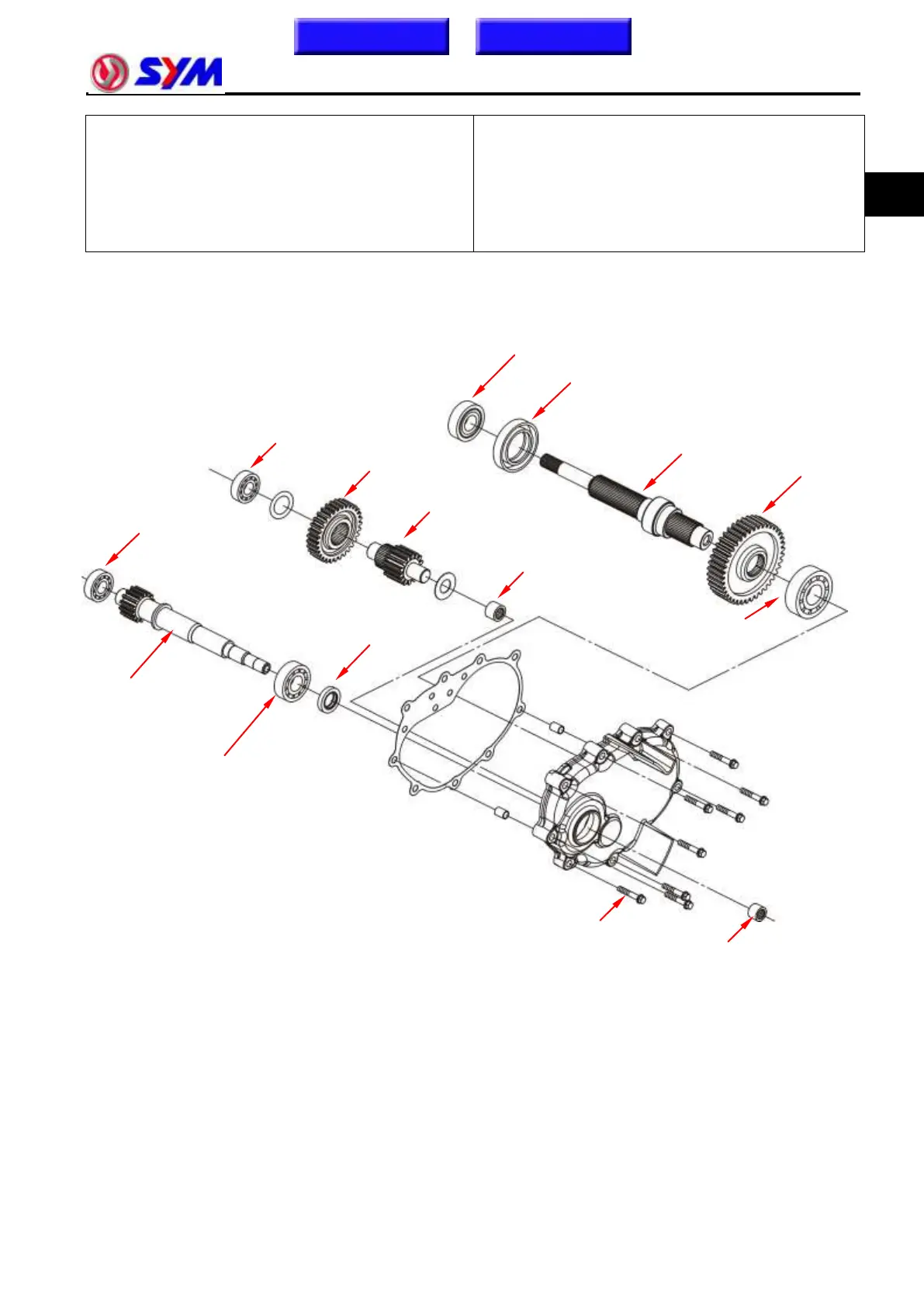

Mechanism Diagram – LX40A
9
Homepage
Contents
Final shaft
Oil seal 45*65*10
Radial ball bearing 6206 UU
Final gear
Radial ball bearing 6205
Radial ball bearing 6204
Counter gear
Counter shaft
Needle bearing NK18/20R
Needle bearing HKS 25*33*18
Oil seal 25*40*7
Radial ball bearing CSB305C
Drive shaft
Radial ball bearing 6204
2.4~3.0 kgf-m

Sym MAXSYM 400i Specifications

General

Displacement	399 cc
Fuel System	Electronic Fuel Injection
Cooling System	Liquid cooled
Transmission	CVT
Front Suspension	Telescopic fork
Seat Height	800 mm
Weight	215 kg
Tires Front	120/70-15
Tires Rear	160/60-14
Engine Type	Single-cylinder, 4-stroke
Front Brake	Disc
Rear Brake	Disc
Fuel Capacity	13 liters
Rear Suspension	Dual shock absorbers
