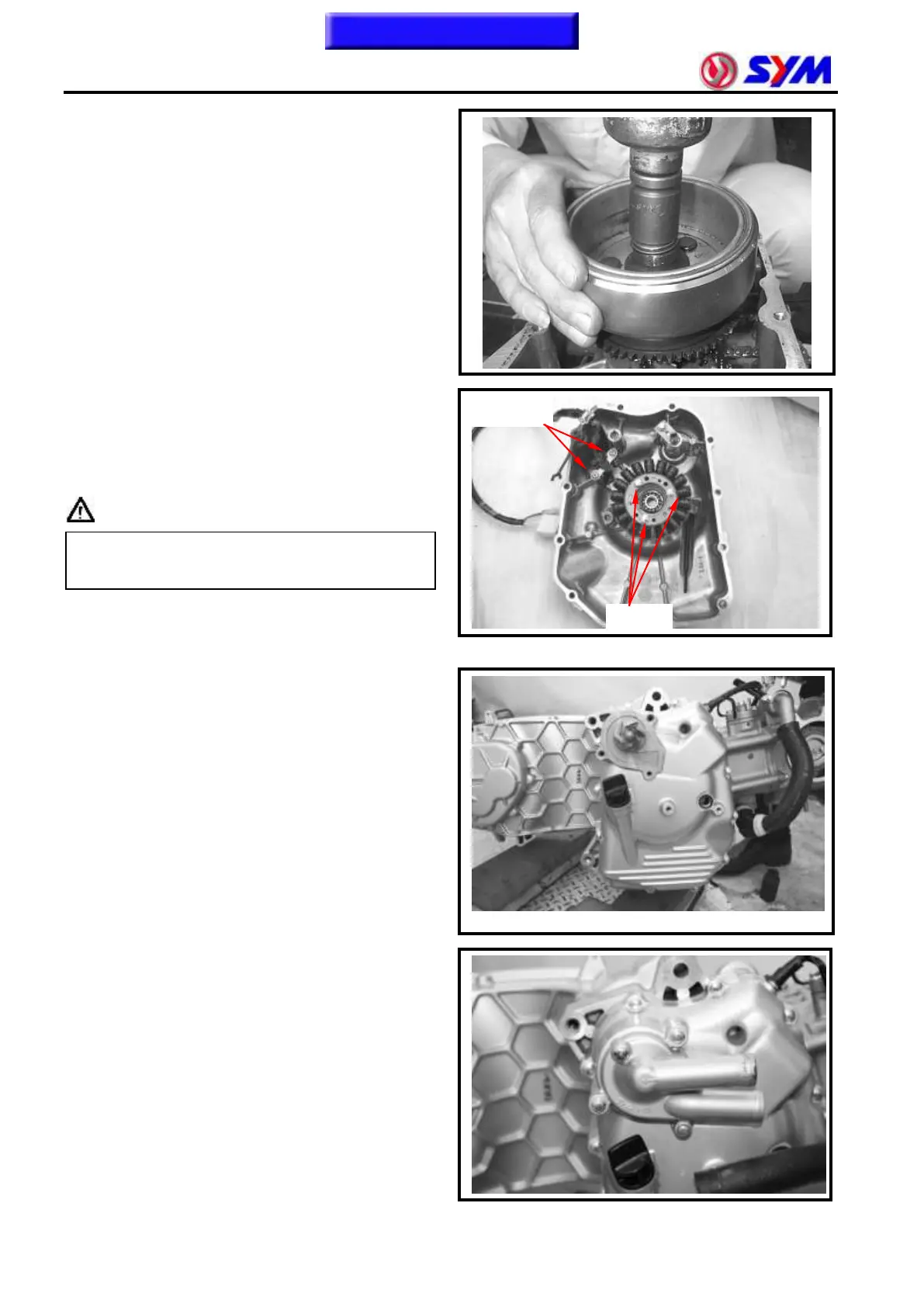

10. AC Generator / Starting Clutch

10-4

Flywheel Installation

Insert the pin onto crankshaft.

Align the key on crankshaft with the flywheel

groove, and then install the flywheel.

Hold the flywheel with flywheel holder, and

tighten its nut.

Torque value: 8.5~10.5 kg-m

Tool:

Flywheel holder

A.C.G. Set Installation

Install the A.C.G. set onto right crankcase cover

(3 bolts).

Install pulse generator (2 screws).

Tie the wire harness securely onto the indent of

crankcase.

Caution

Right Crankcase Cover Installation

Install dowel pin and new gasket.

Install right crankcase cover onto the crankcase.

Note that align the water pump shaft indent with

the oil pump shaft.

Install right crankcase cover (12 bolts).

Connect water hose to the right crankcase

cover.

Install the water pump cover onto crankcase

cover. .

Make sure that the wire harness is placed

under pulse generator.

2 screws

3 bolts
