11. Crankshaft / Crankcase
11-3

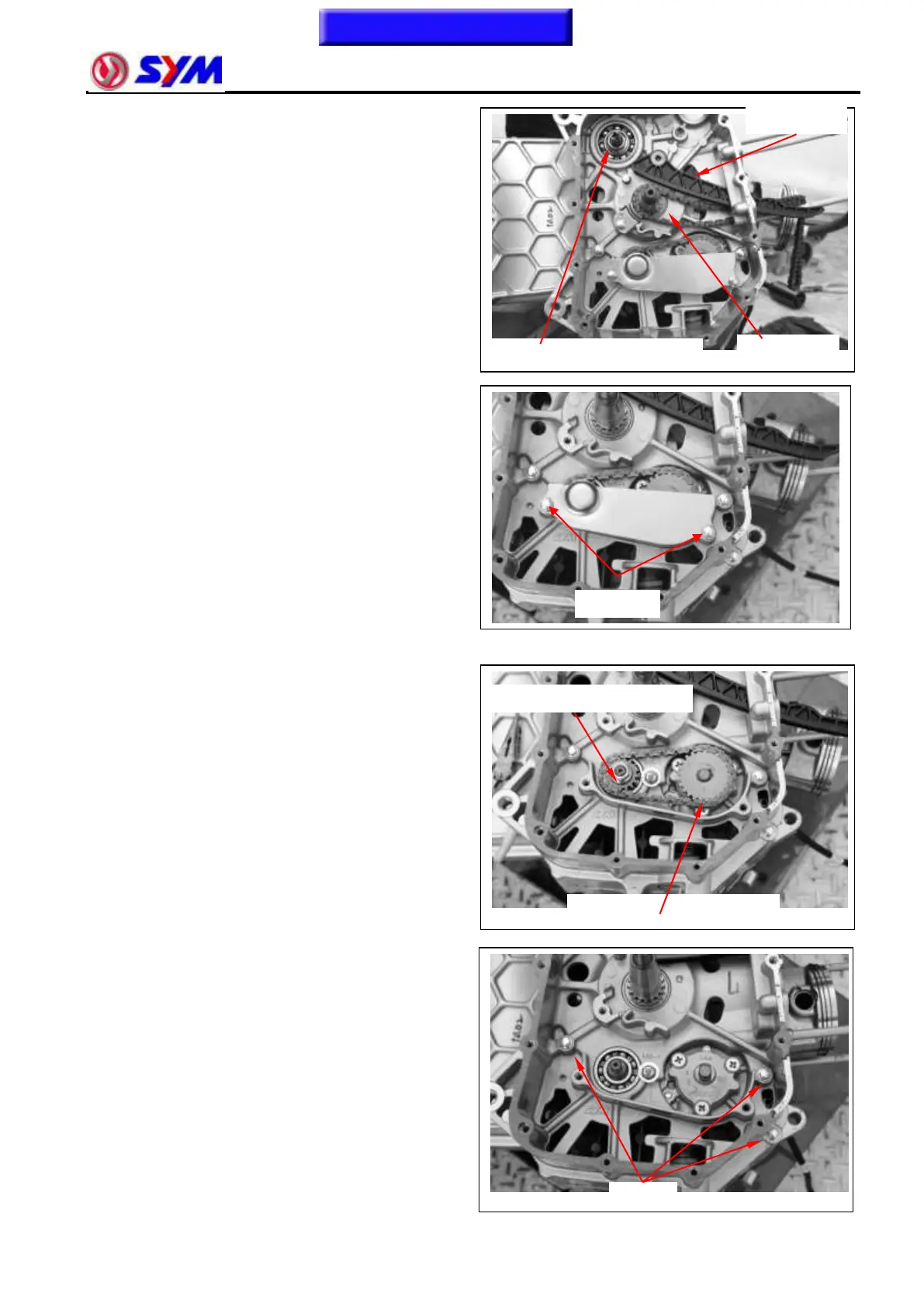

Crankcase Disassembly
Remove the cam chain.
Loosen the bolt and remove the tensioner.
Remove the water pump shaft locknut.
Remove the oil separator (bolt x 2).
Remove the oil pump drive sprocket, driven
sprocket and drive chain.
Remove the right crankcase bolts (bolt x 3).
Oil pump driven sprocket
Bolt x 3
Cam chain
Tensioner
To this chapter contents
boltsX2
Oil pump drive sprocket
Water pump shaft locknut

Sym MAXSYM 400i Specifications

General

Displacement	399 cc
Fuel System	Electronic Fuel Injection
Cooling System	Liquid cooled
Transmission	CVT
Front Suspension	Telescopic fork
Seat Height	800 mm
Weight	215 kg
Tires Front	120/70-15
Tires Rear	160/60-14
Engine Type	Single-cylinder, 4-stroke
Front Brake	Disc
Rear Brake	Disc
Fuel Capacity	13 liters
Rear Suspension	Dual shock absorbers
