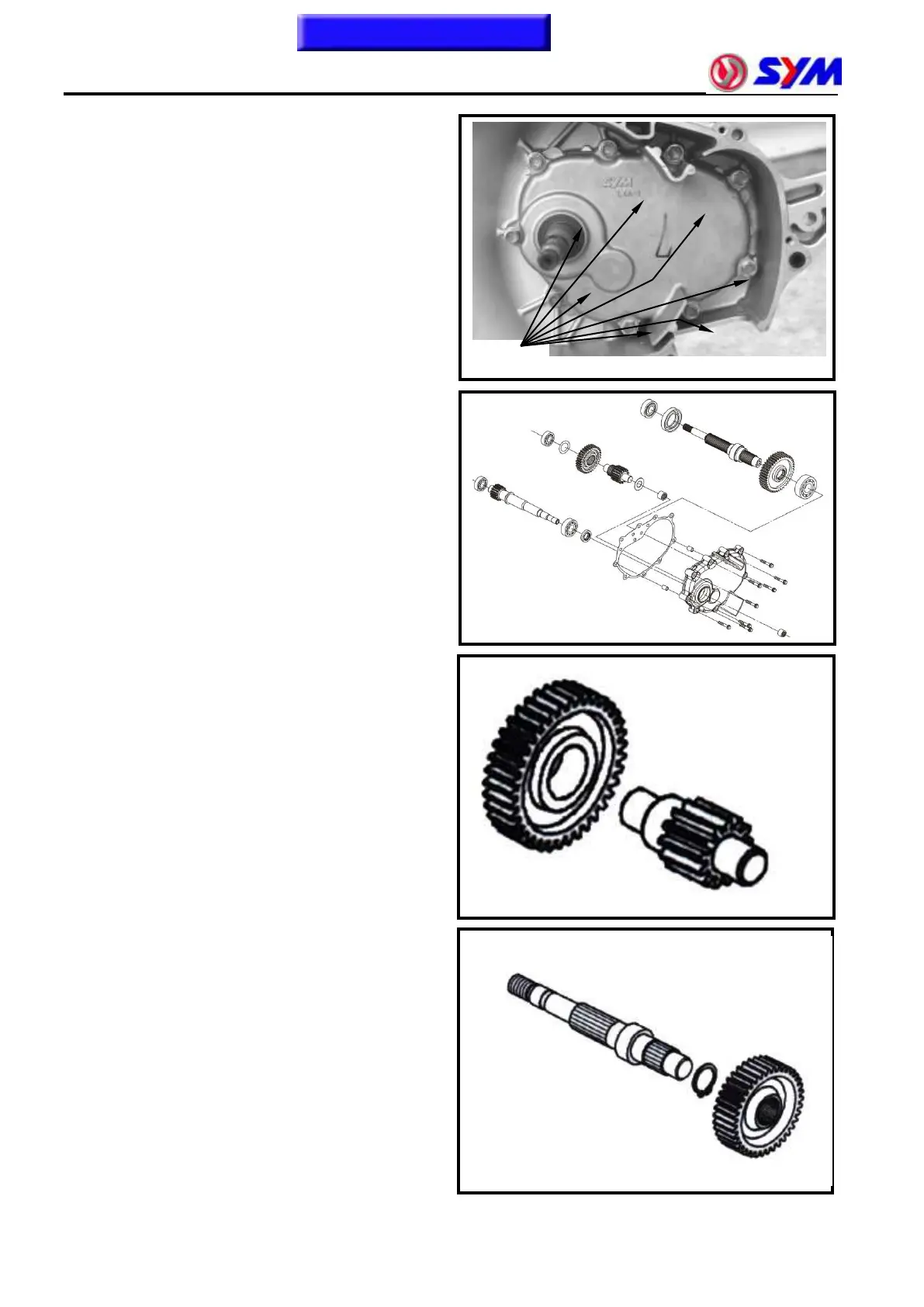

9. Final Drive Mechanism

9-4

Final Drive Mechanism

Disassembly

Remove driven pulley.

Drain gear oil out from gear box.

Remove gear box cover bolts and then remove

the cover.

Remove gasket and dowel pin.

Remove drive shaft.

Remove final driving gear and shaft.

Remove countershaft and gear.

Final Drive Mechanism Inspection

Check if the countershaft is wear or damage.

Check if the final shaft and gear are burn, wear

or damage.

7 bolts
