11. Crankshaft / Crankcase

11-1

Mechanism Diagram ...................... 11-1

Precautions in Operation .............. 11-2

Crankshaft bearing replacement .. 11-5

Crankshaft bearing installation .... 11-5

Troubleshooting ............................. 11-2

Crankcase Disassembly ................ 11-3

Crankcase Assembly ...................... 11-6

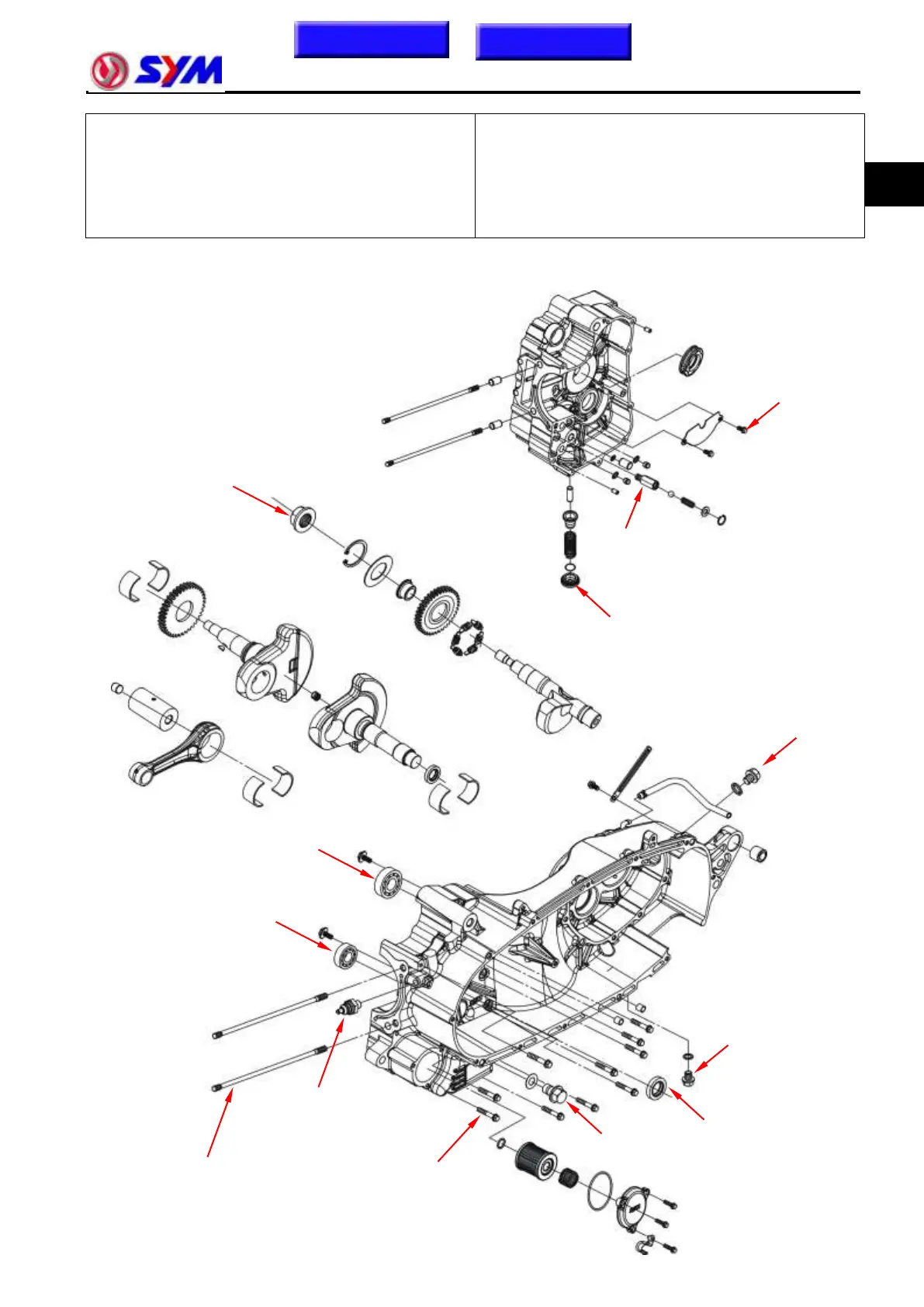

Mechanism Diagram – LX40A

3.5~4.5 kgf-m

1.0~1.4 kgf-m

0.7~1.1 kgf-m

Homepage

Contents

1.0~1.4 kgf-m

1.1~1.5 kgf-m

Radial ball bearing 6301

Radial ball bearing CSB304

Oil seal 35*55*7.5

1.0~1.4 kgf-m

1.0~2.0 kgf-m

2.0~2.4 kgf-m

6.0~7.0 kgf-m

0.7~1.1 kgf-m
