. V-Belt Drive System

8-15

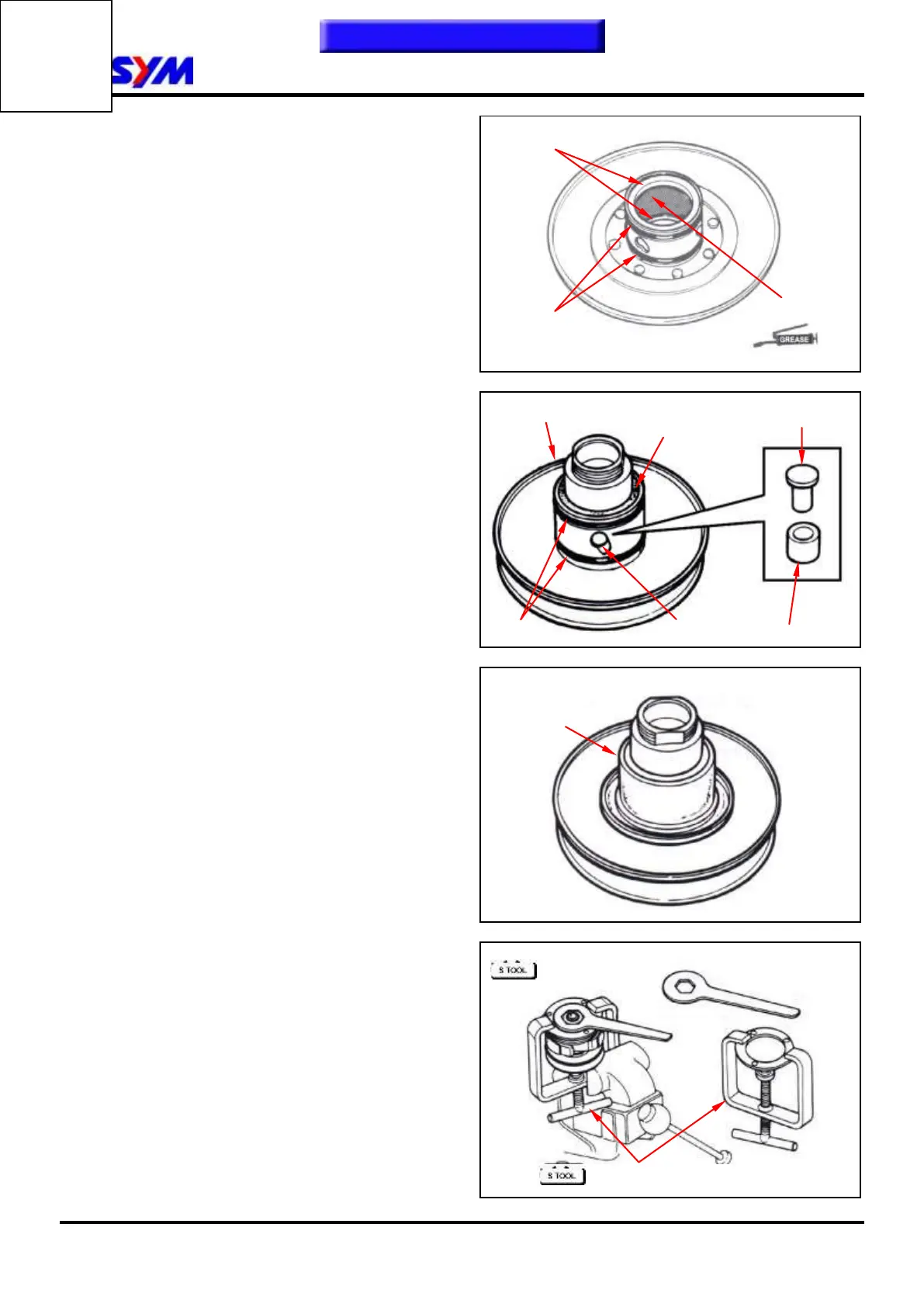

Installation of Clutch Outer/Driven Pulley

Assembly

Install new oil seal and O-ring onto movable driven

face.

Apply with specified grease to lubricate the inside

of movable driven face.

Install the movable driven face onto driven face.

Install the guide pin and guide pin roller.

Install the collar.

Install friction plate, spring and clutch weight into

clutch spring compressor, and press down the

assembly by turning manual lever until mounting

nut that can be installed.

Hold the compressor by bench vise and tighten

the mounting nut to specified torque with clutch

nut wrench.

Remove the clutch spring compressor.

Torque value: 5.0~6.0kgf-m

Install clutch outer/driven pulley and drive belt onto

drive shaft.

Collar

O-ring

Guide pin

Guide pin roller

Guide pin

Oil seal

O-ring

Specified grease

Movable driven face

Clutch spring compressor

Clutch nut wrench
