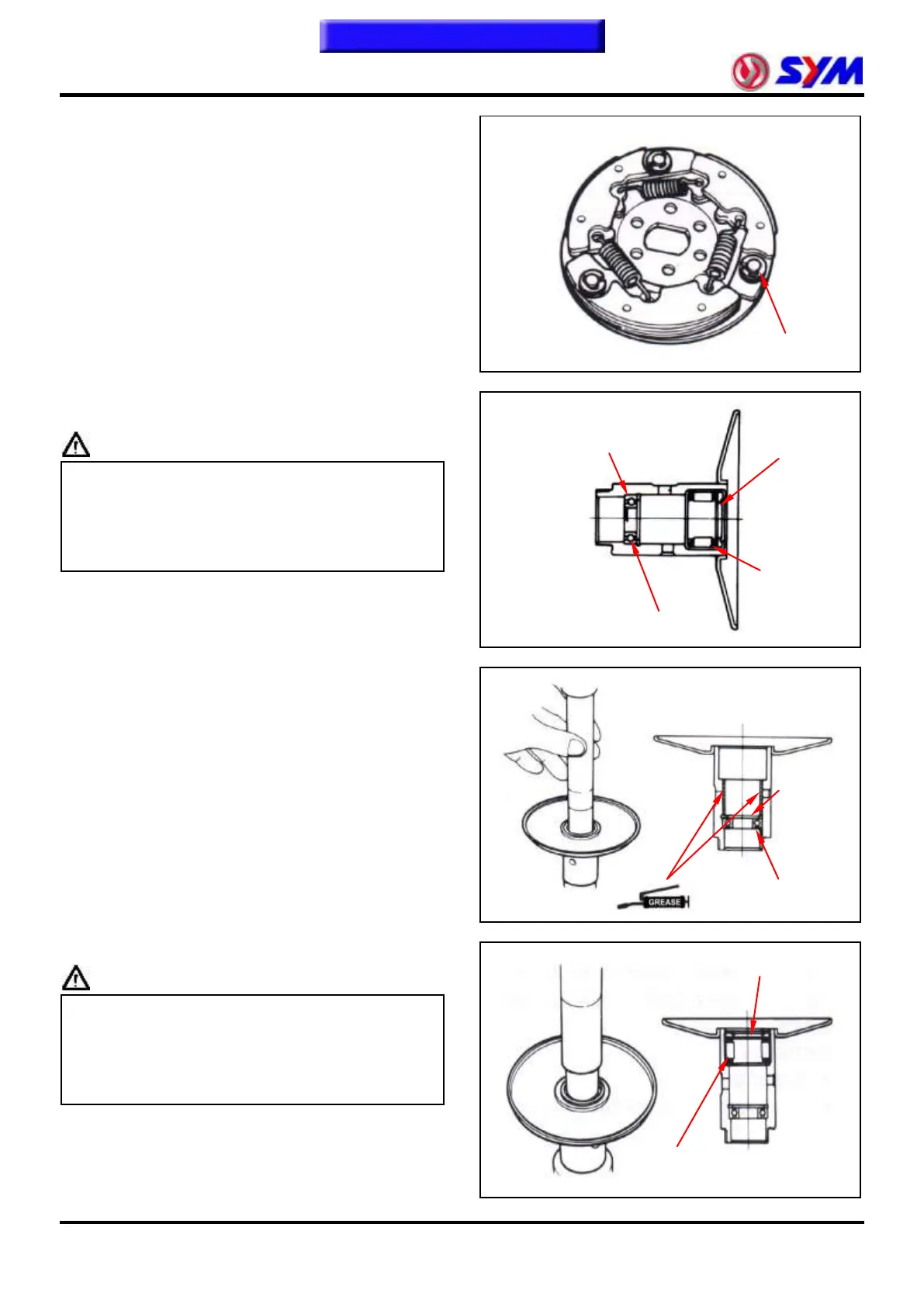

8. V-Belt Drive System

8-14

Install snap ring and mounting plate onto setting

pin.

Replacement of Driven Pulley Bearing

Remove inner bearing.

Caution

 If the inner bearing equipped with oil seal on

side in the driven pulley, then remove the oil

seal firstly.

 If the pulley equipped with ball bearing, it has to

remove snap ring and then the bearing.

Remove snap ring and then push bearing forward

to other side of inner bearing.

Place new bearing onto proper position and its

sealing end should be forwarded to outside.

Apply with specified oil.

Install new inner bearing.

Caution

 Its sealing end should be forwarded to outside

as bearing installation.

 Install needle bearing with hydraulic presser.

Install ball bearing by means of hydraulic

presser.

Install snap ring into the groove of drive face.

Align oil seal lip with bearing, and then install the

new oil seal (if necessary).

Bearing end

Clipper

Outer bearing

Snap ring

Inner needle

bearing

Snap ring

Outer bearing

Snap ring

Inner bearing
