Sym MAXSYM 400i User Manual

17. Electrical System
17-1
Mechanism Diagram ······················ 17-1
Precautions in Operation ··············· 17-2
Specification ································· 17-2
Troubleshooting ··························· 17-3
Battery ········································· 17-4
Fuse ············································ 17-5
Charging System ·························· 17-6
Ignition System ····························· 17-9
Starting System ···························· 17-11
Meter ··········································· 17-13
Light / Bulb ··································· 17-15
Switch / Horn ································ 17-17
Fuel Unit ······································ 17-19
Cooling Fan Thermo Switch ··········· 17-20
Thermo Unit ································· 17-21
Water Temperature Meter ··············· 17-21

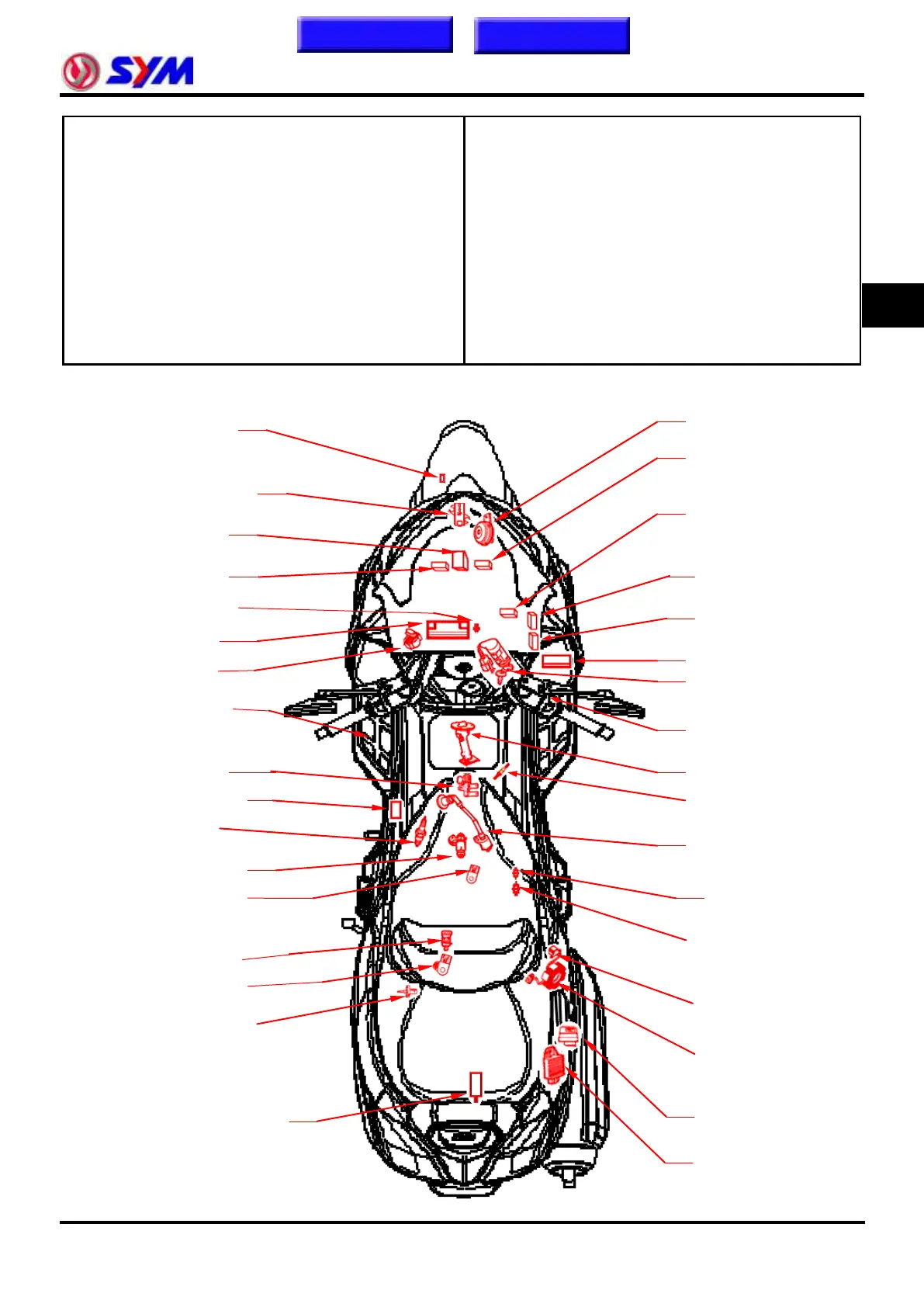

Mechanism Diagram
Home page
Contents
Winker & Hazard
control unit
Spark plug
A.C. Generator
Fuse box
Battery
Ignition coil
Main switch
Reg. Rec.
Start relay
Fuel pump / fuel unit
Horn
Passing / Beam / Winker /
Horn / Seat open switch
Headlight hi-beam relay
Start / Headlight /
Engine stop switch
TA Sensor
Thermo unit
Power relay
Key relay
Engine stop relay
Headlight lo-beam relay
Speed sensor
Thermo switch
(Cooling fan)
Side stand switch
Fuel injector
TPS
17
ECU
CPS
TW Sensor
O2 Sensor
AISV
MAP Sensor
ISC
Seat open linear motor
Rollover sensor

Sym MAXSYM 400i Specifications

General

Displacement	399 cc
Fuel System	Electronic Fuel Injection
Cooling System	Liquid cooled
Transmission	CVT
Front Suspension	Telescopic fork
Seat Height	800 mm
Weight	215 kg
Tires Front	120/70-15
Tires Rear	160/60-14
Engine Type	Single-cylinder, 4-stroke
Front Brake	Disc
Rear Brake	Disc
Fuel Capacity	13 liters
Rear Suspension	Dual shock absorbers
