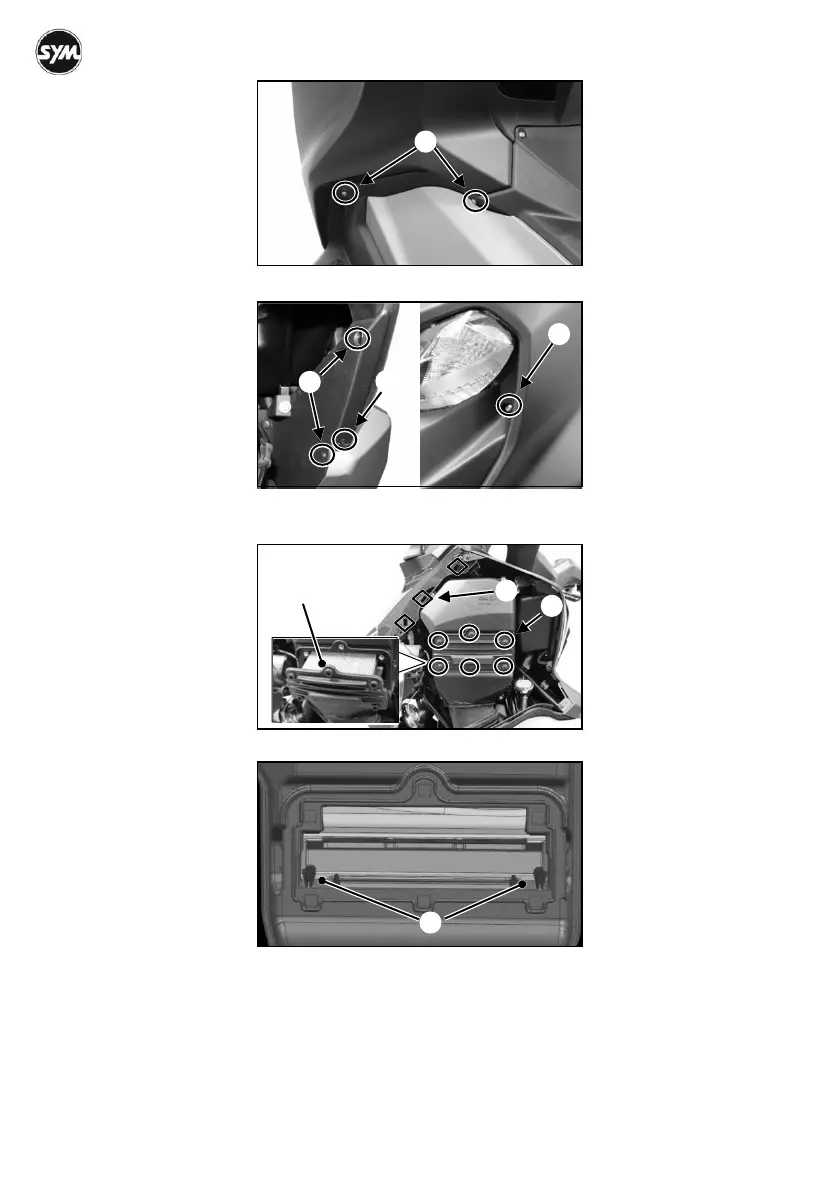

 Remove the 2 screws ○A and the 2 plastic nuts ○B .
 Carefully pull the front left cover outward, take care of the 3 tenons ○A .
 Remove the 5 screws ○B to remove the air cleaner element ○C .
 Clean the dust groove ○A with a wet cloth after removing the air cleaner element.
 If the air cleaner element is damaged or too dirty, have it changed by a SYM authorized dealer.
 To install the element, do in the reverse order of the above instructions.
This scooter is equipped with 2 V-belt air cleaner elements. Have the v-belt air cleaner elements inspected
or replaced by an authorized SYM dealer.
