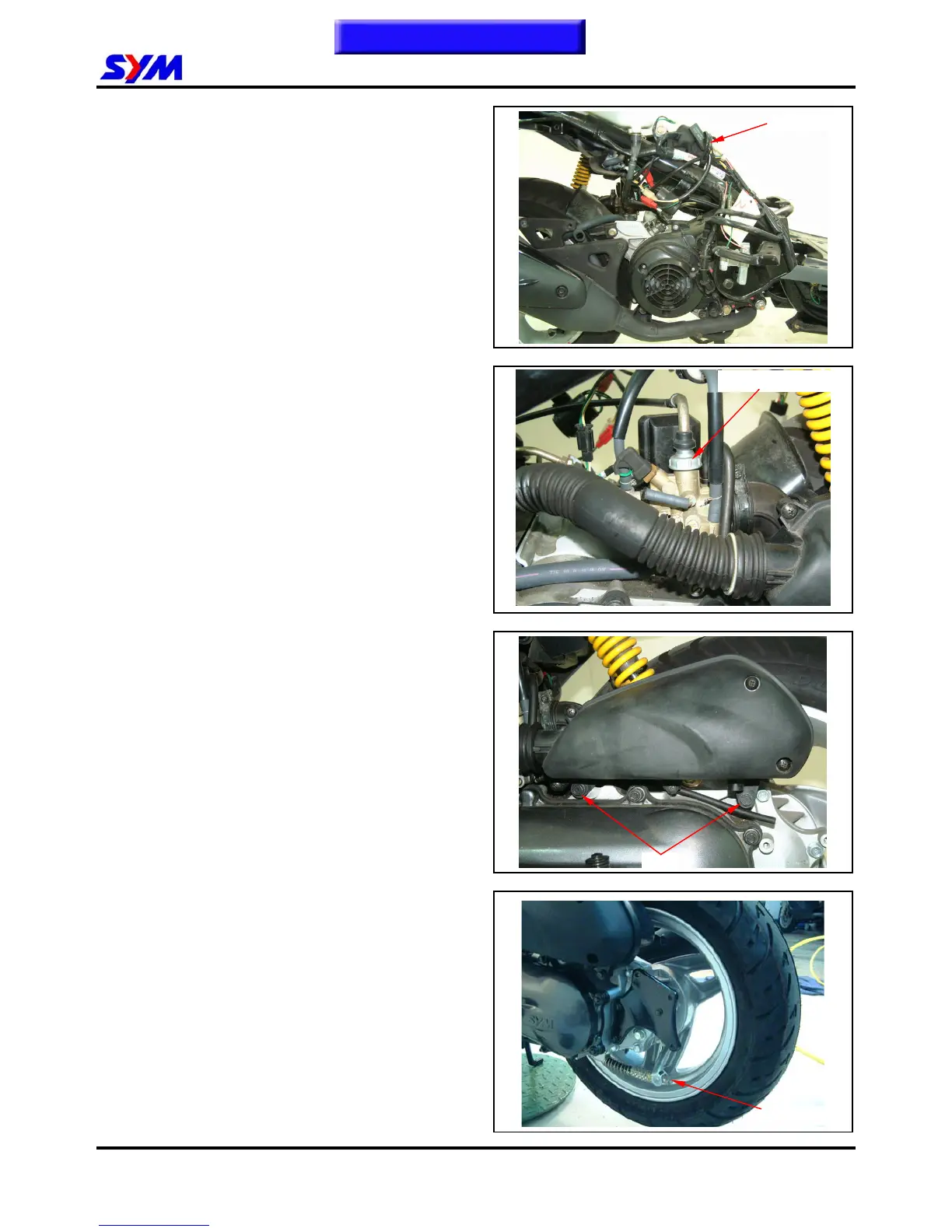

4. ENGINE REMOVAL
4-3
Remove the wire couplers of auto by-starter and
ACG.
Remove the upper parts of the carburetor from its
upper side.
Remove air cleaner mounting bolts. (2 bolts)
Remove rear brake cable from engine rear-lower
side.
Carb. Upper parts
Bolts
Couplers
Brake cable
