PCIe IP Prototyping Kit Installation Guide Setting Up Hardware Components

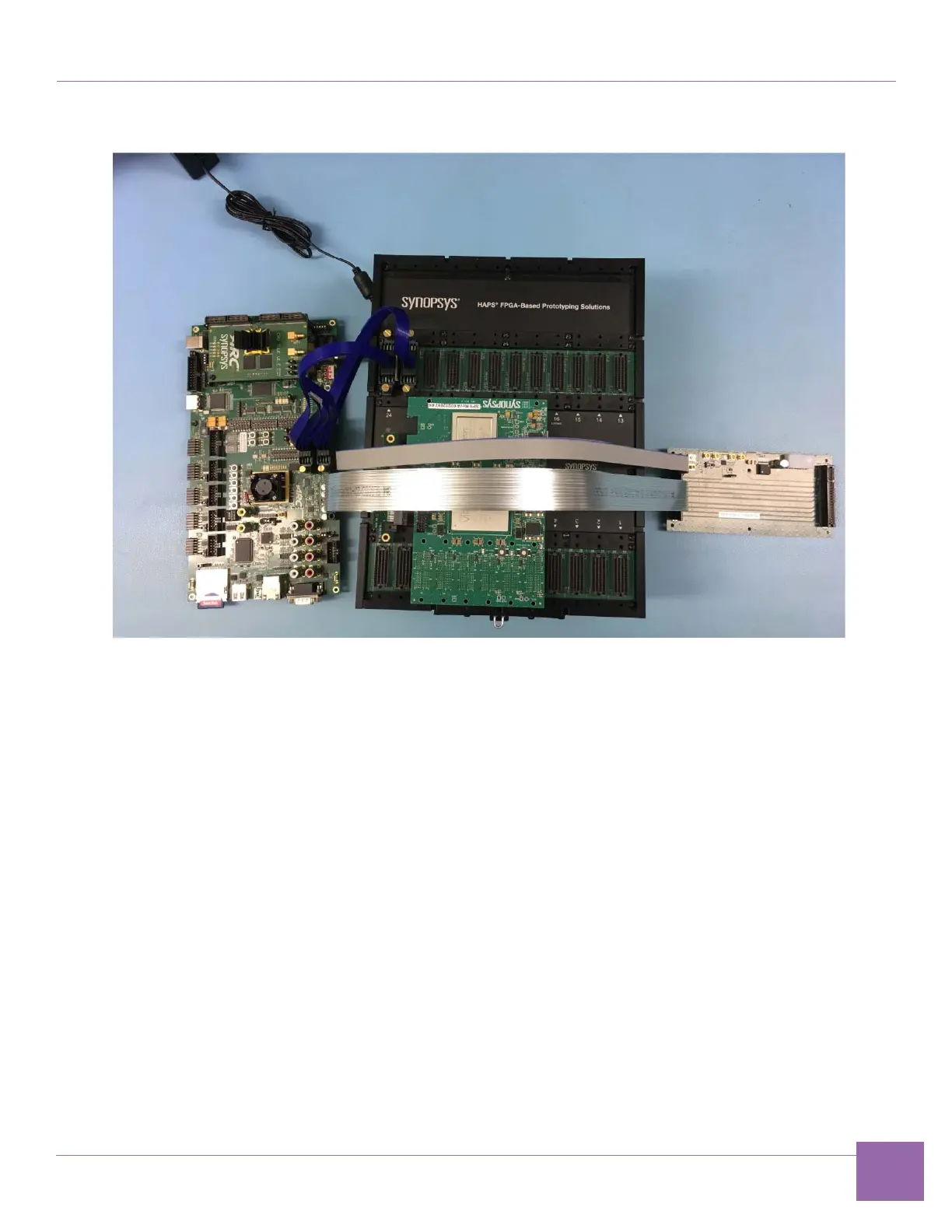

Figure 1-14 PCIe Root Complex IP Prototyping Kit Setup Using a C10 PHY Board and HAPS-80
If you are using the Synopsys PHY board, connect the Synopsys PHY board to the PCIe Root Complex slot
of the PCIe Backplane board.
Figure 1-15 illustrates the assembled PCIe Root Complex IP Prototyping Kit using the E16 PHY Board.
