Setting Up Hardware Components PCIe IP Prototyping Kit Installation Guide

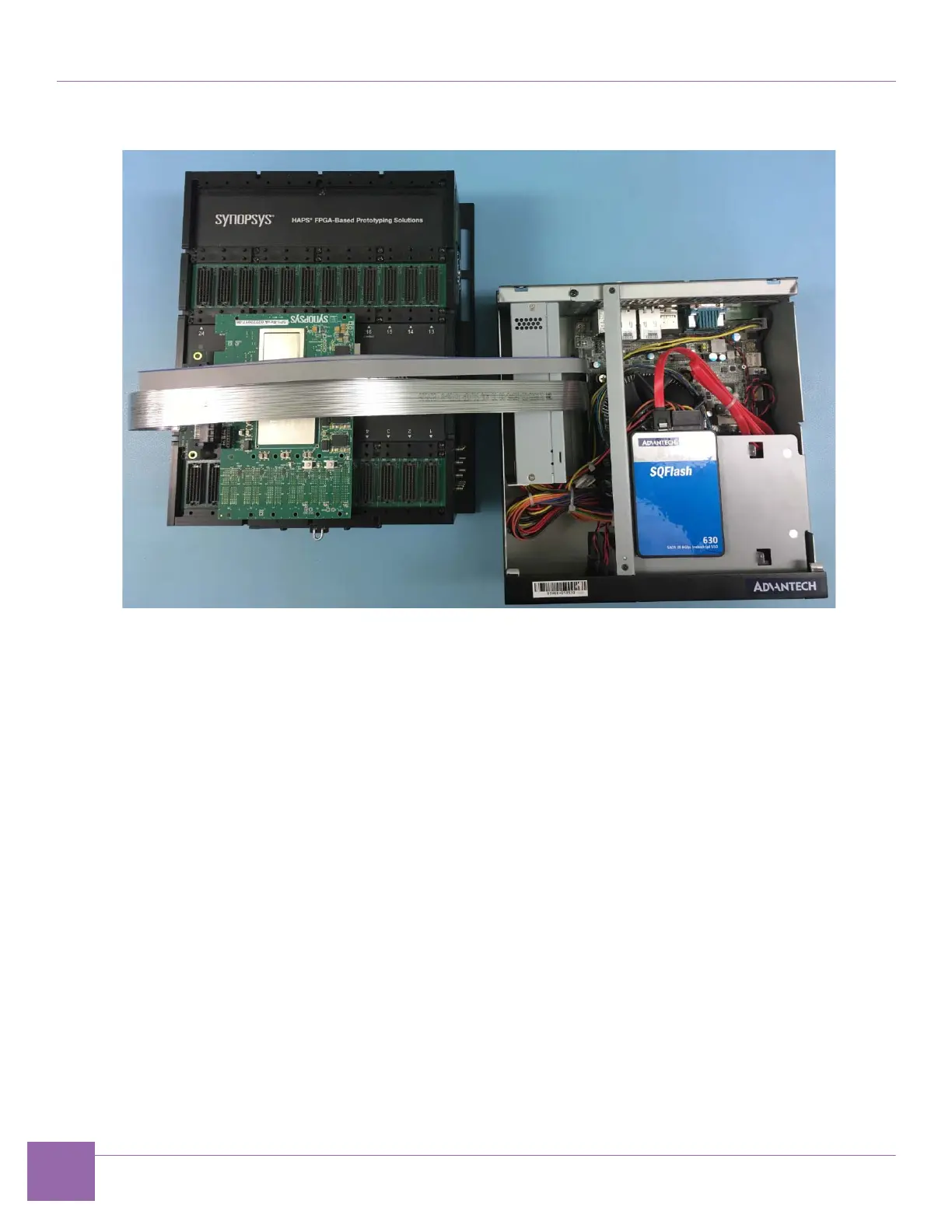

Figure 1-18 PCIe Gen3 Endpoint IP Prototyping Kit Setup Using a Synopsys C10 PHY
Figure 1-19 illustrates the assembled PCIe Endpoint IP Prototyping Kit using the E16 PHY.
Figure 1-20 illustrates the assembled PCIe Endpoint IP Prototyping Kit using the Xilinx PHY.
